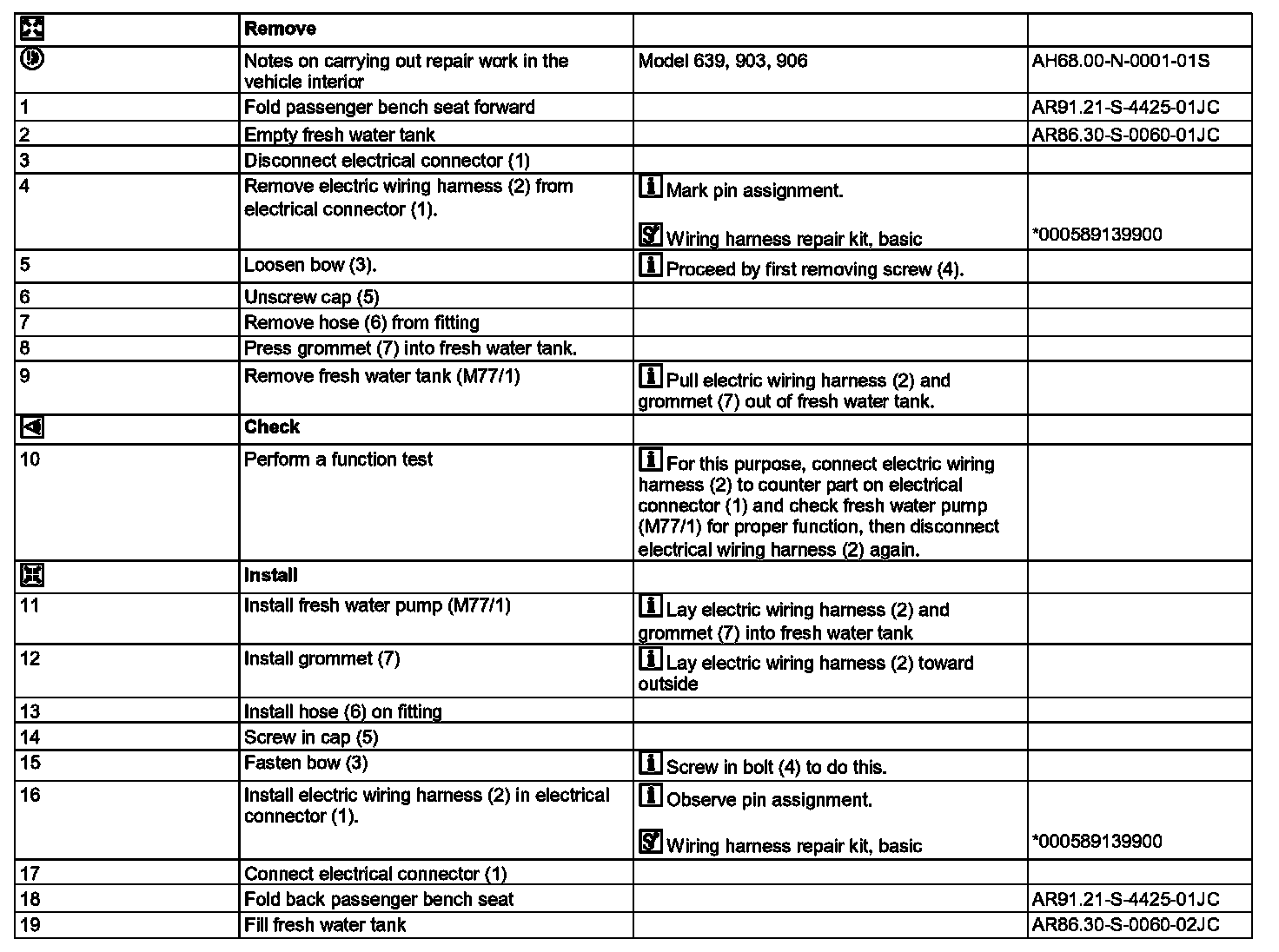

AR86.30-S-0062JC Remove/Install Water Pump In Fresh Water Tank

AR86.30-S-0062JC Remove/Install Water Pump In Fresh Water Tank

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic

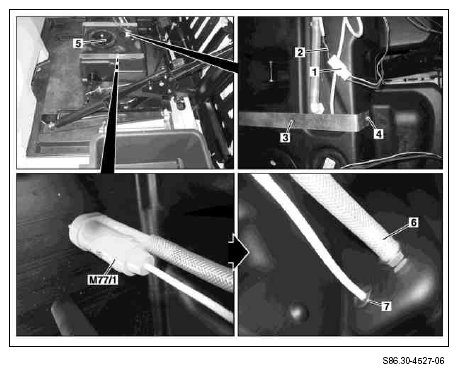

1 Electrical connector
2 Wiring harness
3 Bow
4 Bolt
5 Cover
6 Hose
7 Grommet
M77/1 Fresh water pump







000 589 13 99 00, Wiring harness repair kit, basic
