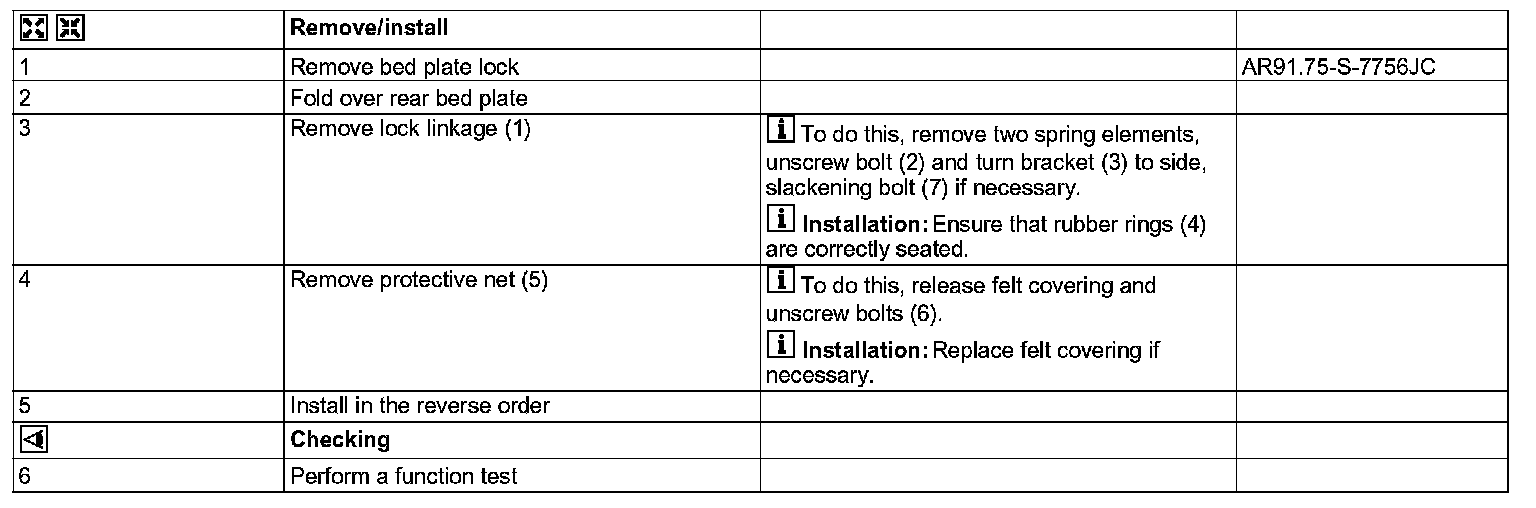

AR91.75-S-7730JC Remove/Install Safety Net
AR91.75-S-7730JC Remove/Install Safety Net
AR91.75-S-7730JC Remove/Install Safety Net
-

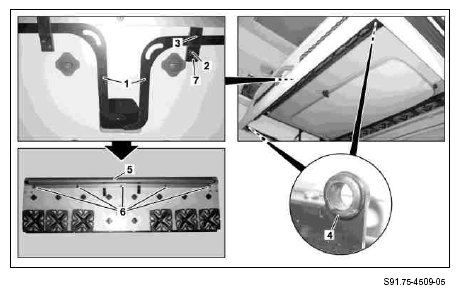

with CODE (ZO2) Camper James Cook Classic
1
Lock linkage
2
Screw
3
Bracket
4
Rubber rings
5
Protective net
6
Bolts
7
Screw
