Auxiliary Step / Running Board: Service and Repair

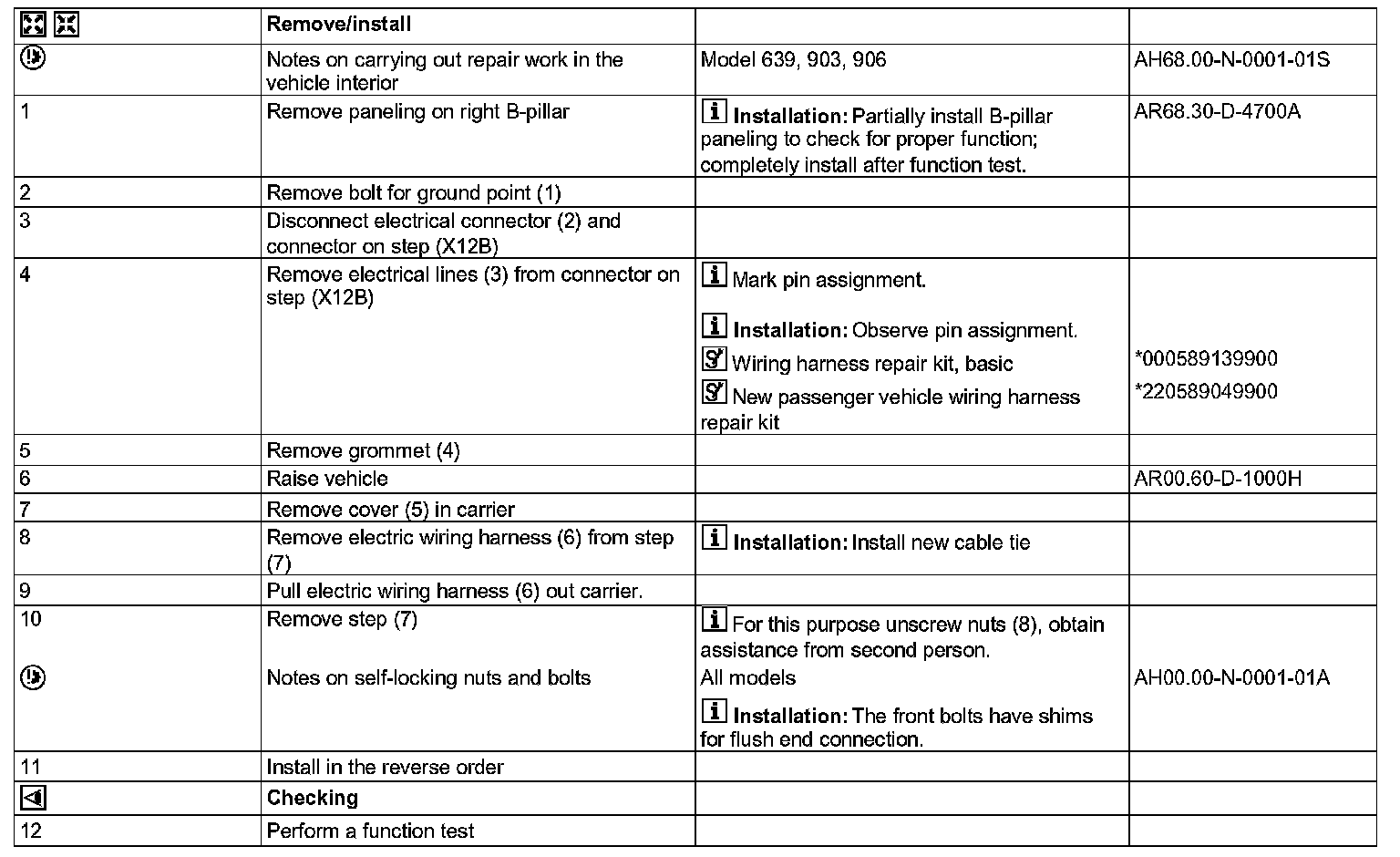

AR88.30-S-8500JC Remove/Install Power Step

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic

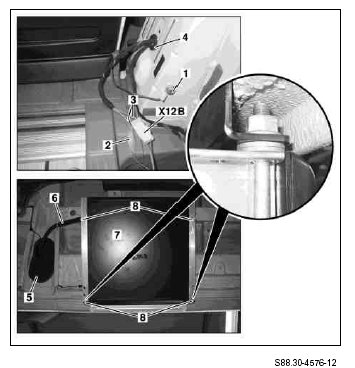

1 Ground point
2 Electrical connector
3 Electrical line
4 Grommet
5 Cover
6 Wiring harness
7 Step
8 Nuts
X12B Step connector







000 589 13 99 00, Wiring harness repair kit, basic







220 589 04 99 00, New passenger vehicle wiring harness repair kit
