Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Panel (906.657) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Specifications

Compressor HVAC: Specifications

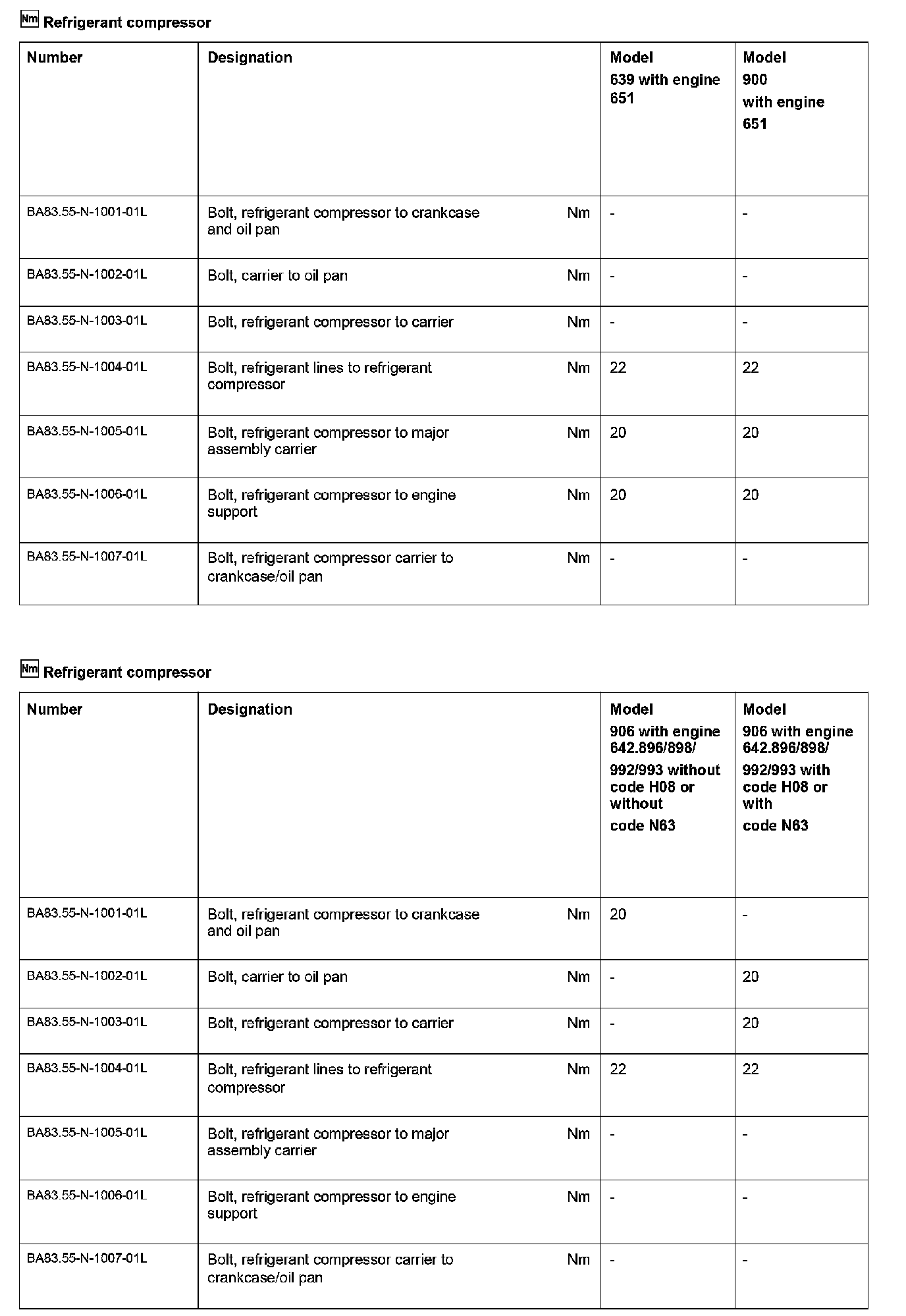

BA83.55-N-1000-01L Refrigerant Compressor
