Home >> Mercedes Benz Truck >> 2011 >> GLK 350 4MATIC (204.987) V6-3.5L (272.971) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Service and Repair >> Removal and Replacement

Removal and Replacement



AR82.60-P-1030CY Remove/Install Media Interface Control Unit
- with CODE (518) Media interface

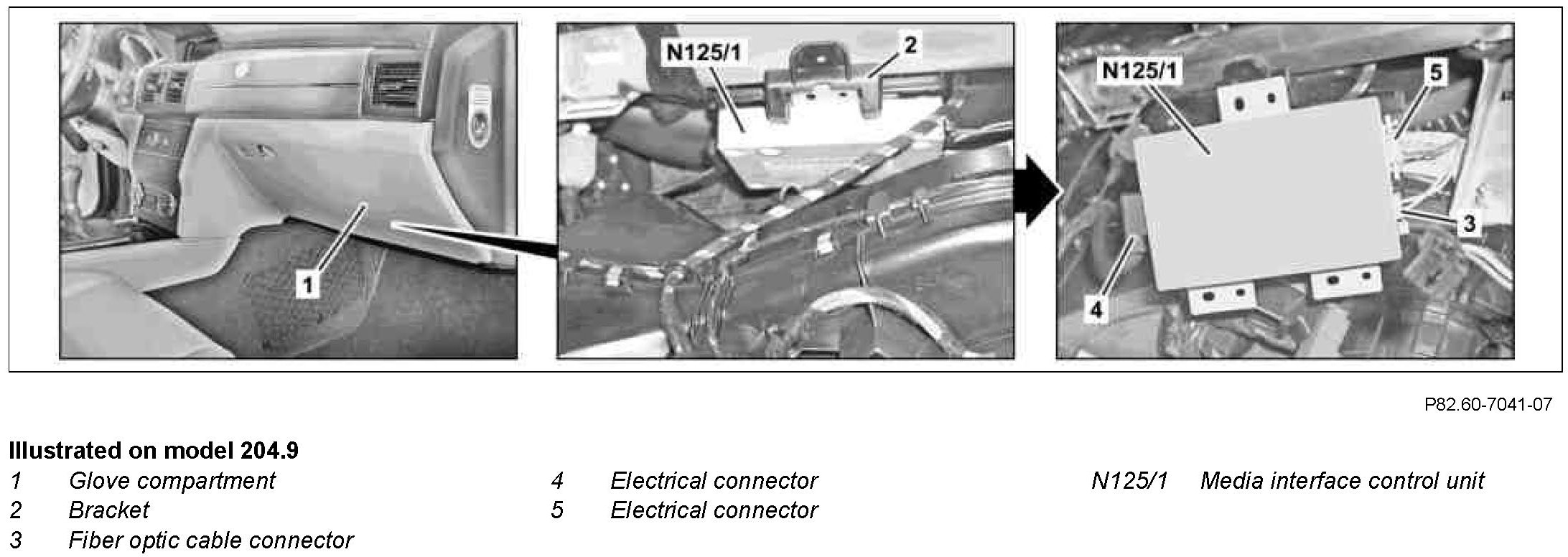

Component Identification:






Steps 1 - 6:
