Grille: Service and Repair

AR88.40-P-4001CY Remove/install Radiator Grille


Shown with engine 642

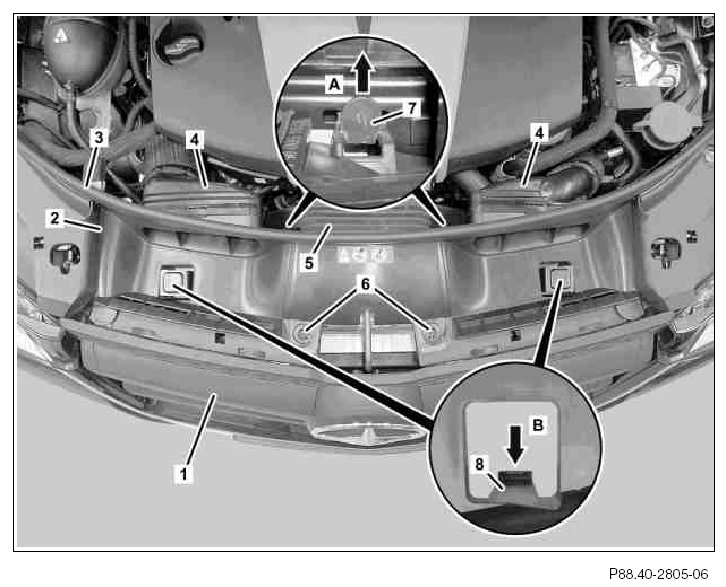

1 Radiator grille
2 Cold air intake crossmember
3 Frame seal
4 Air intake duct
5 Engine cover air ducting (with engine 642)
6 Quick-release fittings
7 Catch hook
8 Catch hook

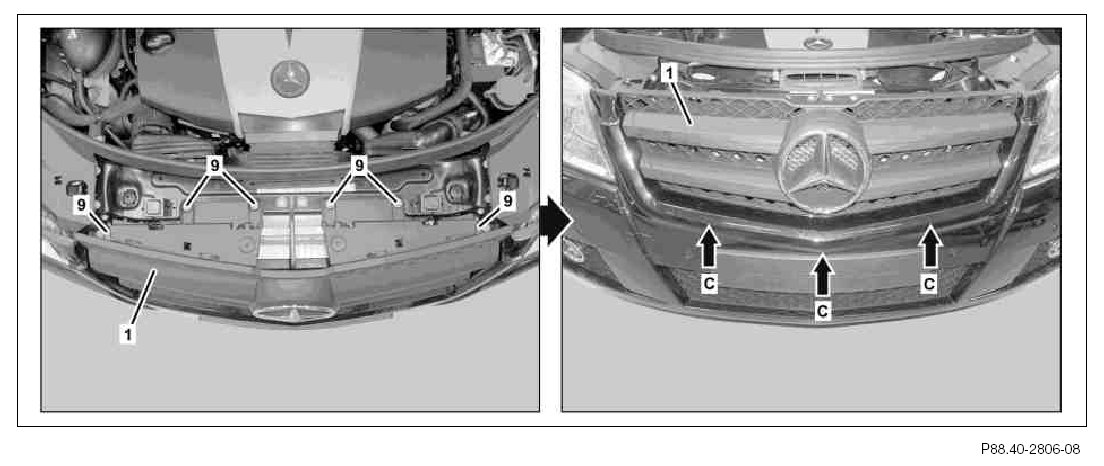

1 Radiator grille
9 Bolts
