Daytime Running Lamp: Service and Repair

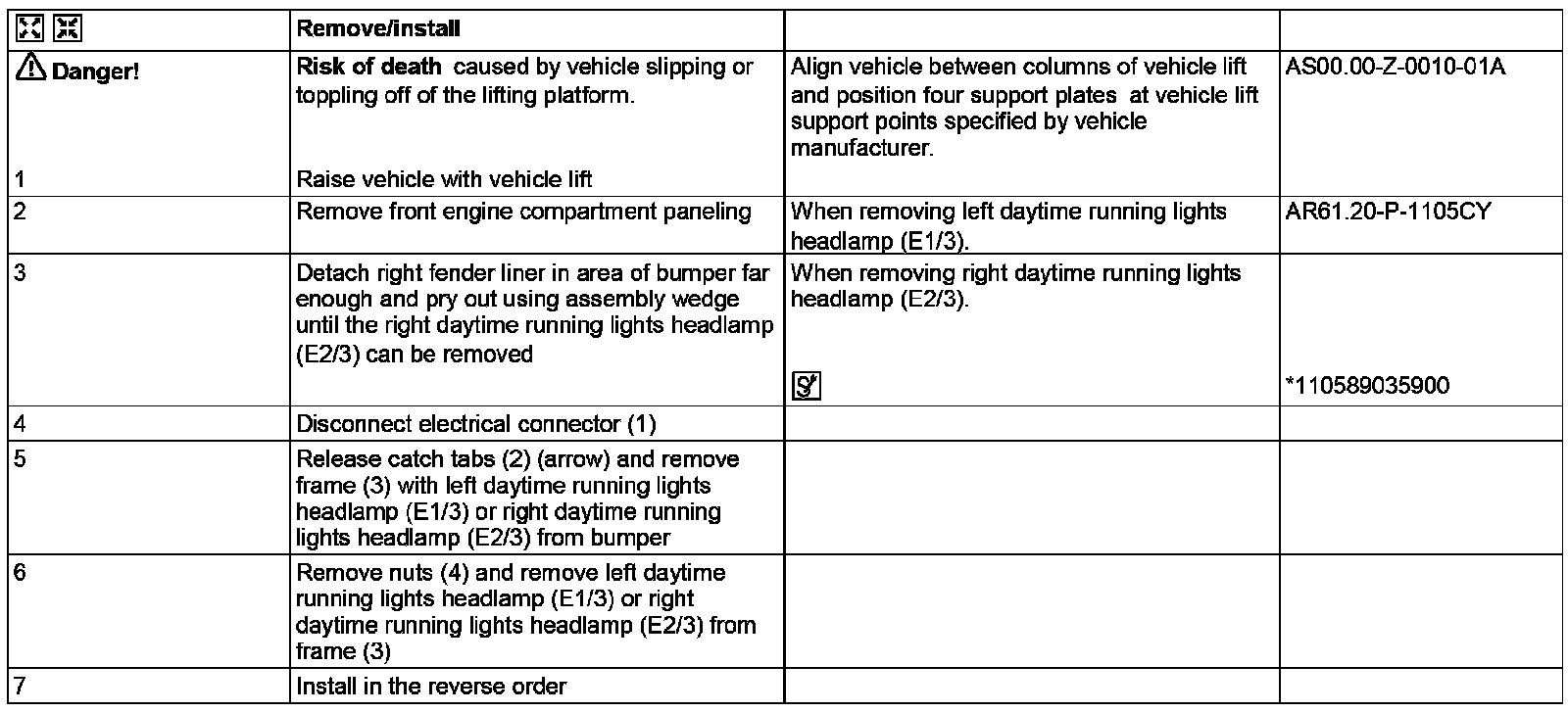

AR82.10-P-2300CX Removing And Installing Headlamp For Daytime Running Light
- MODEL 204.9
- with CODE (236) Daytime running lights in LED design






1 Electrical connector
2 Catch lug
3 Frame
4 Nut
E1/3 Left daytime running lamps headlamp
E2/3 Right daytime running lamps headlamp











110 589 03 59 00, Mounting wedge
