GF07.61-P-0001-15MIG (ME-SFI) Motor Electronics Fuel Injection and Ignition System, Location of Components on Vehicle



GF07.61-P-0001-15MIG (ME-SFI) Motor Electronics Fuel Injection And Ignition System, Location Of Components On Vehicle
- as of model year 09

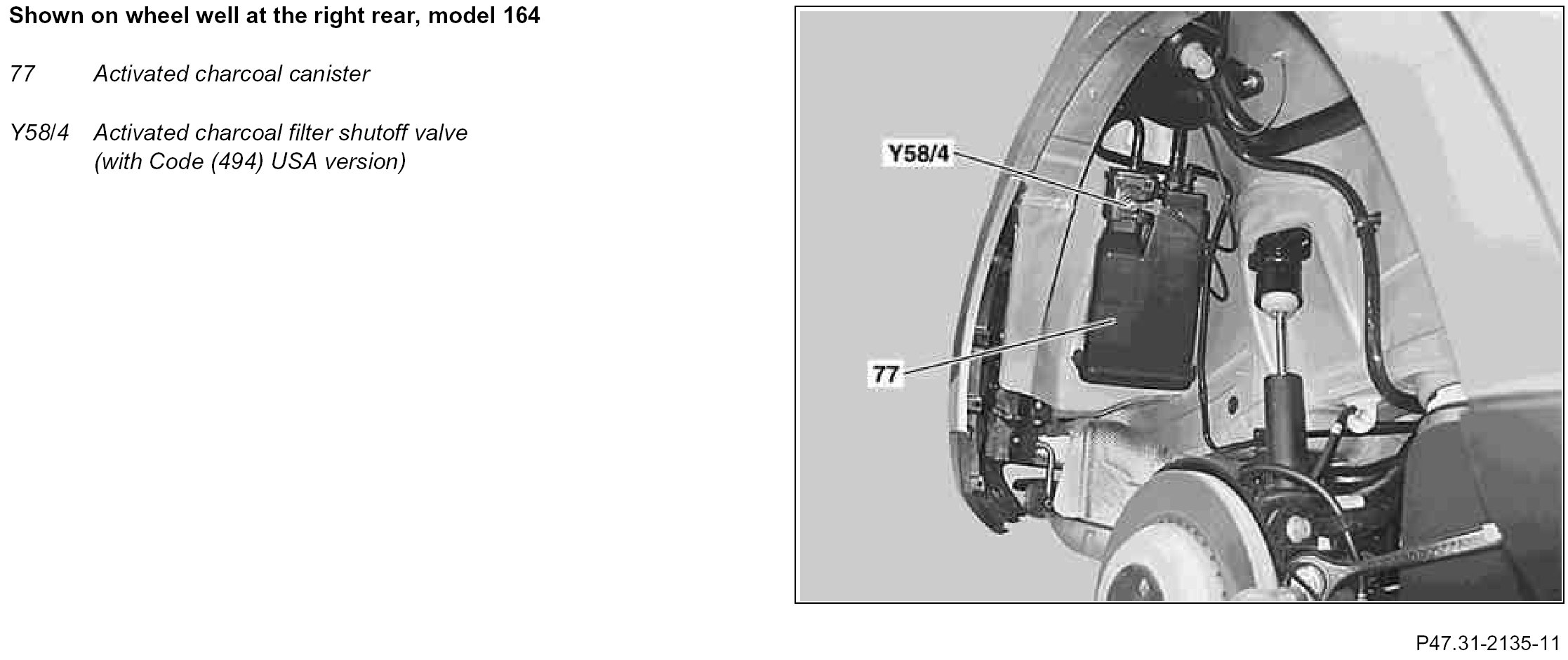

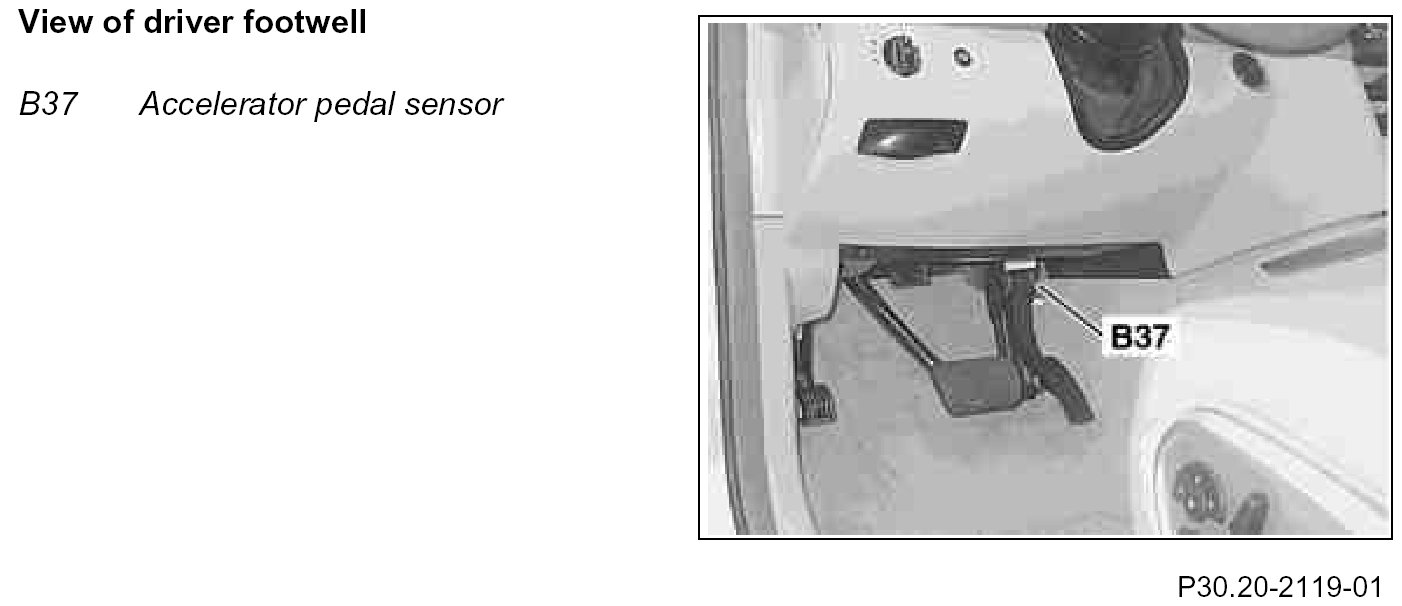

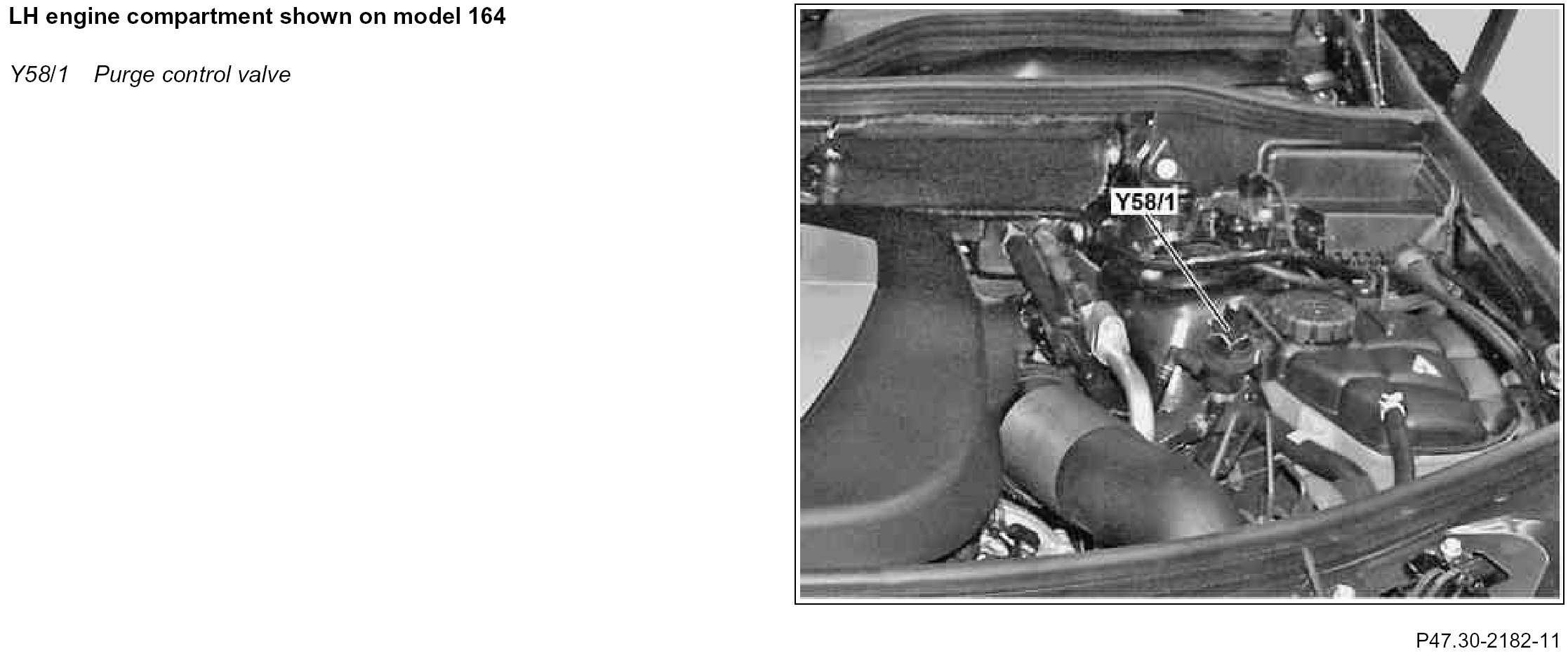

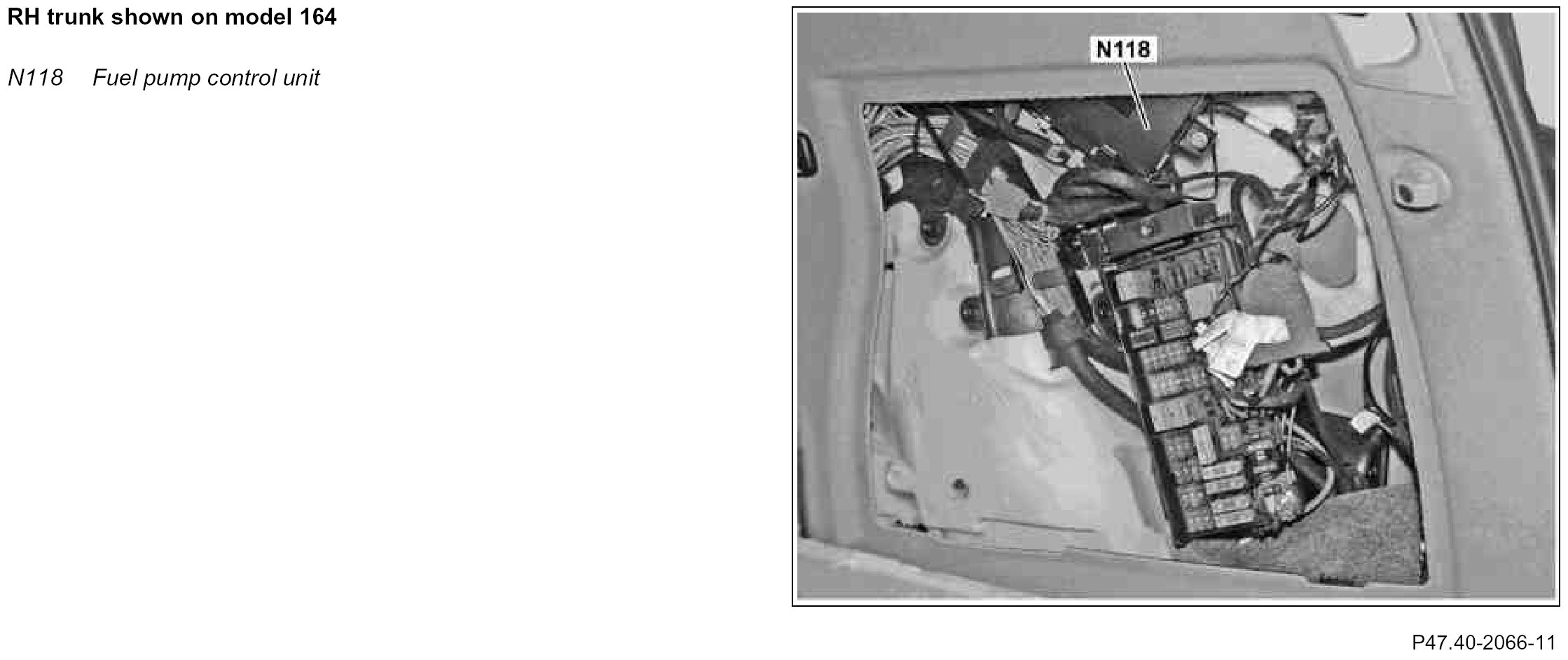

Component Identification:





Component Identification:





Component Identification:





Component Identification:





Component Identification:





Component Identification:





Component Identification:





Component Identification:
