Expansion Valve: Service and Repair
AR83.30-P-5520GZ Remove/Install Expansion Valve
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

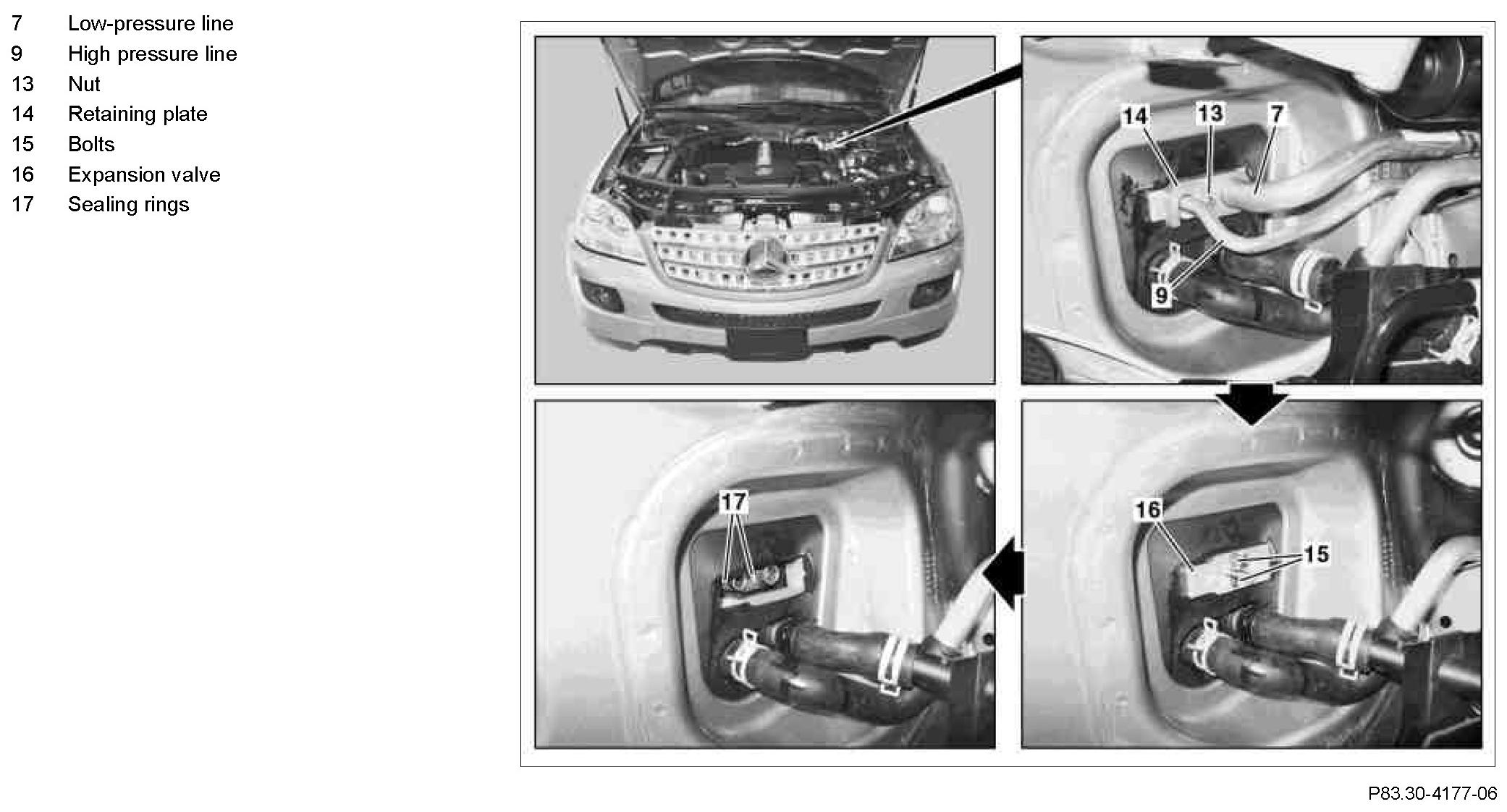

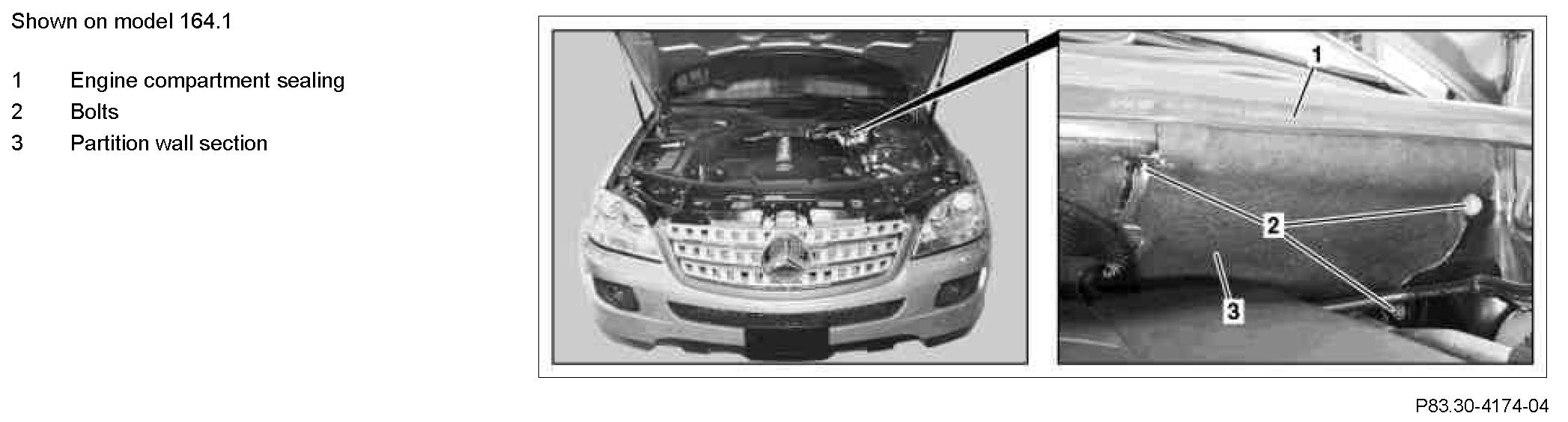

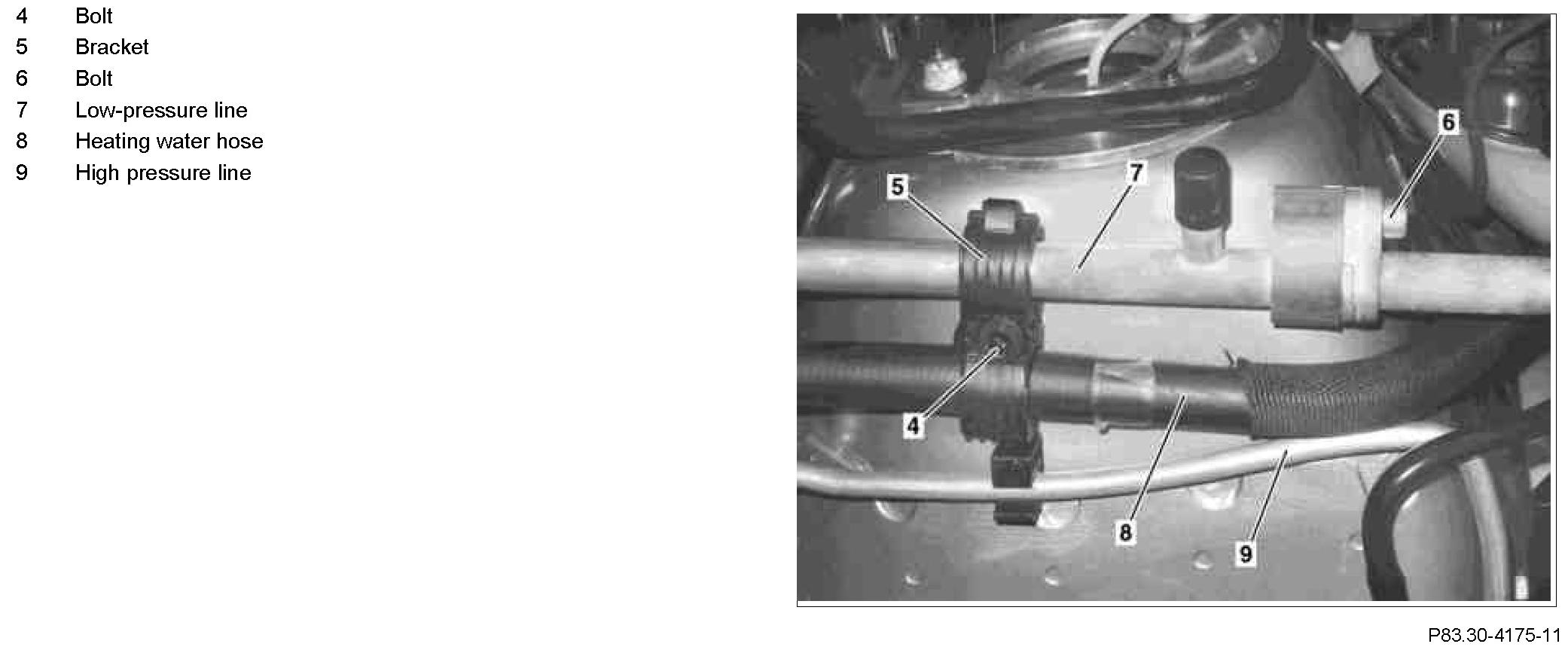

Component Identification:
Component Identification:
Component Identification:
Component Identification:

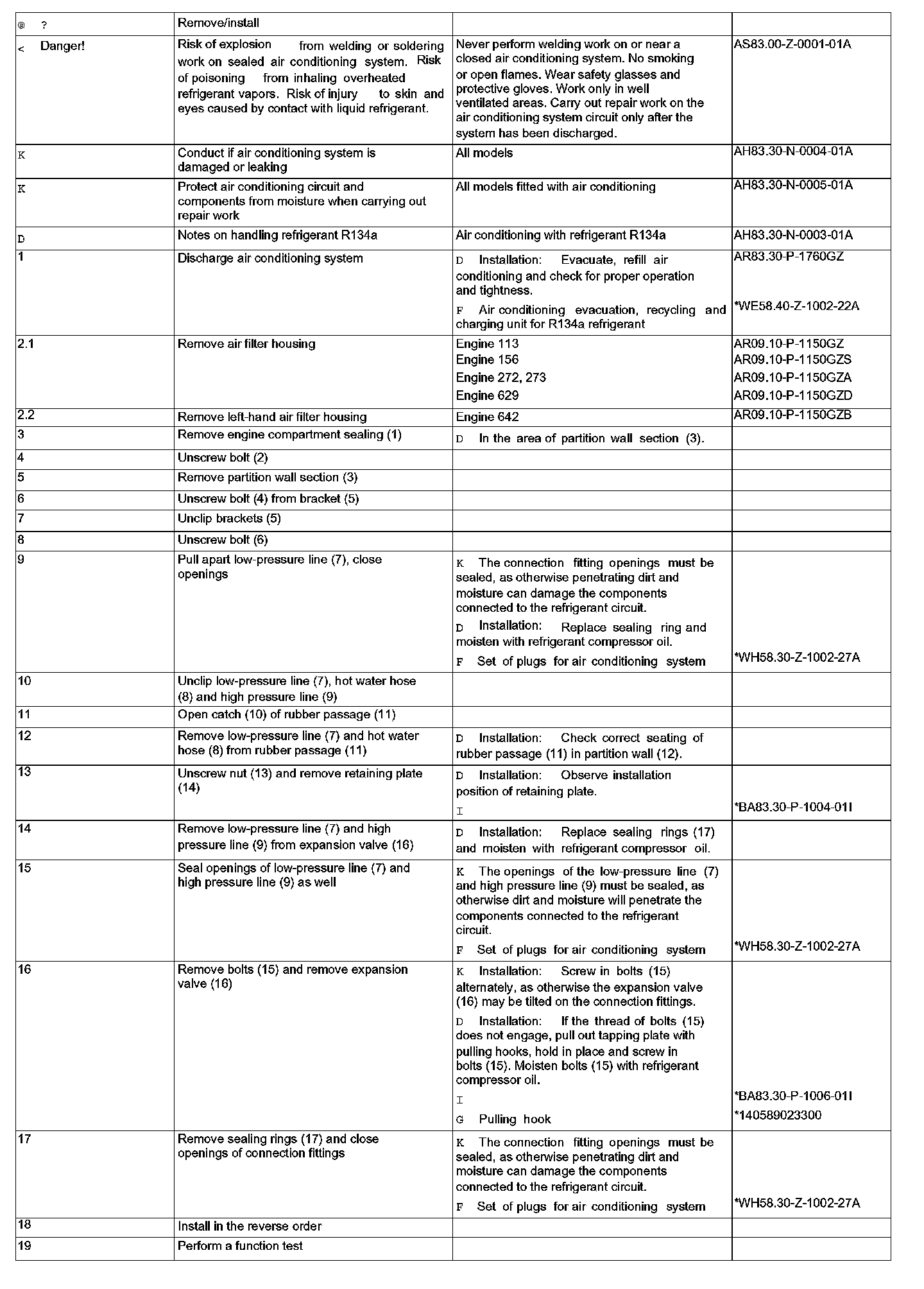

Steps 1 - 19:

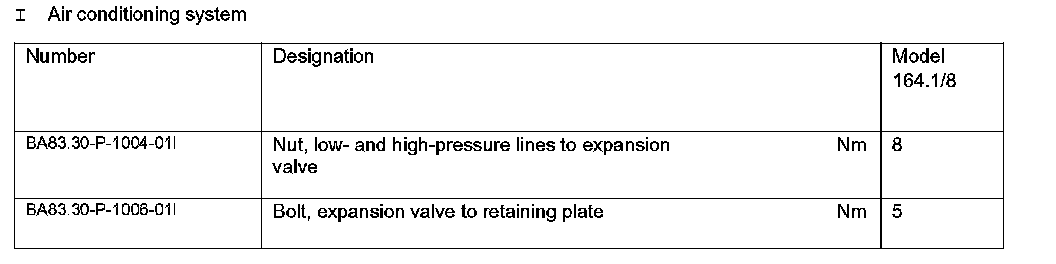

Air Conditioning System:

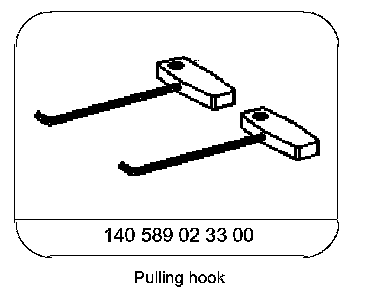

Special Tools:
Commercially Available Tools:
Workshop Equipment:
