Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2011
>>
ML 350 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Testing and Inspection
Drive Belt: Testing and Inspection

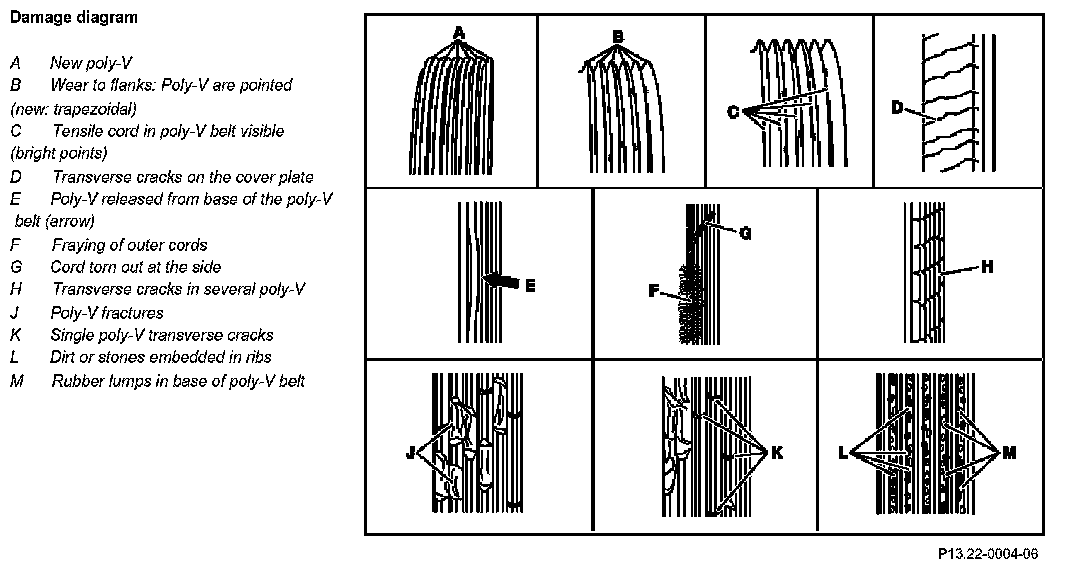

AP13.22-P-1352GZD Check Visible Area Of Poly-V Belt For Wear

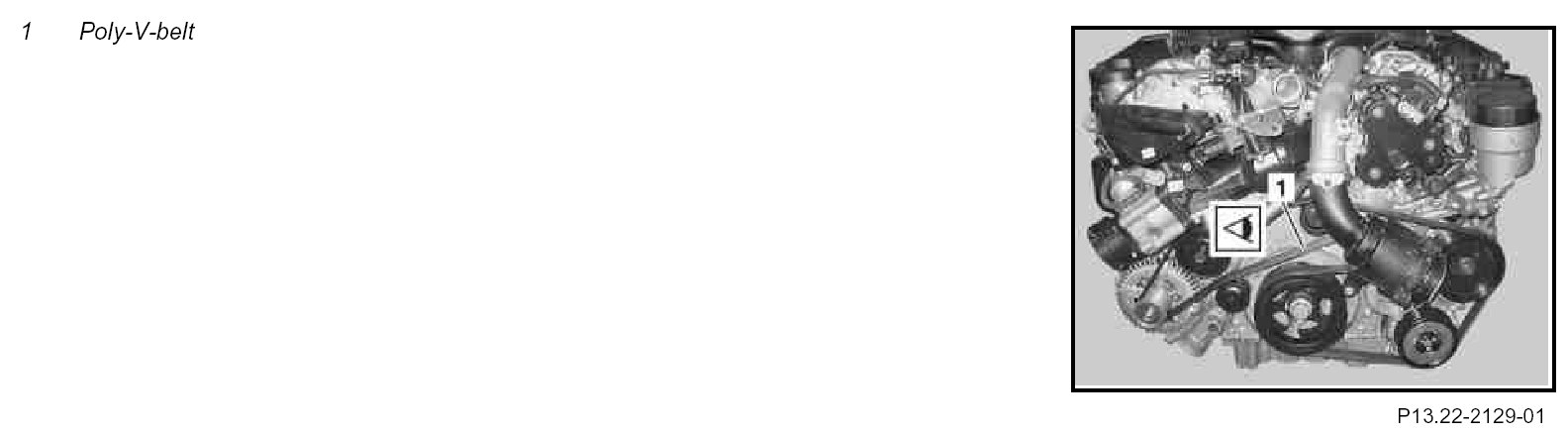

Component Identification:
Component Identification:

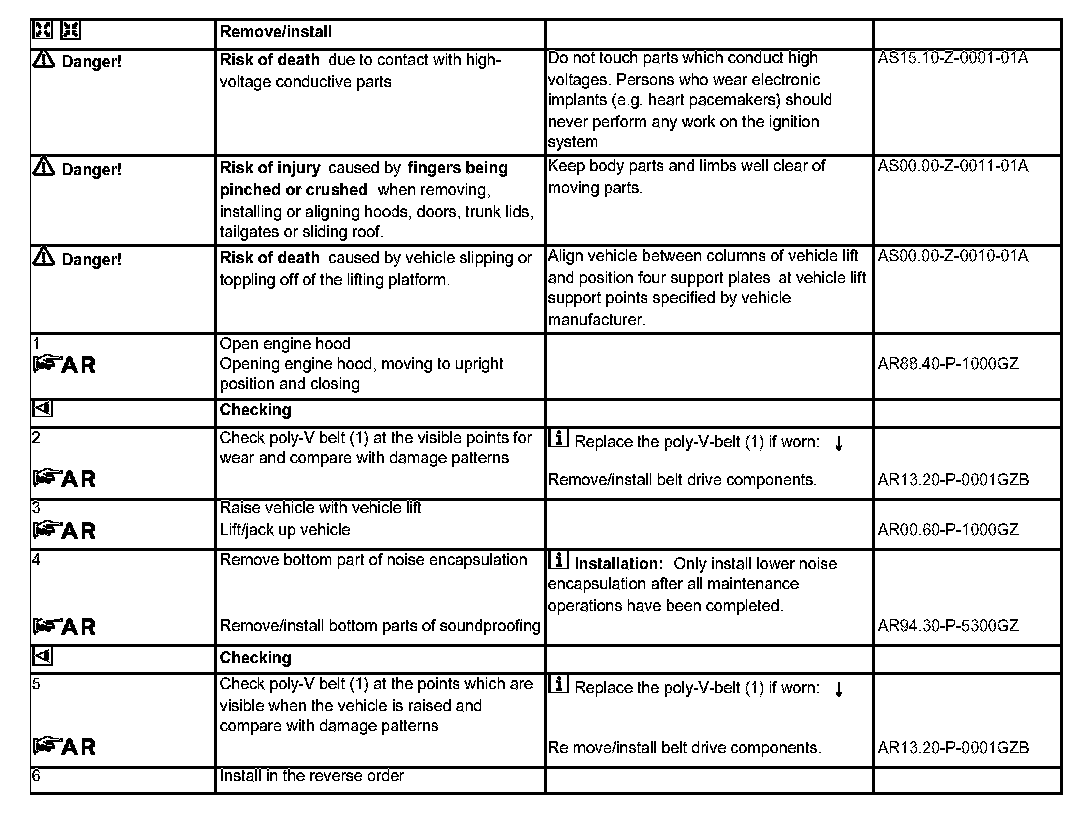

Steps 1 - 6:
