AZ82.60-P-0017RT Retrofit iPod Interface With Video Function

AZ82.60-P-0017RT Retrofit iPod Interface With Video Function
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (528) COMAND with DVD changer
- except CODE (518) Media interface
- except CODE (863) Digital/analog TV tuner
- except CODE (866) Preinstallation for rear entertainment system
- except CODE (864) Rear entertainment system

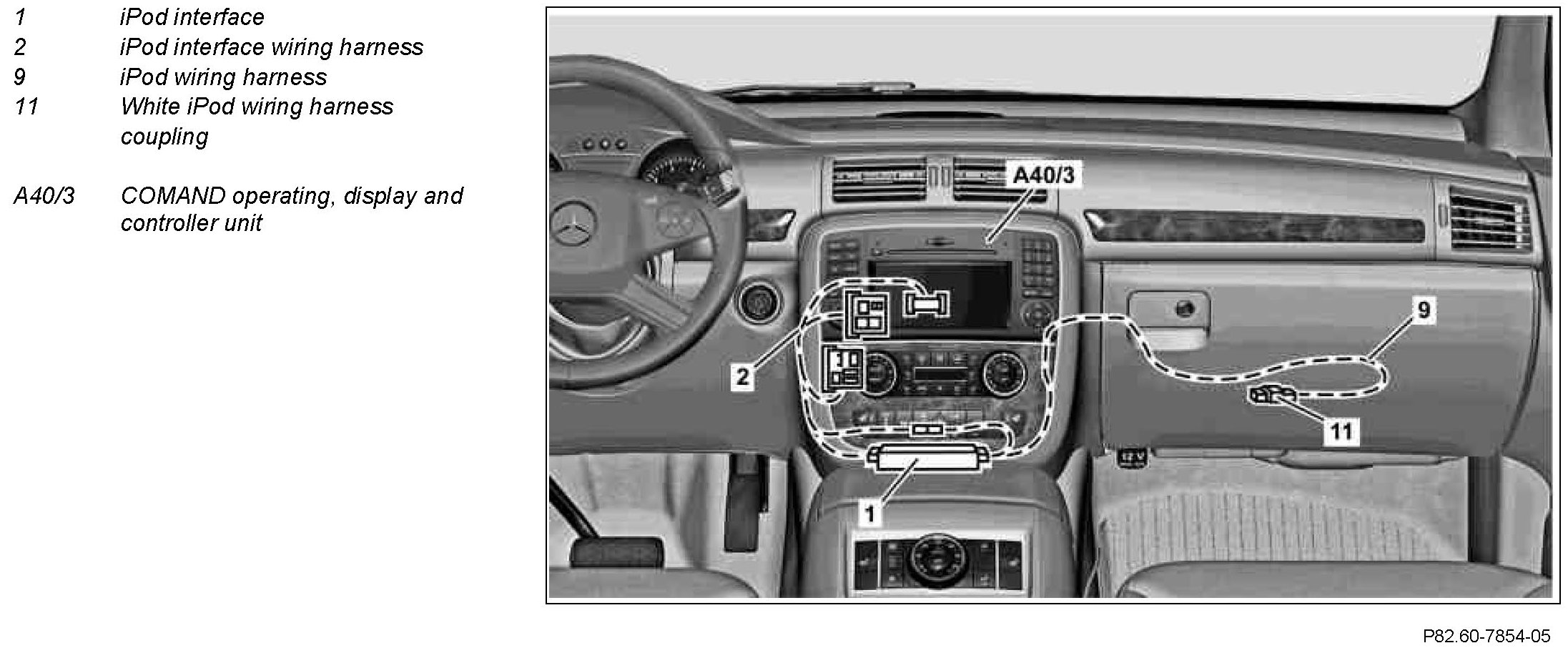

Component Identification:

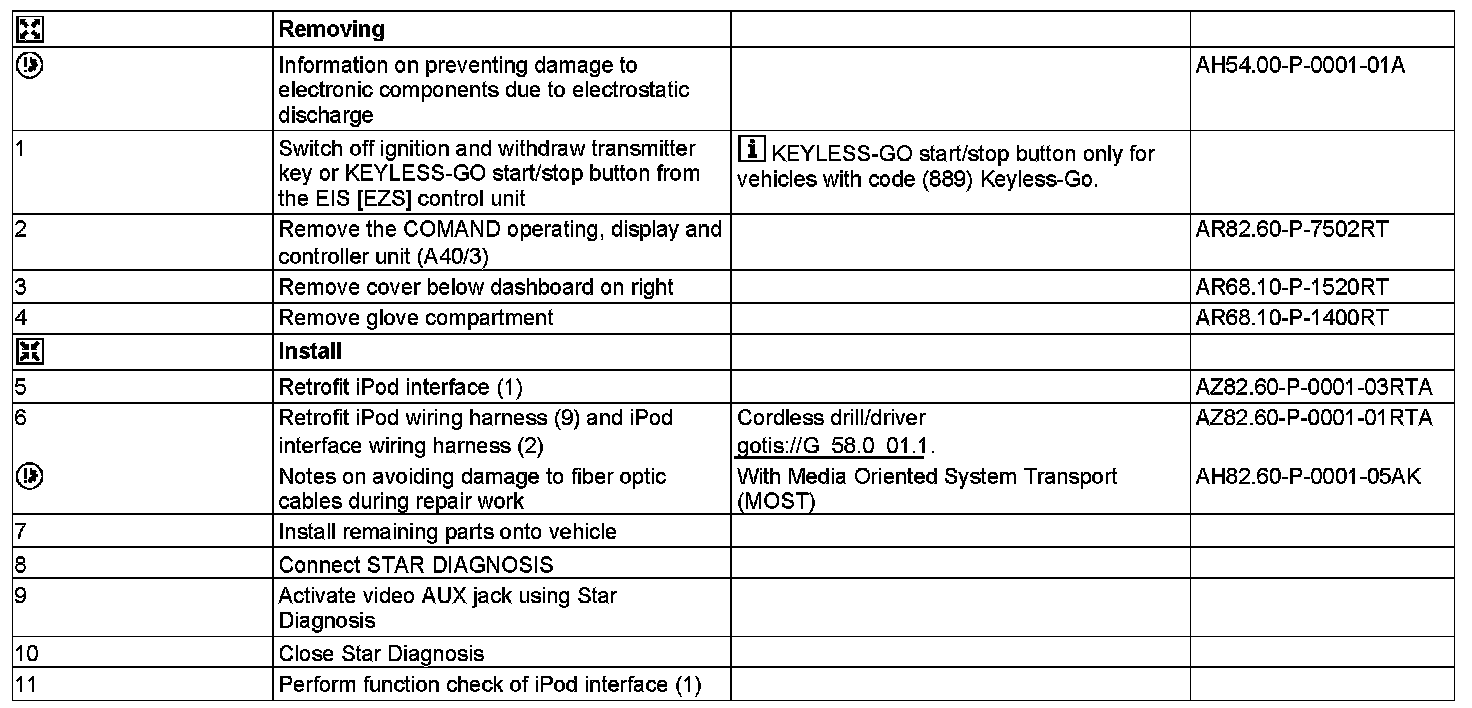

Steps 1 - 11:

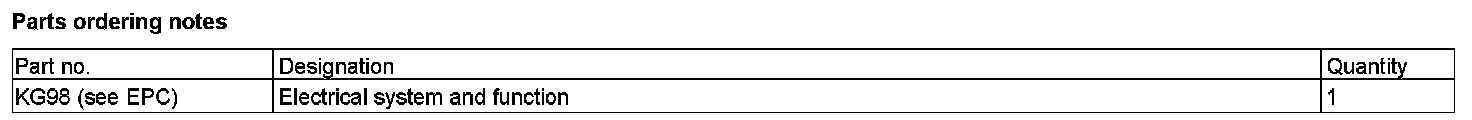

Parts Ordering Notes:
