PE88.79-U-2055RAA Electrical Function Diagram For Mirror Heater

PE88.79-U-2055RAA Electrical Function Diagram For Mirror Heater
- as of model year 09

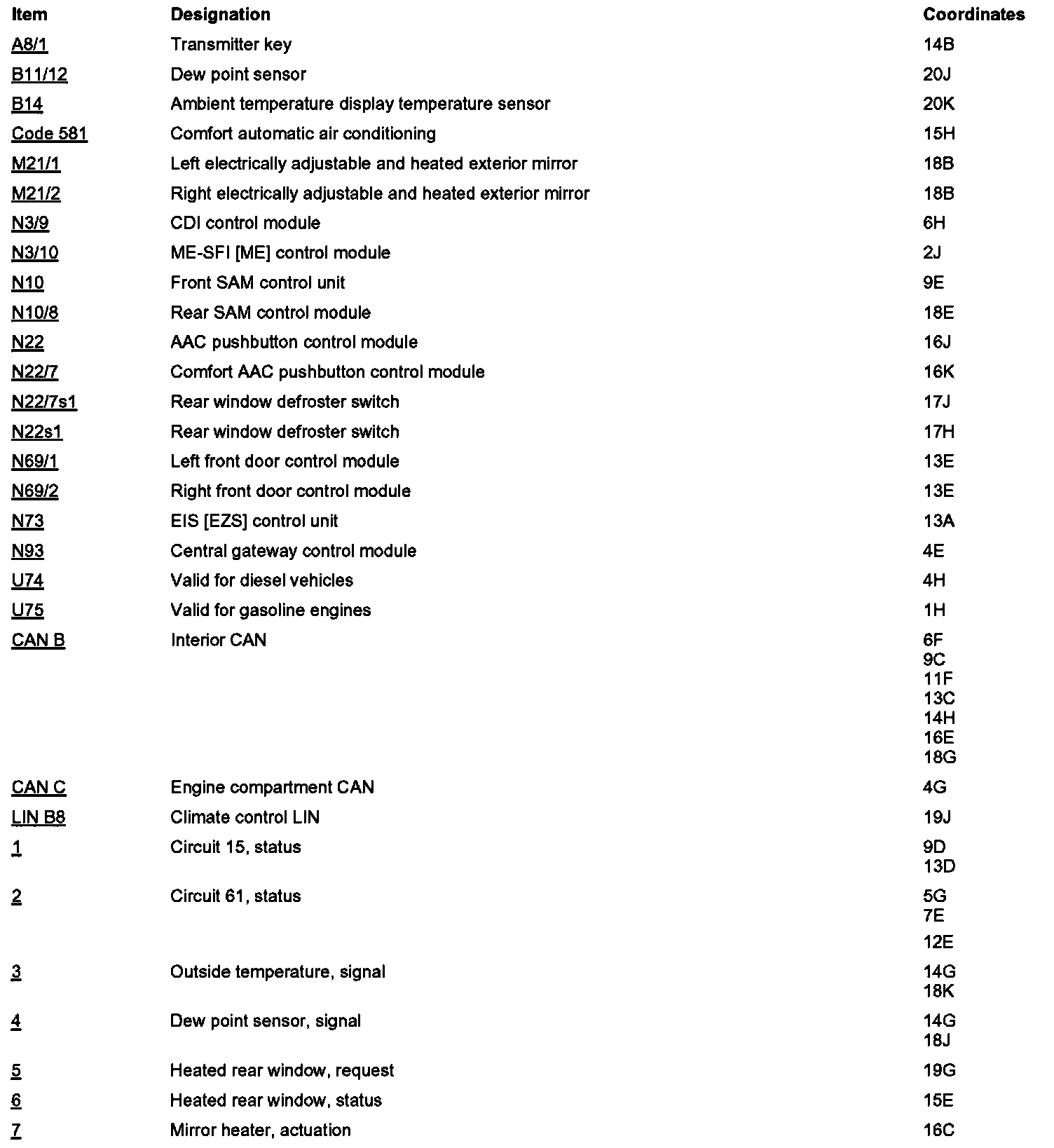

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
