AR88.70-P-9040RTA Remove/Install Outside Mirror Trim

AR88.70-P-9040RTA Remove/install Outside Mirror Trim

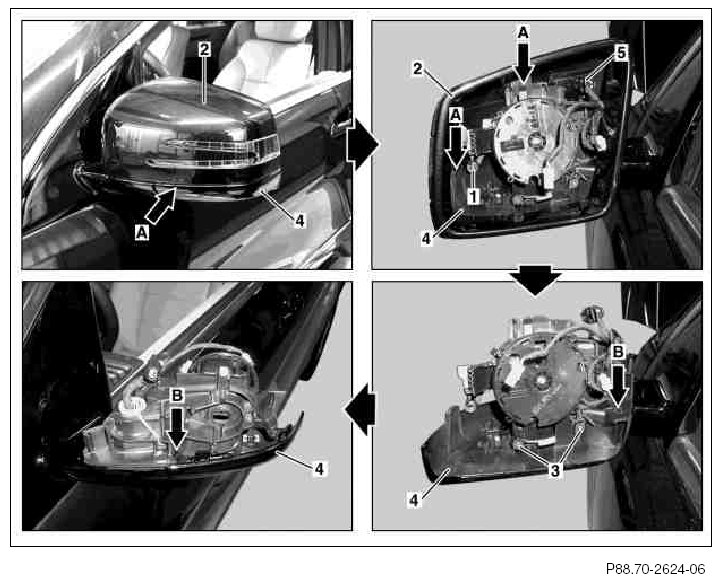

Illustrated on model 251







1 Screw
2 Upper trim panel
3 Bolts
4 Lower trim panel
5 Electrical connector







115 589 03 59 00, Long wedge
