Electrical Diagrams

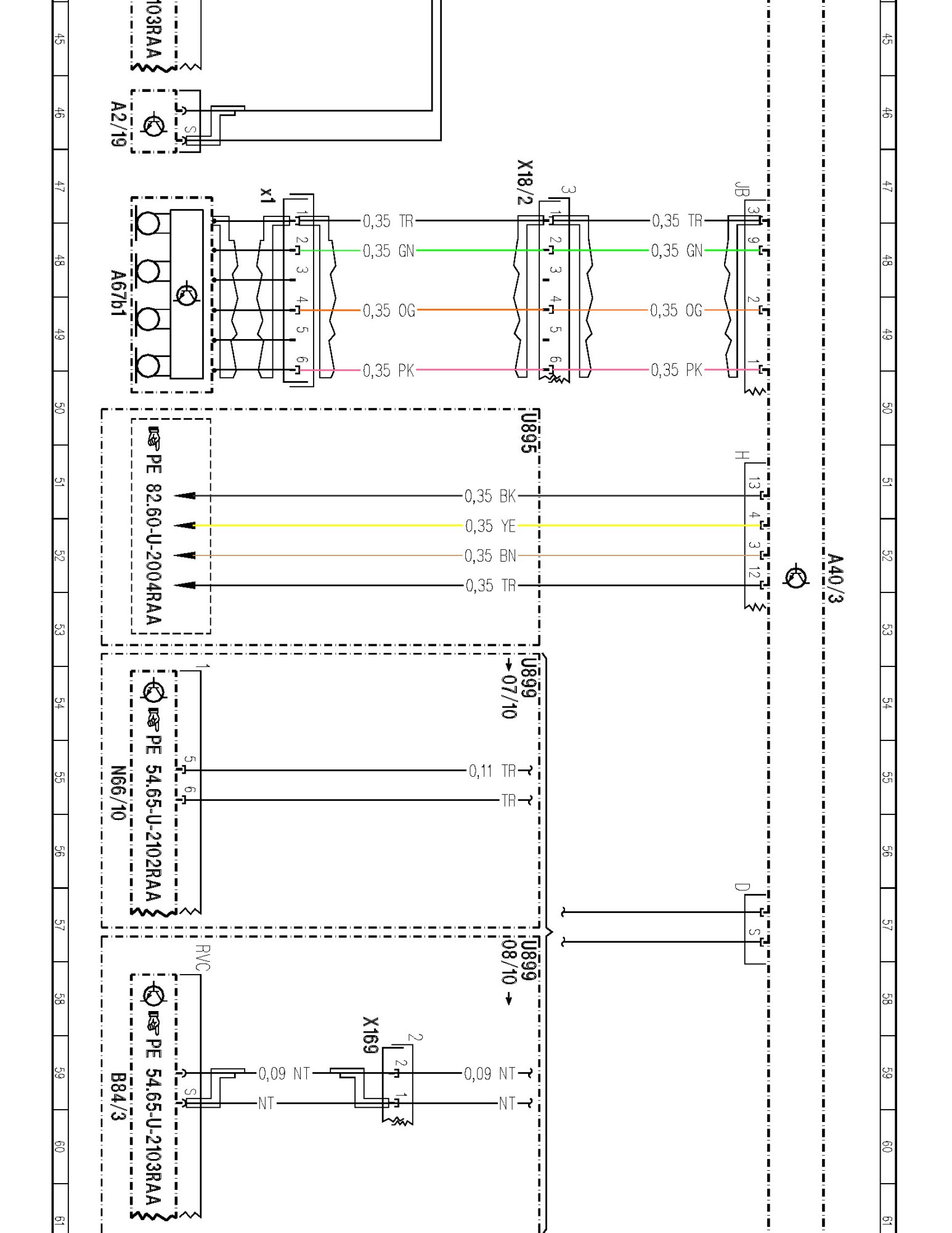

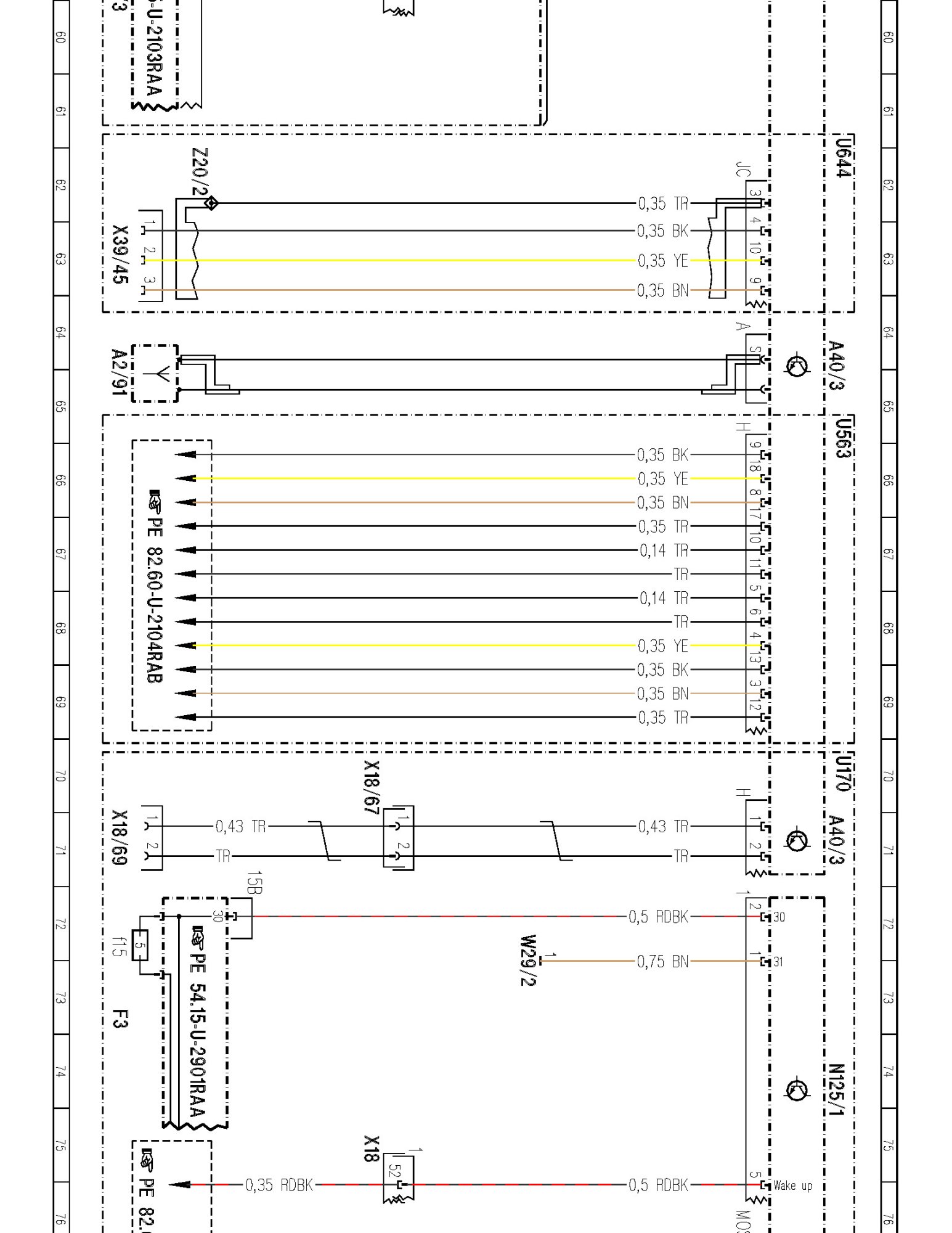

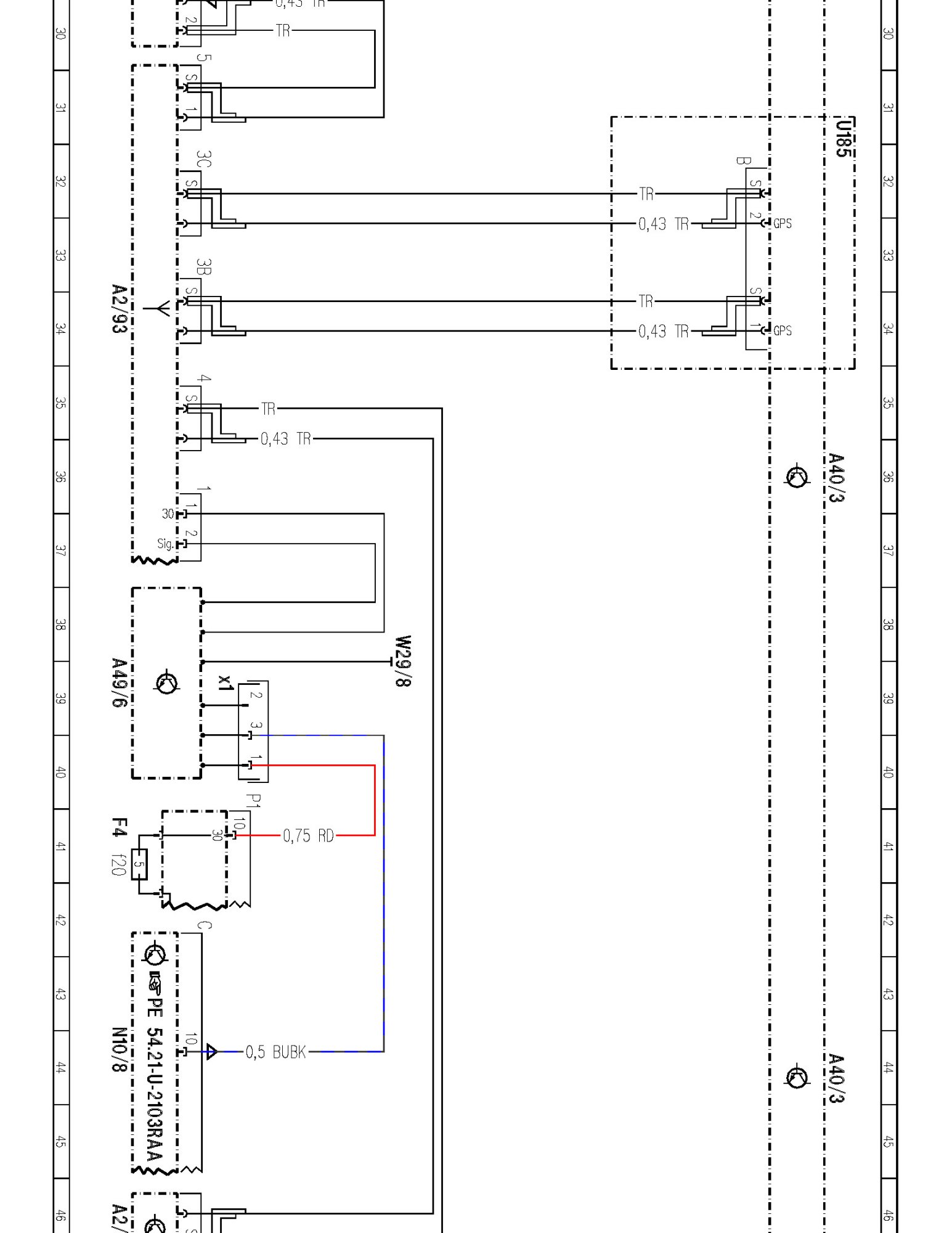

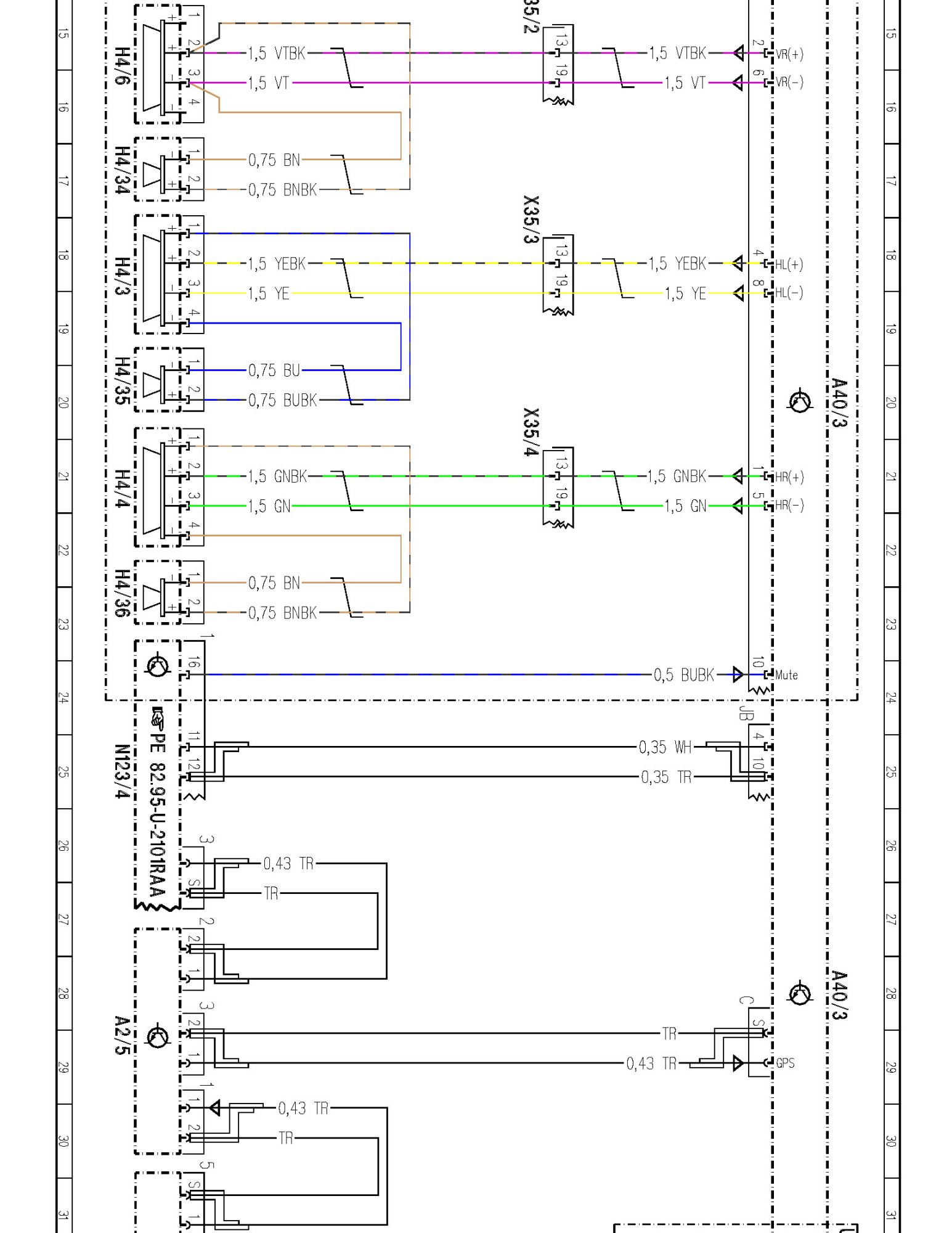

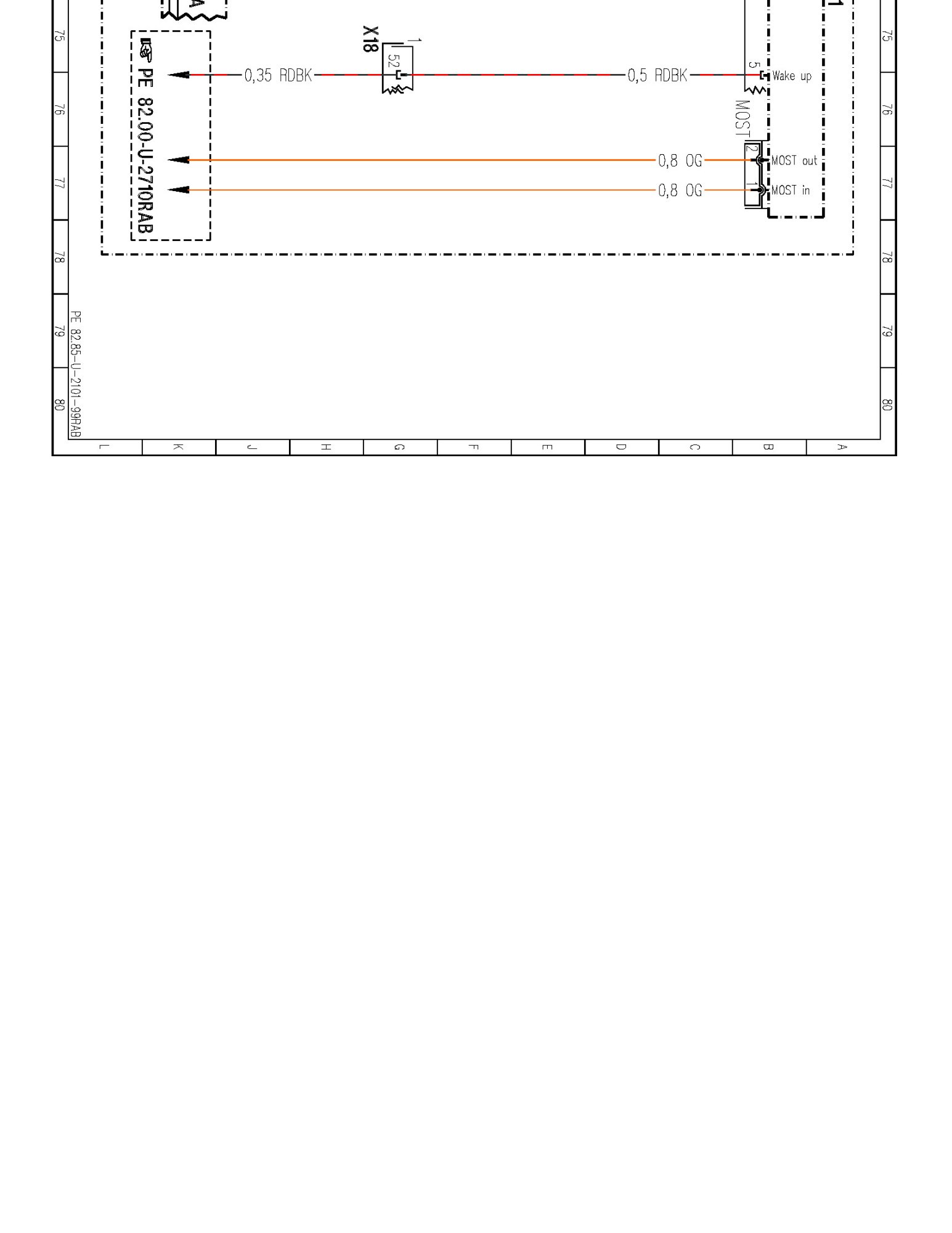

PE82.85-U-2101RAB Cockpit Management and Data System (COMAND) Control Module



































Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
