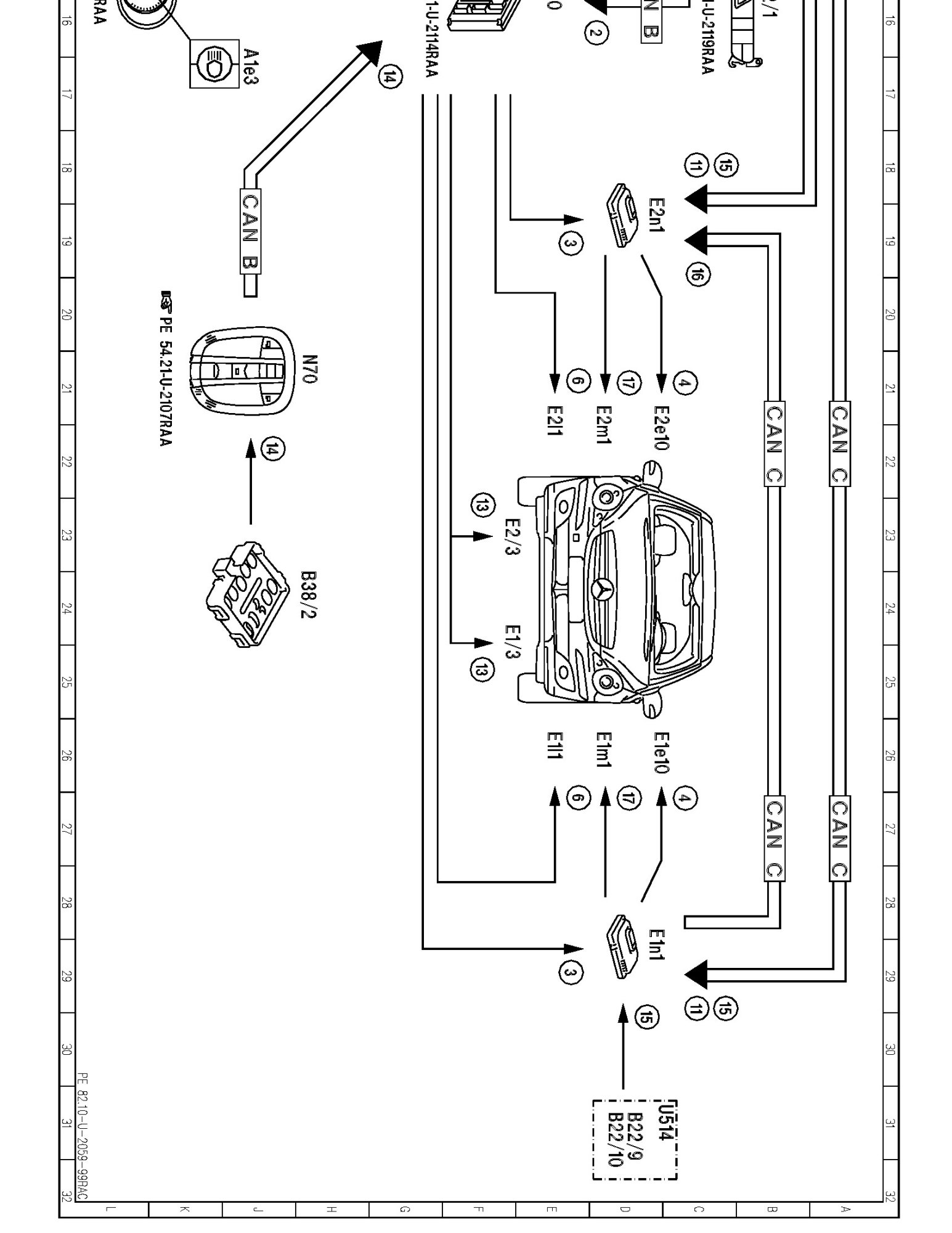

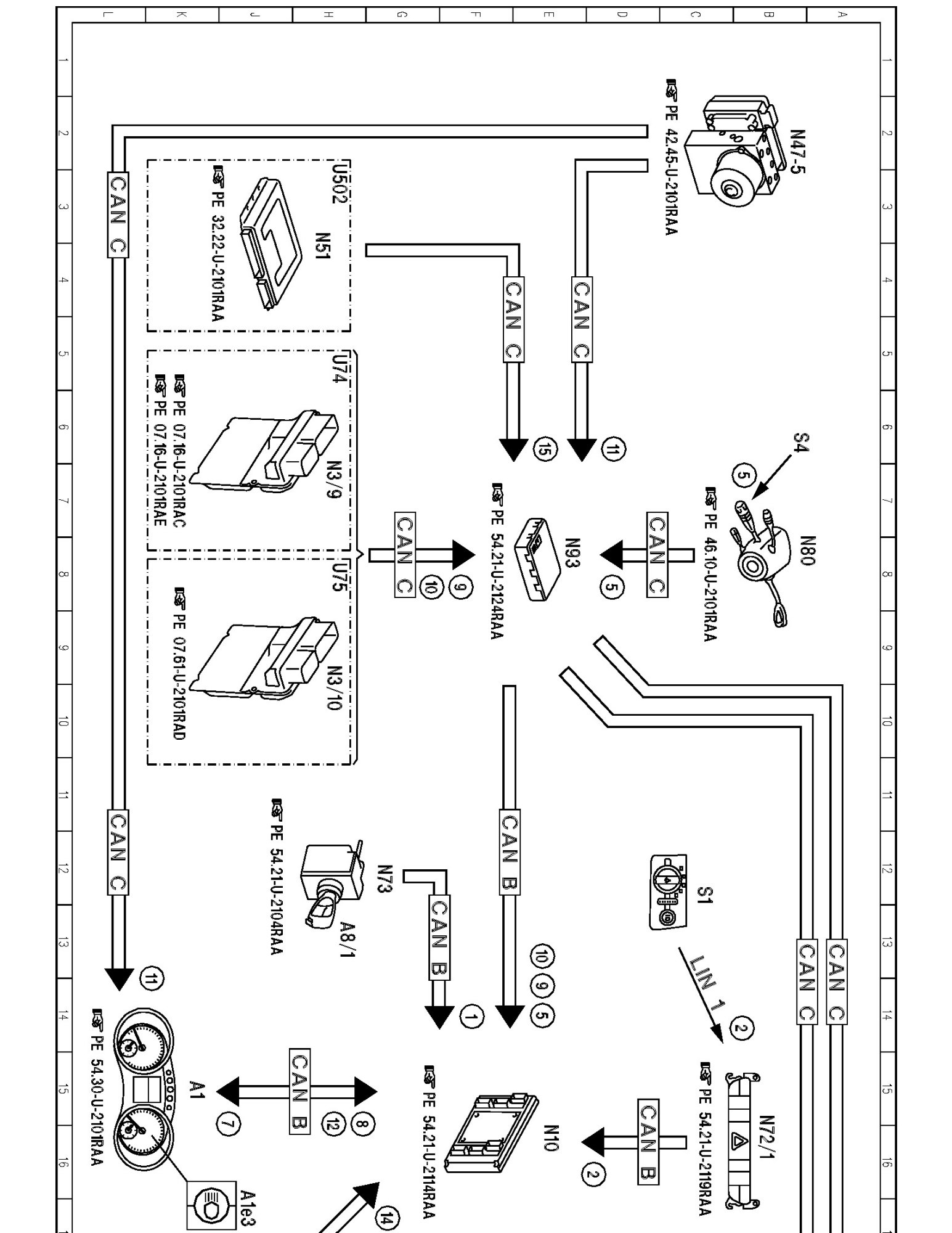

PE82.10-U-2059RAC Electrical Function Diagram For Driving Lights Actuation

PE82.10-U-2059RAC Electrical Function Diagram For Driving Lights Actuation

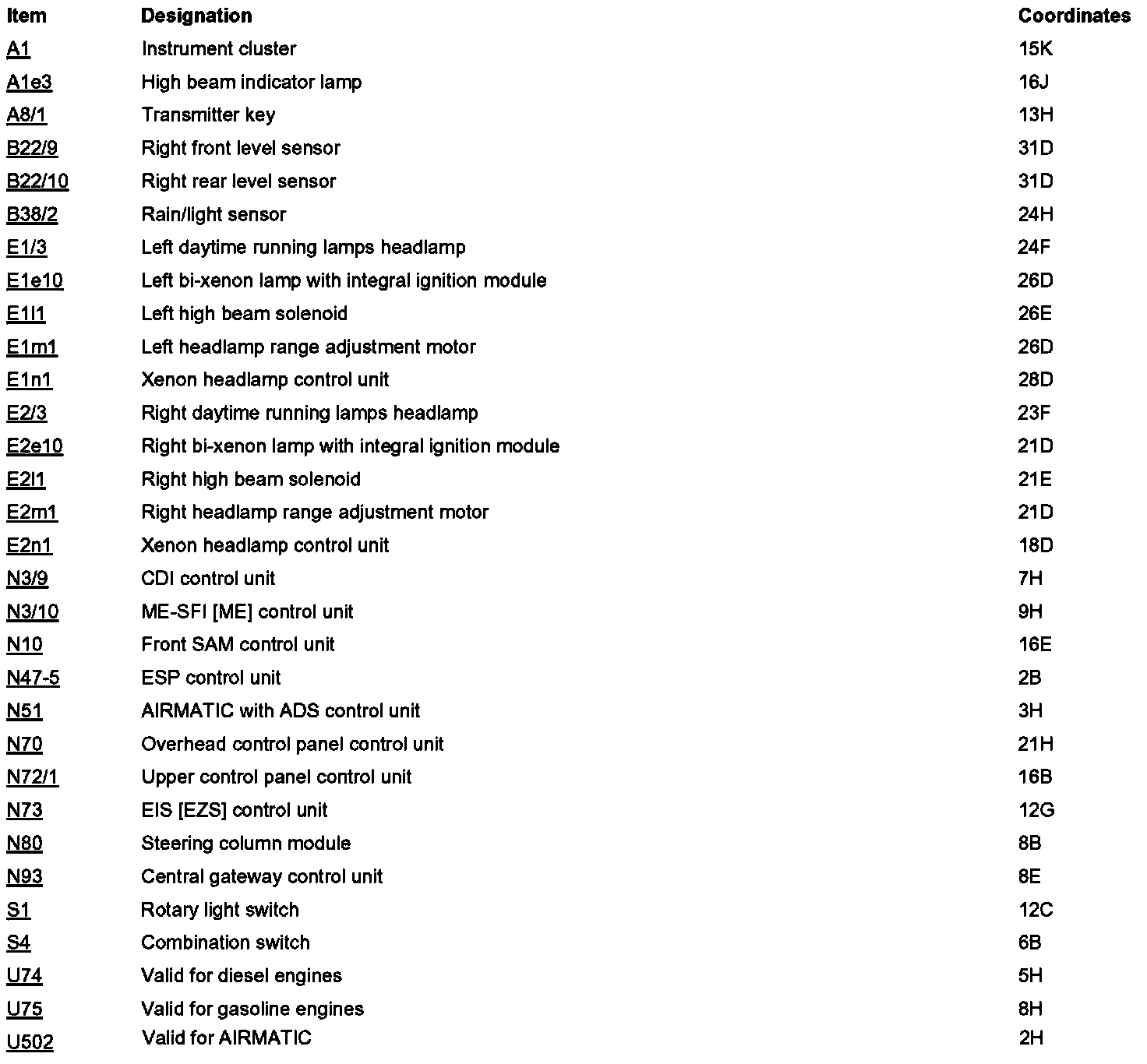

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
