PE07.61-U-2787RAA Electrical Function Schematic For Starting, The Post-Start Phase And Warm-Up Enrichment

PE07.61-U-2787RAA Electrical Function Schematic For Starting, The Post-Start Phase And Warm-Up Enrichment

ENGINE 272, 273 in MODEL 251
- as of Model Year 2009

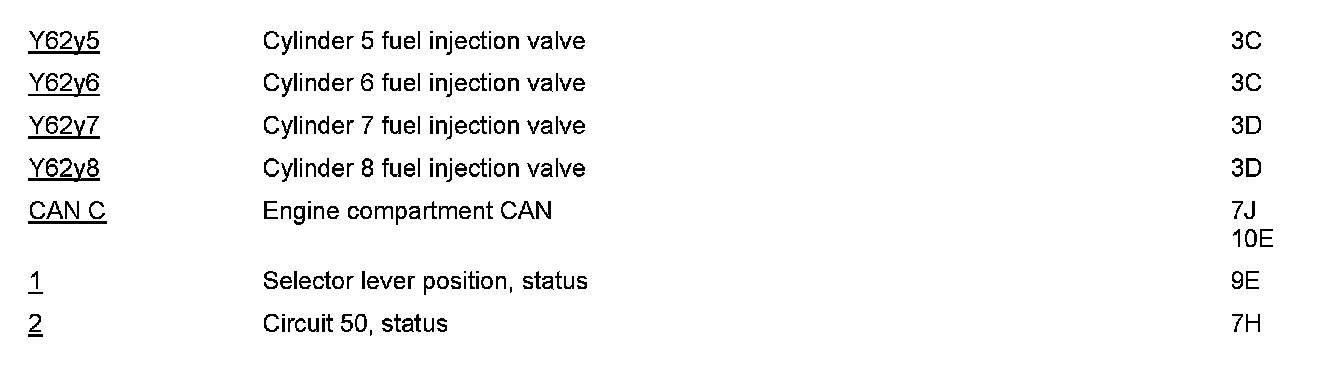

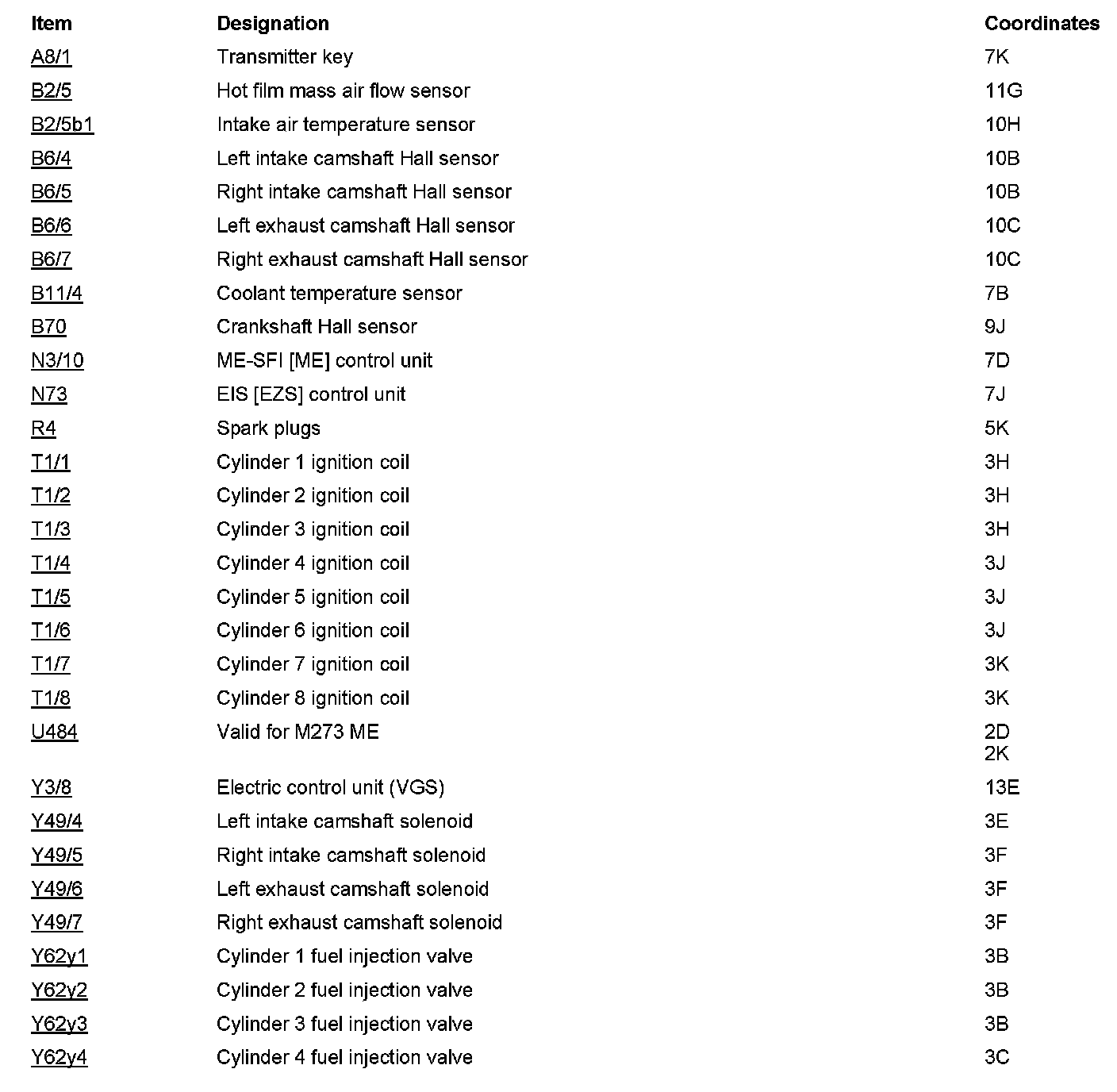

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
