AR86.30-S-0060-01JC Empty Fresh Water/Waste Water Tank

AR86.30-S-0060-01JC Empty Fresh Water/Waste Water Tank
MODEL 906.633
- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic






1. Position suitable vessel below drains or position vehicle above sewer.

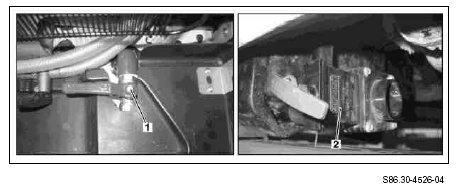

2. Open shutoff valve (1) for fresh water, allow fresh water to drain.
For this purpose, fold over passenger bench seat.

3. Open shutoff valve (2) for wastewater, allow wastewater to drain
The shutoff valve (2) is located below the vehicle on the left.

4. Close both shutoff valves (1, 2) after draining.
