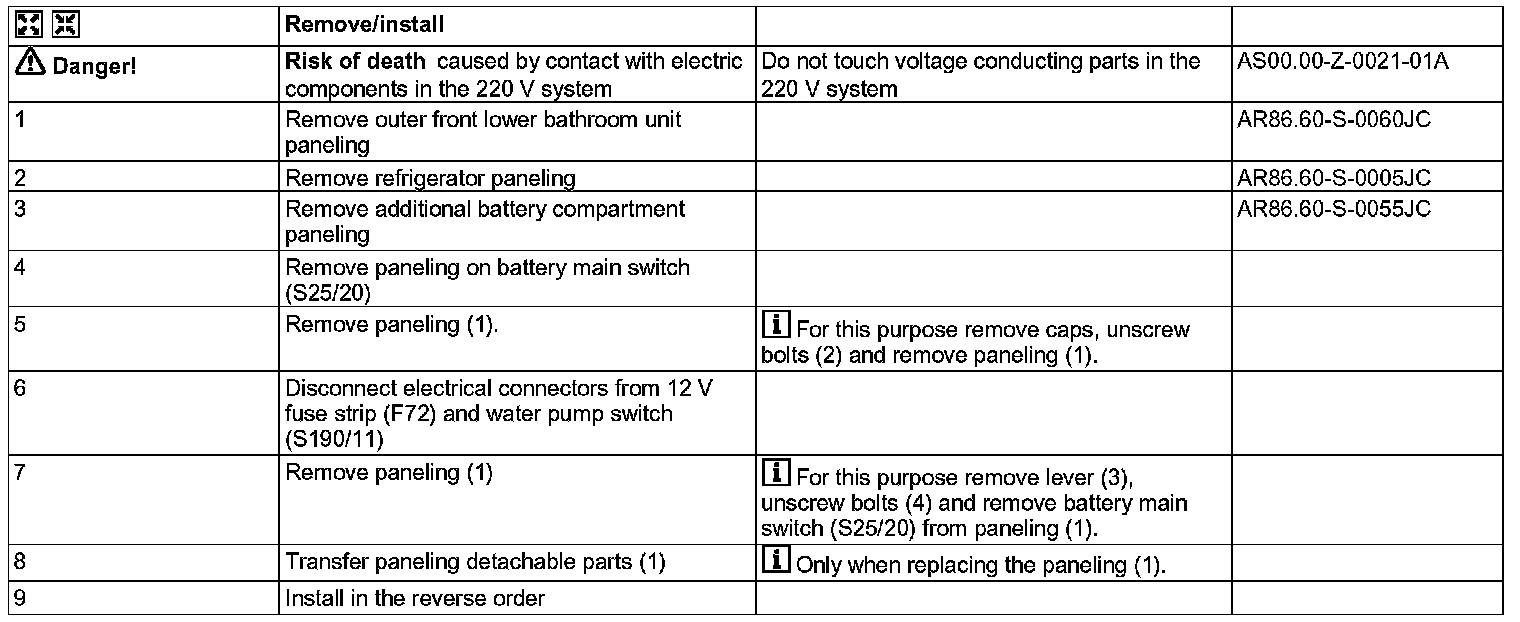

AR86.60-S-0065JC Remove/Install Outer Front Lower Bathroom Unit Paneling

AR86.60-S-0065JC Remove/Install Outer Front Lower Bathroom Unit Paneling

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic







1 Trim
2 Bolts
3 Lever
4 Bolts
F72 12V fuse strip
S190/11 Water pump switch
S25/20 Battery master switch
