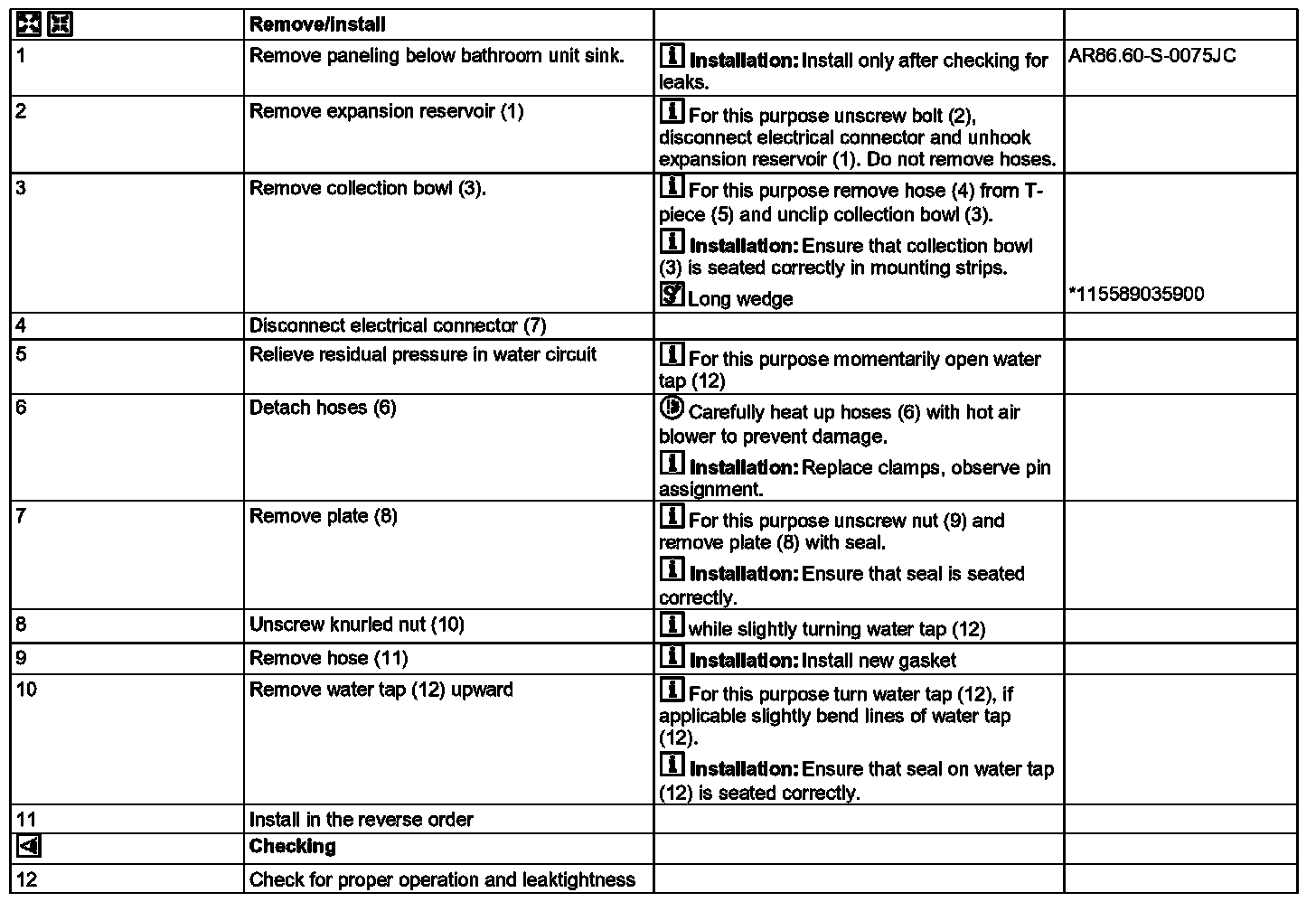

AR86.60-S-0073JC Remove, Install Bathroom Unit Sink Water Tap

AR86.60-S-0073JC Remove, Install Bathroom Unit Sink Water Tap

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic







1 Expansion reservoir
2 Screw
3 Collection bowl
4 Hose
5 T-piece
6 Hoses
7 Electrical connector
8 Plate
9 Nut
10 Knurled nut
11 Hose
12 Water tap










115 589 03 59 00, Long wedge
