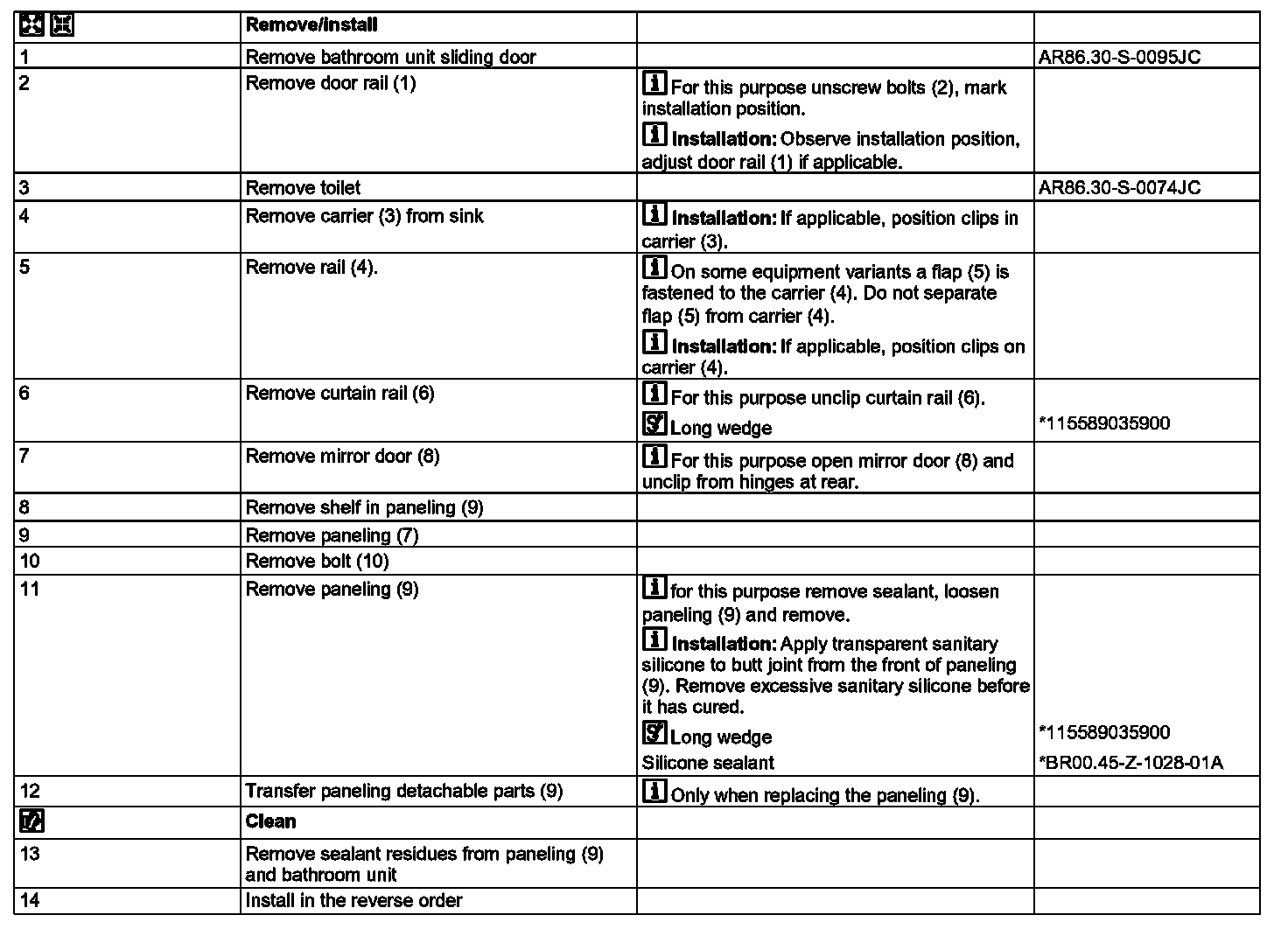

AR86.60-S-0077JC Remove, Install Rear Wall Paneling In Bathroom Unit

AR86.60-S-0077JC Remove, Install Rear Wall Paneling In Bathroom Unit

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic







1 Door rail
2 Bolts
3 Rail
4 Rail
5 Flap
6 Curtain rail
7 Trim
8 Mirror door
9 Trim
10 Bolts










115 589 03 59 00, Long wedge
