GF83.57-D-4005H Rear In-Car Temperature Sensor With Aspirator Blower, Component Description

GF83.57-D-4005H Rear In-Car Temperature Sensor With Aspirator Blower, Component Description
MODEL 906.611 /613 /631 /633 /635 /637 /653 /655 /657 /711 /713 /731 /733 /735
- with CODE (HH7) Additional air conditioning in rear

MODEL 906.633 /635 /637 /653 /655 /657 /713 /733 /735
- with CODE (H08) High-performance air conditioning

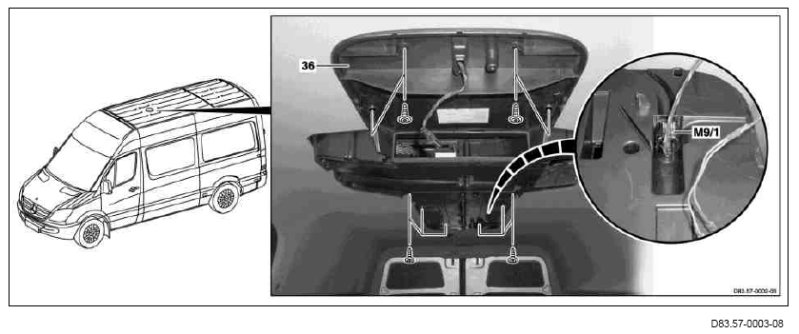

36 Roof air duct
M9/1 Rear interior air temperature sensor ventilation blower

Location
The rear interior air temperature sensor ventilation blower is located in the roof air duct.

Task
The rear interior air temperature sensor ventilation blower measures the current outlet temperature of the recirculated air routed over the rear evaporator and then forwards this value as a signal to the KLA control and operating unit (S98).

Design
The rear interior air temperature sensor ventilation blower consists of the interior temperature sensor and the aspirator blower.
