Spare Tire Carrier: Service and Repair

AN40.10-D-0004H Retrofit Spare Tire Holder






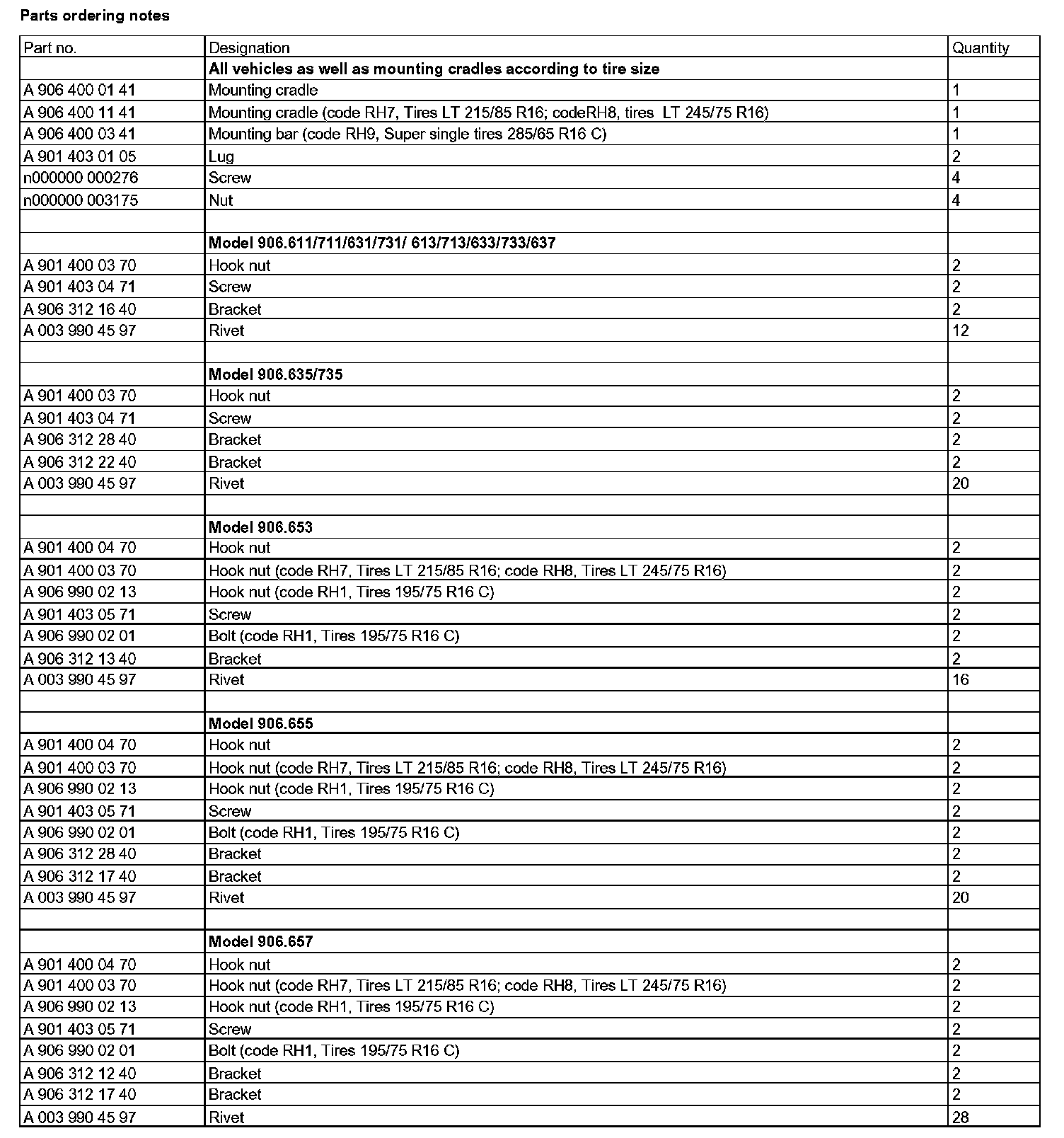

Model 906.611/711/631/731/613/713/633/733/637

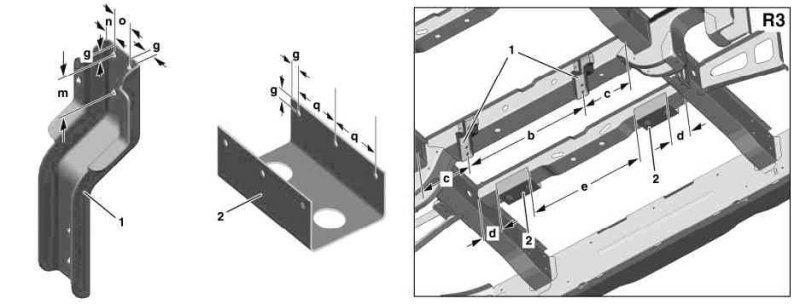

1 Bracket
a 190.5 mm
b 474 mm
g 8 mm
i 31 mm
k 17 mm
l 20 mm
R1 Wheel base 3250 mm
R2 Wheel base 3665 mm
R4 Wheel base 4325 mm with long overhang





Model 906.635/735

1 Bracket
2 Bracket
b 474 mm
c 177 mm
d 77.5 mm
e 440 mm
g 8 mm
n 13 mm
m 37,5 mm
o 23 mm
q 57 mm
R3 Wheel base 4325 mm





Model 906.653

1 Bracket
b 474 mm
f 79,5 mm
g 8 mm
h 7,5 mm
i 31 mm
j 16 mm
R2 Wheel base 3665 mm





Model 906.655

1 Bracket
2 Bracket
b 474 mm
d 77.5 mm
e 440 mm
f 79.5 mm
g 8 mm
m 37,5 mm
n 13 mm
o 23 mm
q 57 mm
R3 Wheel base 4325 mm





Model 906.657

1 Bracket
2 Bracket
a 190.5 mm
b 474 mm
d 77.5 mm
e 440 mm
g 8 mm
o 23 mm
p 32 mm
q 57 mm
R4 Wheel base 4325 mm with long overhang

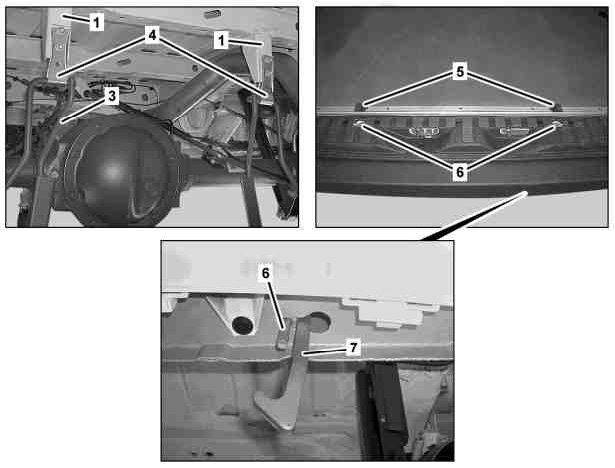

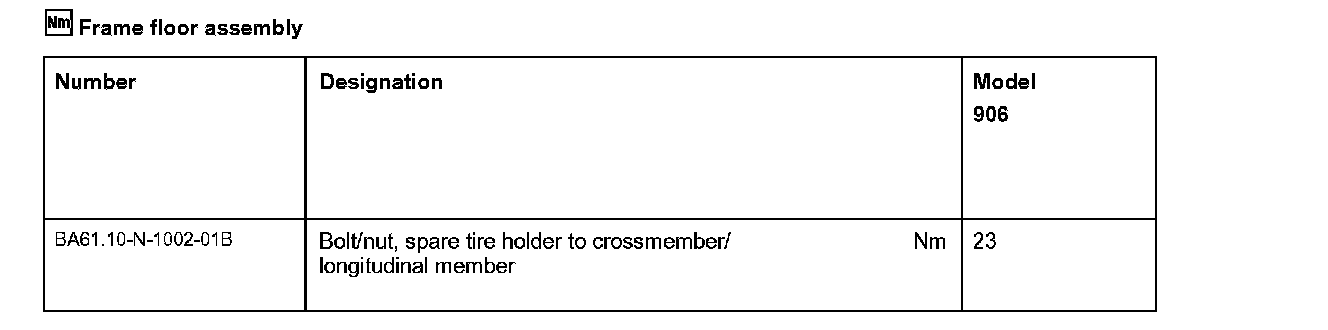

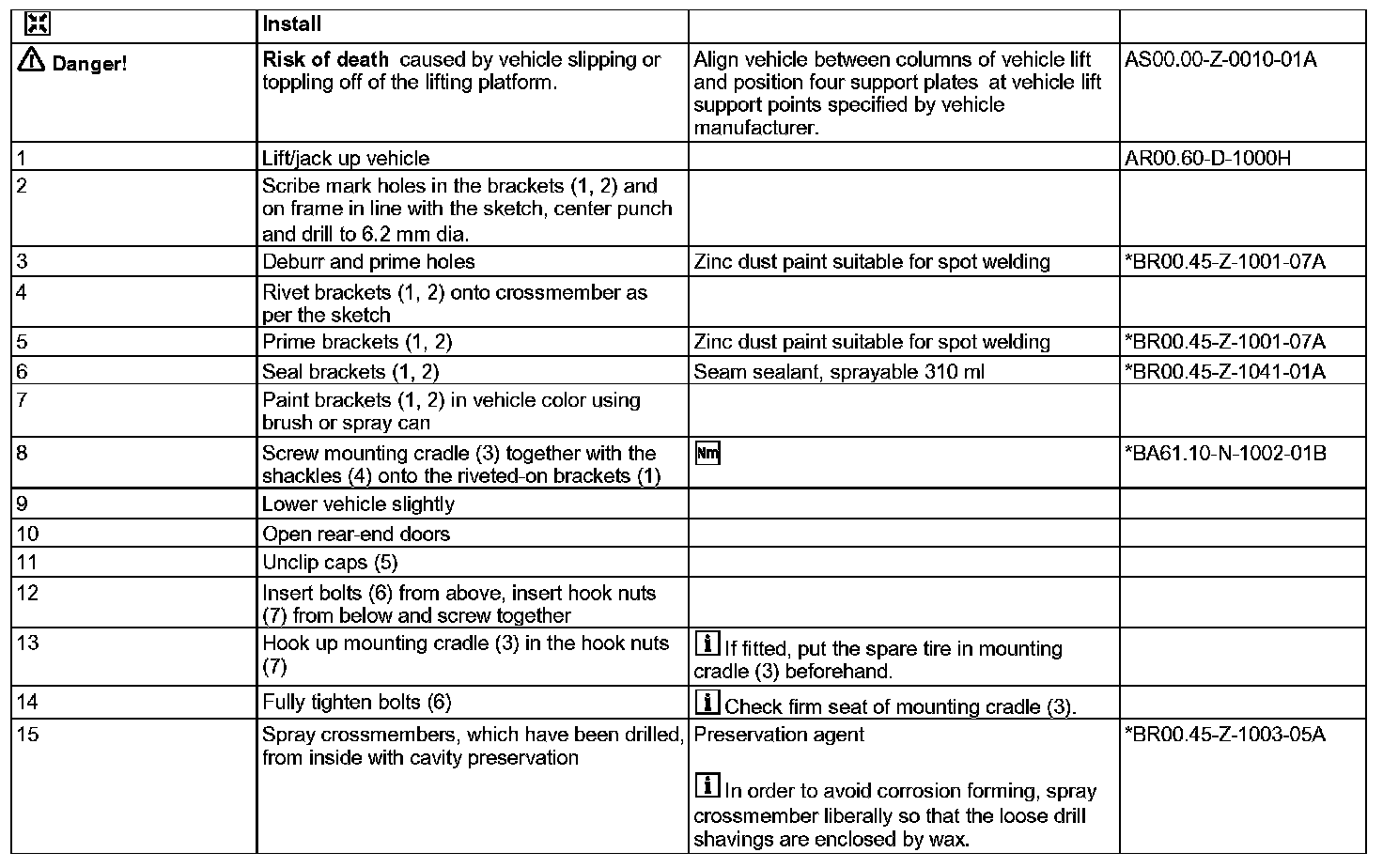

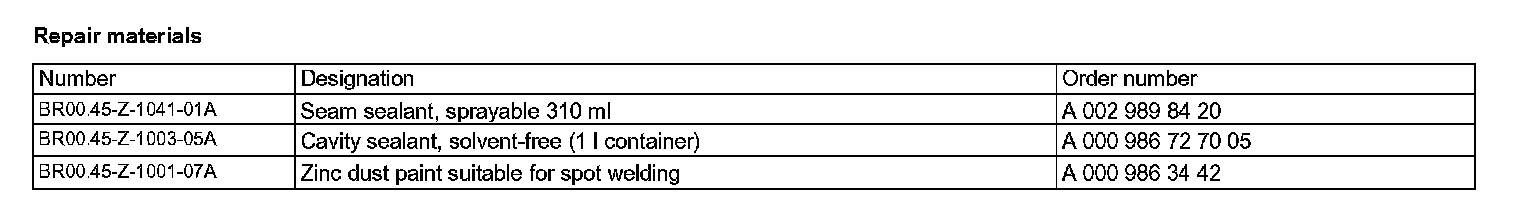

1 Bracket
3 Mounting cradle
4 Lugs
5 Caps
6 Bolts
7 Hook nuts
