GF83.50-D-2030H Rear Air Conditioning Actuation, Function

GF83.50-D-2030H Rear Air Conditioning Actuation, Function

- with CODE (HH9) Regulated air conditioning (Tempmatic)
- with CODE (HH7) Additional air conditioning in rear

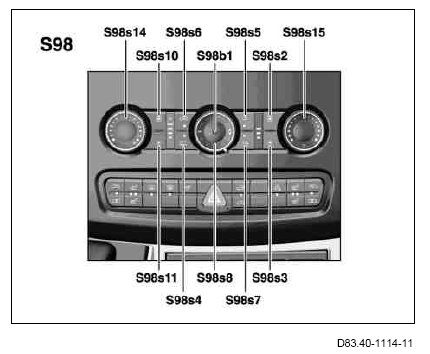

S98 AAC [KLA] control and operating unit
S98s2 Rear blower control button (+)
S98s3 Rear blower control button (-)
S98s7 Rear air conditioning button
S98s15 Rear temperature selection switch

Actuation of the rear automatic air conditioning takes place via the rear air conditioning button integrated in the AAC [KLA] control and operating unit. Activation of the rear automatic air conditioning is indicated by illumination of the red light emitting diode (LED) in the rear air conditioning button.

Following activation of the rear automatic air conditioning, it is possible to control the ventilation using the rear blower control button (+) and the rear blower control button (-) as well as to control the temperature of the passenger or load compartment using the rear temperature selection switch.
