GF83.60-D-2000H Rear Heater Actuation, Function

GF83.60-D-2000H Rear Heater Actuation, Function

- except CODE (HH9) Regulated air conditioning (Tempmatic)
- with CODE (H13) Additional heat exchanger in load compartment

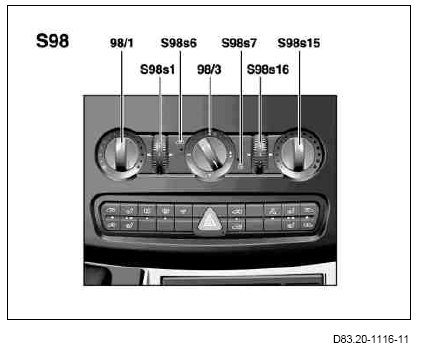

S98 AAC [KLA] control and operating unit
S98s7 Rear air conditioning button
S98s15 Rear temperature selection switch
S98s16 Rear blower switch

The rear heater is actuated using the rear air conditioning button integrated in the AAC [KLA] control and operating unit. Activation of the rear heater is indicated by illumination of the red light emitting diode (LED) in the rear air conditioning button.
Following activation of the rear heater, the rear blower switch integrated into the AAC [KLA] control and operating unit can regulate the rate of air flow and the integrated rear temperature selection switch can regulate the temperature in the passenger compartment or load compartment.
