GF83.65-D-4125H Roof Air Conditioning Drier Cylinder, Component Description

GF83.65-D-4125H Roof Air Conditioning Drier Cylinder, Component Description

- with CODE (H08) High-performance air conditioning

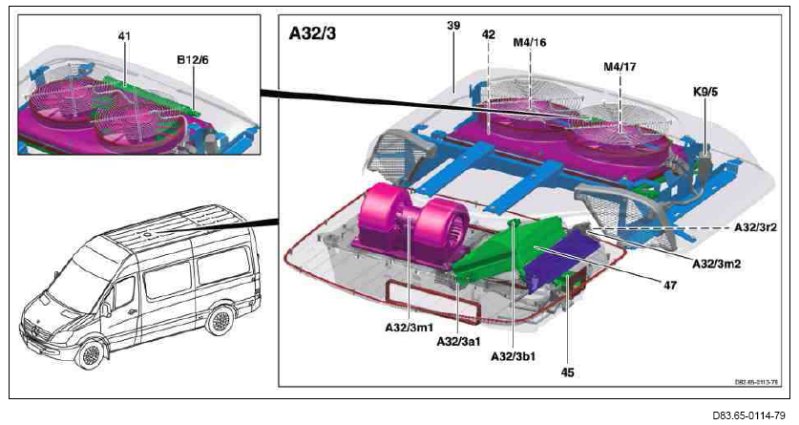

41 Roof air conditioning desiccant cartridge
42 Roof air conditioning condenser
A32/3 Rear heavy duty automatic air conditioning recirculation unit

Location
The roof air conditioning desiccant cartridge is located in the high-pressure line (liquid) of the rear heavy duty automatic air conditioning recirculation unit downstream of the roof air conditioning condenser on the vehicle roof.

Task
Dirt and moisture are cleaned from the liquid refrigerant in the roof air conditioning desiccant cartridge. At the same time, the roof air conditioning desiccant cartridge is used as a reservoir to supply the rear heavy duty automatic air conditioning (roof air conditioning) with a sufficient amount of refrigerant.
