GF82.70-P-3110GY Compensator Component Description

GF82.70-P-3110GY Compensator Component Description
- with CODE (386) Preinstallation for telephone "Handy", UPCI system
- with CODE (388) Telephone "Handy", UPCI system
- except CODE (498) Japan version
- except CODE (494) USA version

Component Identification:

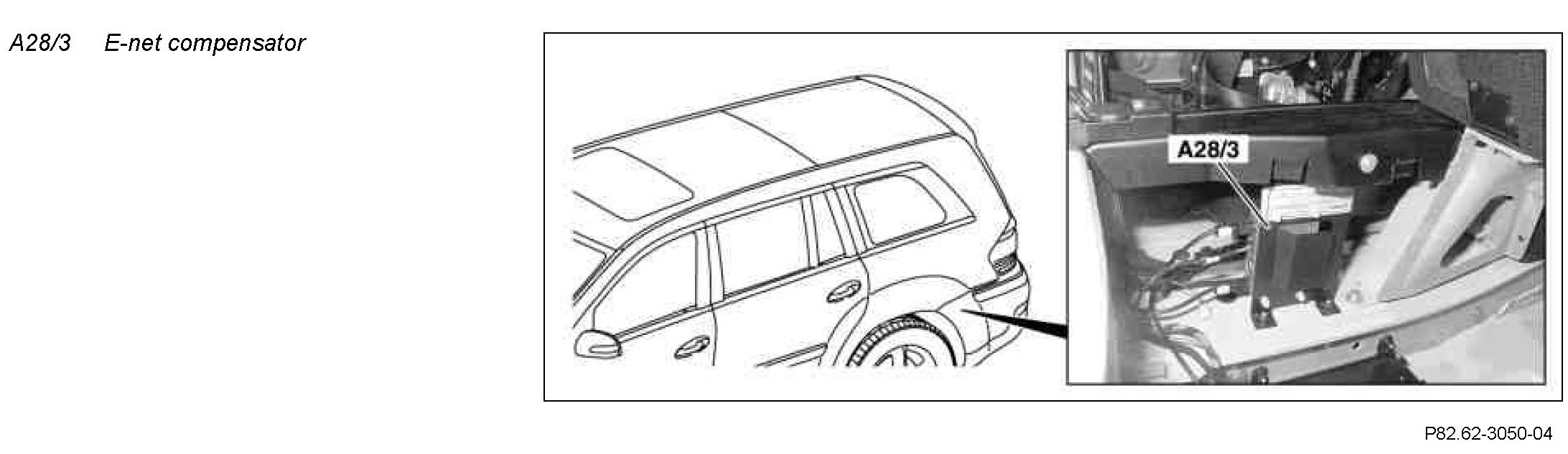

The E-net compensator is located at the rear left, next to the spare tire well on a bracket.

Due to laws of physics, transmission and reception losses in the antenna line can occur when using portable CTELs. The E-net compensator compensates for these losses in order to provide a high degree of reachability even in areas of poor reception.
