GL 350 BLUETEC (164.825) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Collision Avoidance and Parking Assist Systems
>>
Description and Operation
>>
GF54.65-P-0003-01GM Parktronic Location of Components
GF54.65-P-0003-01GM Parktronic Location of Components

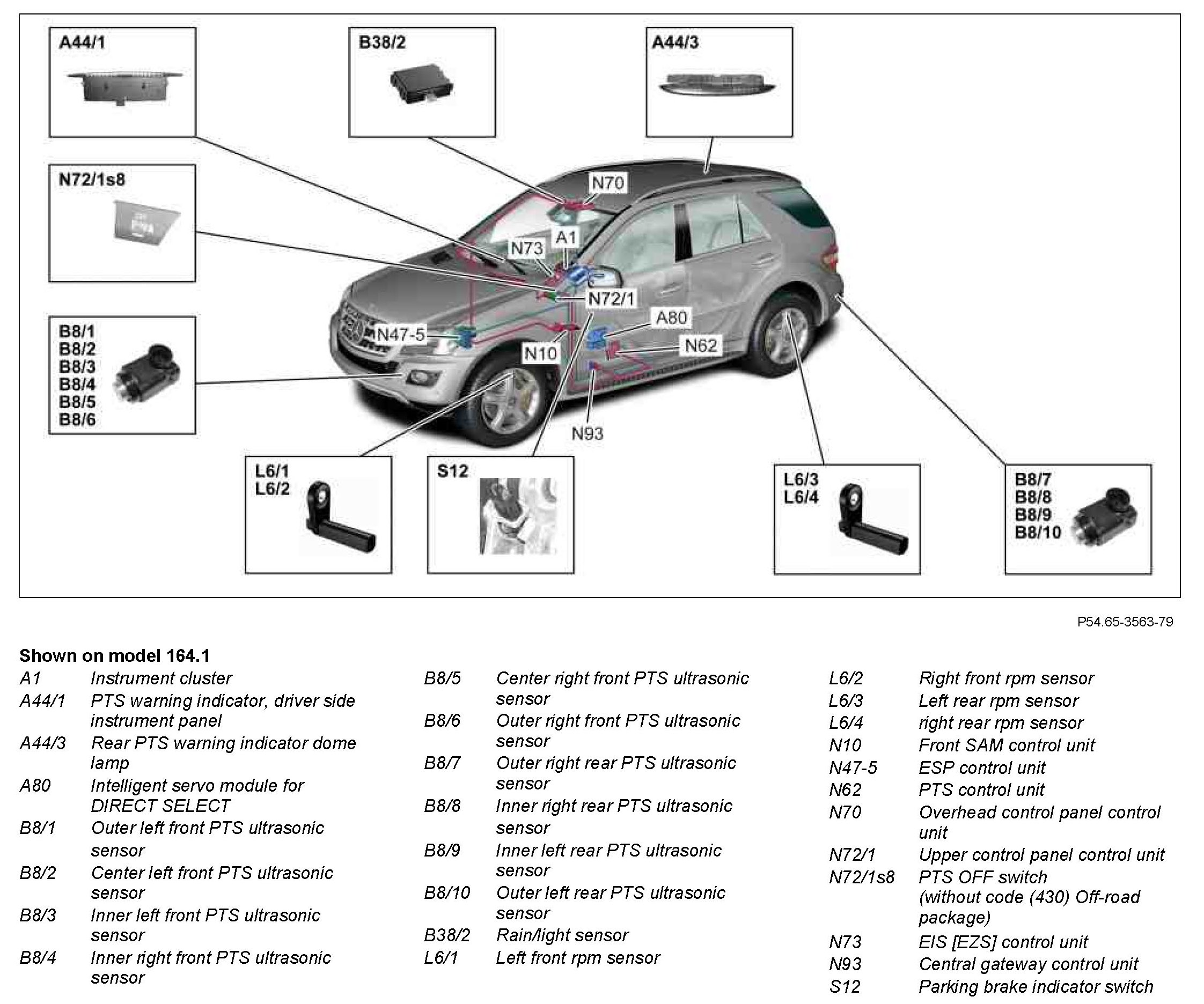

GF54.65-P-0003-01GM PARKTRONIC Location Of Components
- with CODE (220) PARKTRONIC
Component Identification:
