AZ82.85-P-0006-02GZ Retrofit Medianavigation Center Adapter Wiring Harness
AZ82.85-P-0006-02GZ Retrofit MediaNavigation Center Adapter Wiring Harness
- MODEL 164.1 /8 with CODE (830) China version

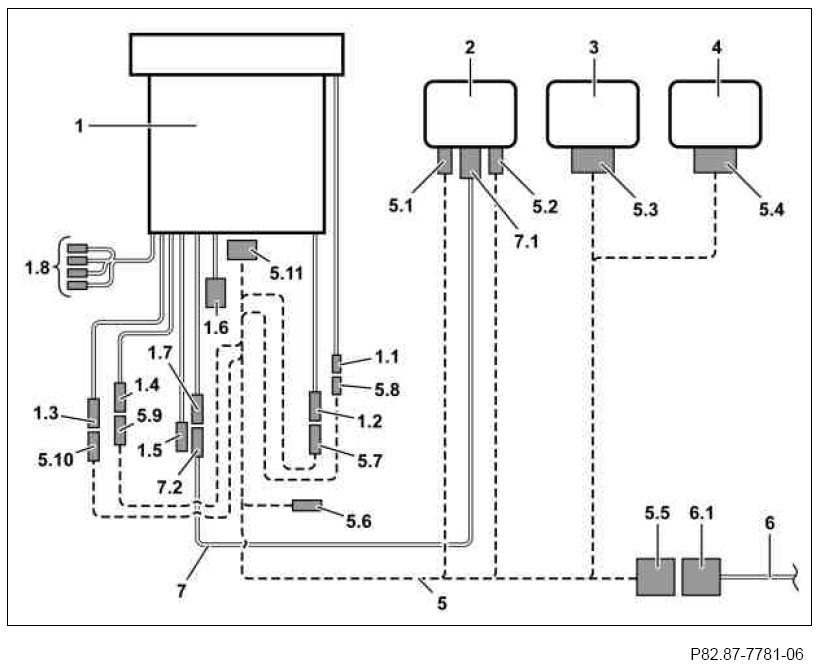

Connection scheme
1 MediaNavigation Center
1.1 Black 2-pin coupling for microphone
1.2 Black 1-pin coupling for antenna
1.3 Black coupling for AUX signal
1.4 Transparent 1-pin coupling ("REVERSE")
1.5 Black coupling (not used)
1.6 Black coupling for Universal Serial Bus (USB)
1.7 Blue, 13-pin coupling for Bluetooth module
1.8 Connection lines for "REMOTE IN", "M. CONT", "REMOTE OUT", "GUIDE CONT" (not used)
2 Bluetooth module control unit
3 interface control unit
4 "ICANI" control unit
5 MediaNavigation Center adapter wiring harness
5.1 White 4-pin coupling (Bluetooth module)
5.2 Black 2-pin coupling (Bluetooth module)
5.3 Interface black coupling
5.4 "ICANI" black coupling
5.5 Black plug (vehicle wiring harness connection)
5.6 Turquoise 1-pin antenna connector
5.7 Antenna connector
5.8 Black 2-pin plug (microphone)
5.9 Transparent 1-pin plug ("REVERSE")
5.10 Black AUX signal connector
5.11 Black 16-pin coupling
6 Vehicle wiring harness (audio equipment)
6.1 Black 44-pin coupling (vehicle wiring harness)
7 Bluetooth module connecting cable
7.1 Violet 13-pin plug (Bluetooth module)
7.2 Blue 13-pin plug (Bluetooth module)

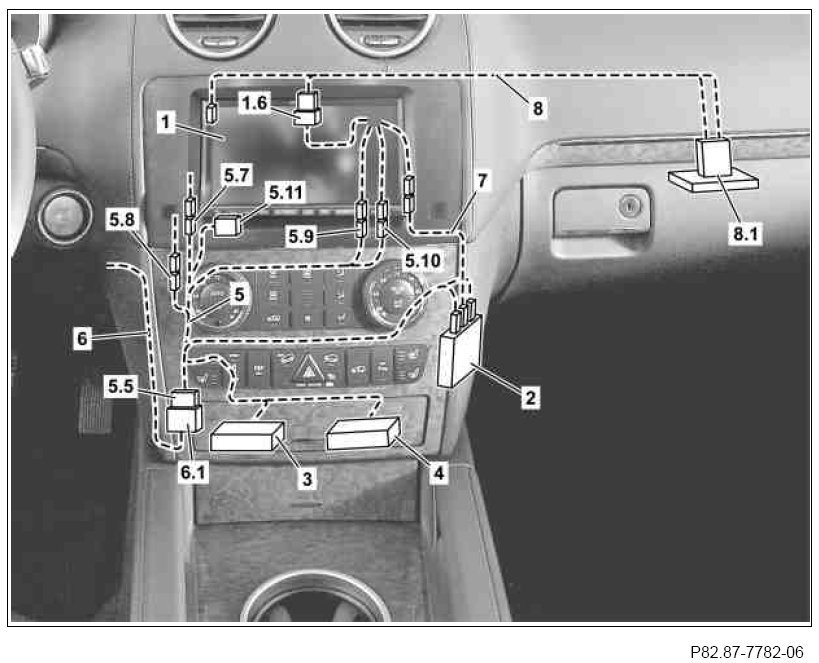

Routing diagram
1 MediaNavigation Center
1.6 USB black coupling
2 Bluetooth module control unit
3 interface control unit
4 "ICANI" control unit
5 MediaNavigation Center adapter wiring harness
5.5 Black plug (vehicle wiring harness connection)
5.7 Antenna connector
5.8 Black 2-pin plug (microphone)
5.9 Transparent 1-pin plug ("REVERSE")
5.10 Black AUX signal connector
5.11 Black 16-pin coupling
6 Vehicle wiring harness (audio equipment)
6.1 Black 44-pin coupling (vehicle wiring harness)
7 Bluetooth module connecting cable
8 MediaNavigation Center connecting cable
8.1 Multimedia connection (glove box)

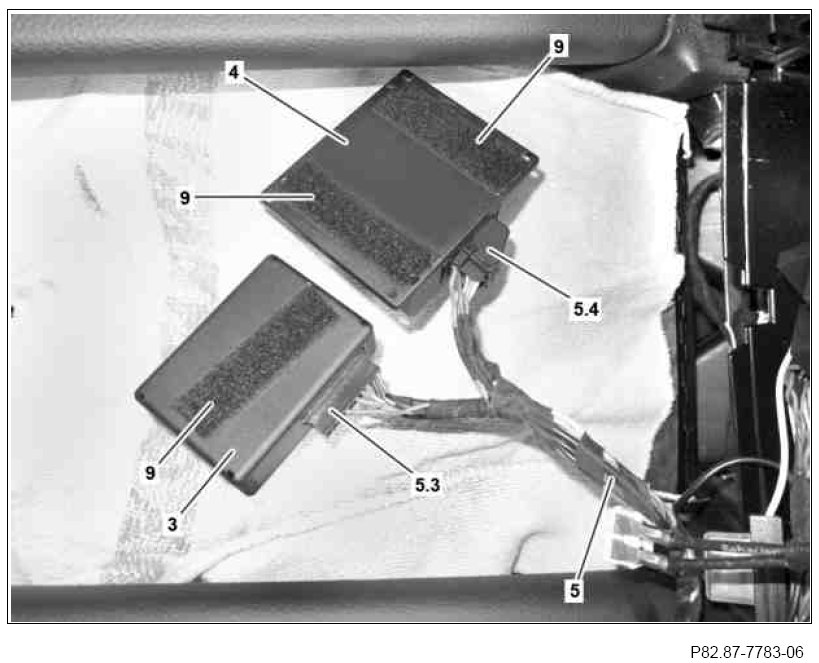

1 Stick a Velcro strip (9), as shown, onto the interface control unit (3).
2 Connect interface black coupling (5.3) of MediaNavigation Center adapter wiring harness (5) on the interface control unit (3).
3 Stick two Velcro strips (9), as shown, onto the "ICANI" control unit (4).
4 Connect black "ICANI" coupling (5.4) onto "ICANI" control unit (4).
5 Place MediaNavigation Center adapter wiring harness (5) into MediaNavigation Center recess.

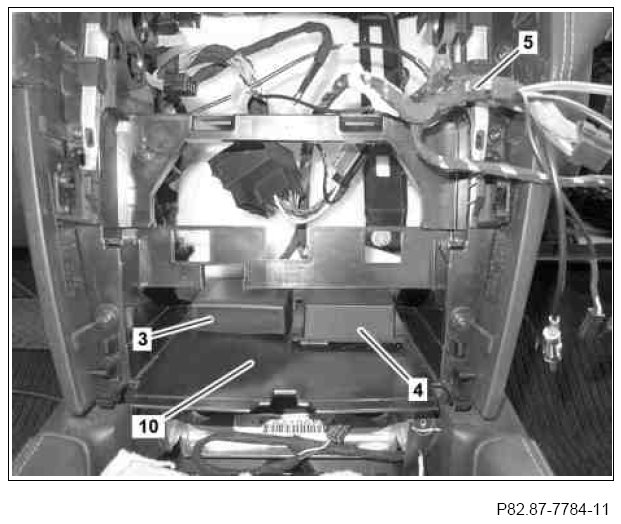

6 Remove protective foil for Velcro strips on interface control unit (3) and "ICANI" control unit (4), and stick interface control unit (3) and "ICANI" control unit (4), as shown, onto instrument panel strutting (10).
7 Fit black connector (5.5) of MediaNavigation Center adapter wiring harness (5) to black 44-pin coupling of vehicle wiring harness (6).
8 Connect turquoise 1-pin antenna connector (5.6) of MediaNavigation Center adapter wiring harness (5) to white 2-pin coupling (11.1) of vehicle's antenna line (11).
The turquoise 1-pin antenna connector (5.6) must be mounted into the slot with the lock (arrow) (cavity 2).

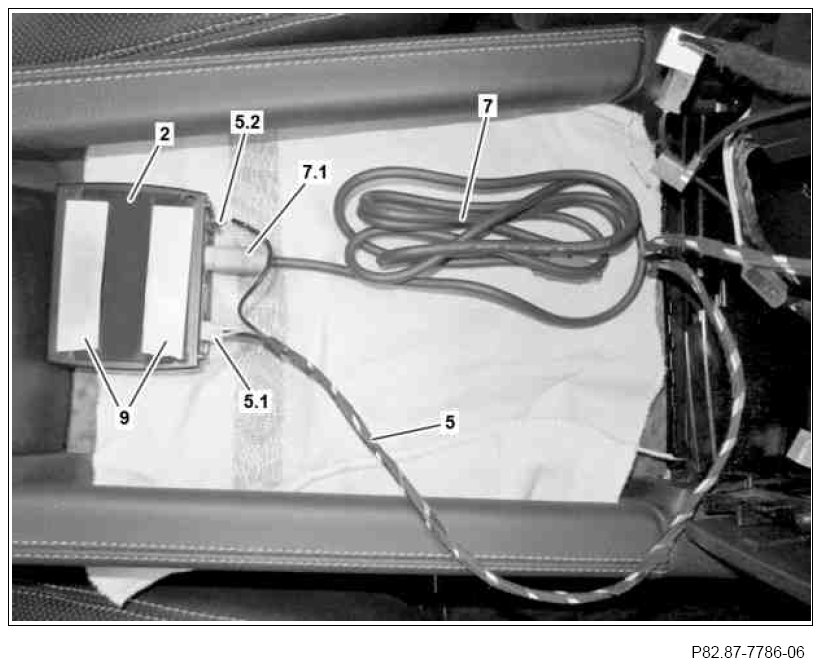

9 Stick two Velcro strips (9), as shown, onto the Bluetooth module control unit (2).
10 Connect white 4-pin coupling (5.1) and black 2-pin coupling (5,2) of MediaNavigation Center adapter wiring harness (5) to Bluetooth module control unit (2).
11 Connect violet 13-pin plug (7.1) of Bluetooth module connecting cable (7) to violet connection of Bluetooth module control unit (2).
The blue iPod connection is not required.
12 Stick Bluetooth module control unit (2), as shown, into the lower area at the side in the MediaNavigation Center recess.
13 Form loops with extended length of Bluetooth module connecting cable (7), as shown, and fix to upper area on the vehicle wiring harness (12) using a cable tie (13).

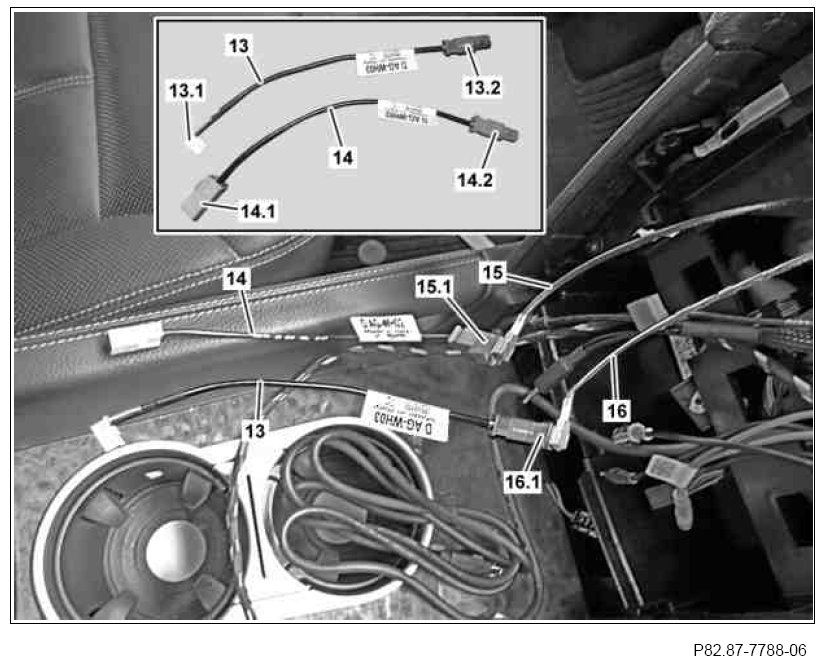

14 Connect blue 1-pin plug (14.2) of adapter line (14) to blue 1-pin coupling (15.1) of vehicle wiring harness (15).
The gray 1-pin Global Positioning System (GPS) coupling (14.1) is connected to the MediaNavigation Center at a later stage.
15 Connect green 1-pin plug (13.2) of adapter line (13) to green 1- pin coupling (16.1) of vehicle wiring harness (16).
Only for vehicles with code (218) Reversing camera.
The white 6-pin reversing camera coupling (13.1) is connected to the MediaNavigation Center at a later stage.

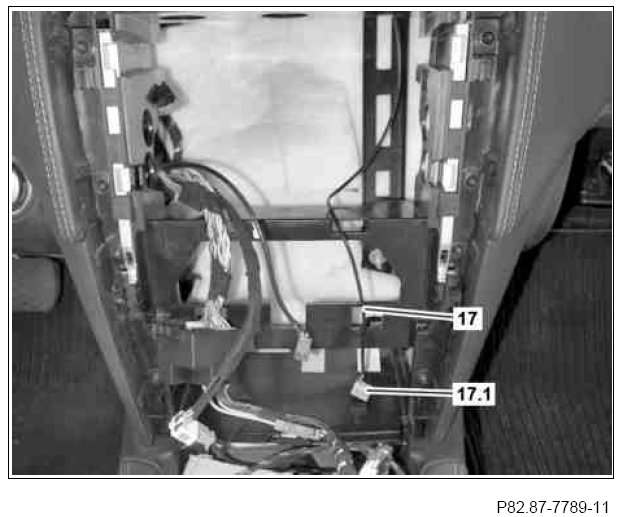

16 Strap down curry-colored 1-pin coupling (17.1) of vehicle wiring harness (17) and fix in suitable place using cable tie.
