Hood: Adjustments
AR88.40-P-3020GZ Adjust Engine
Hood

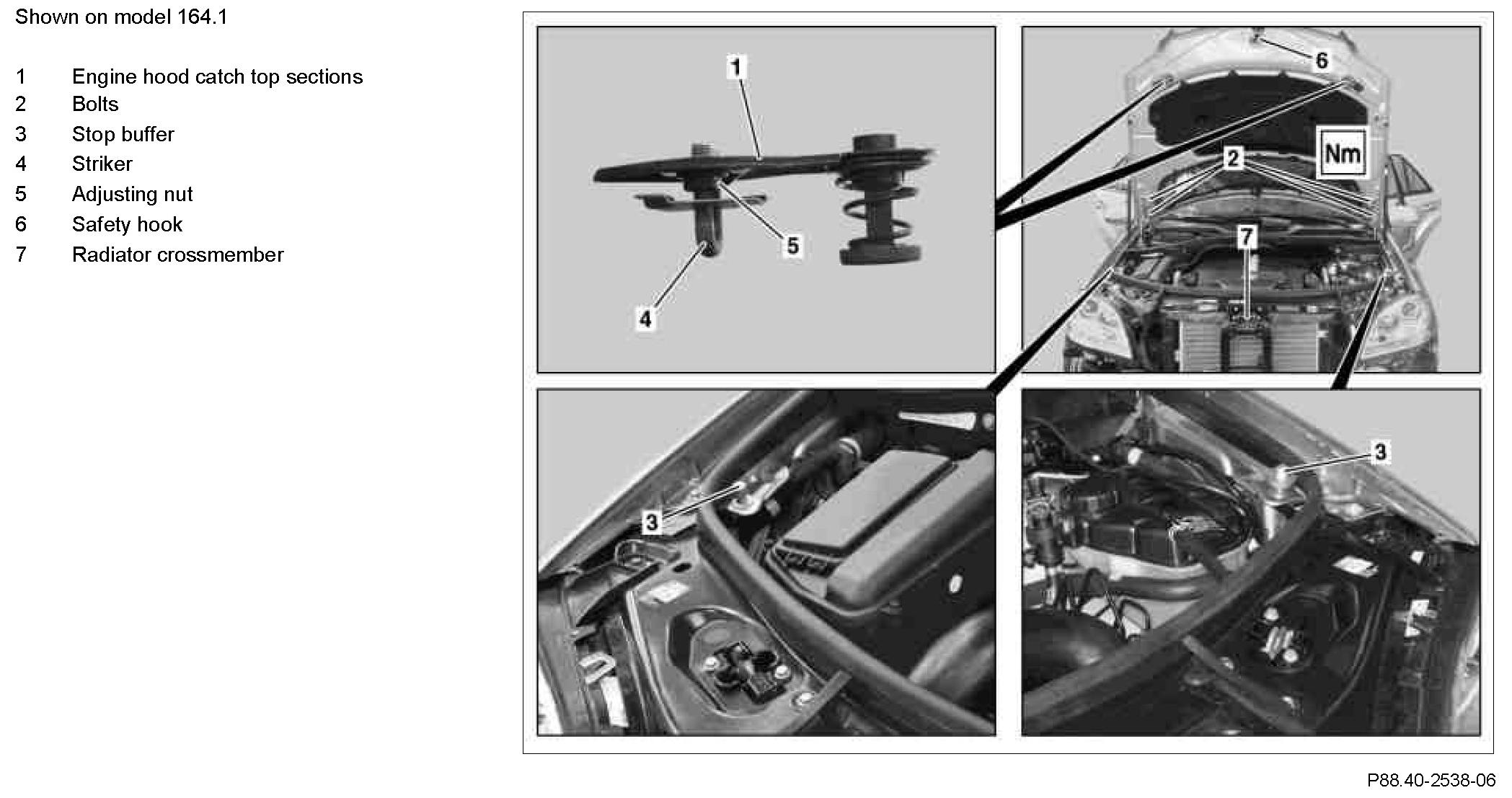

Component Identification:

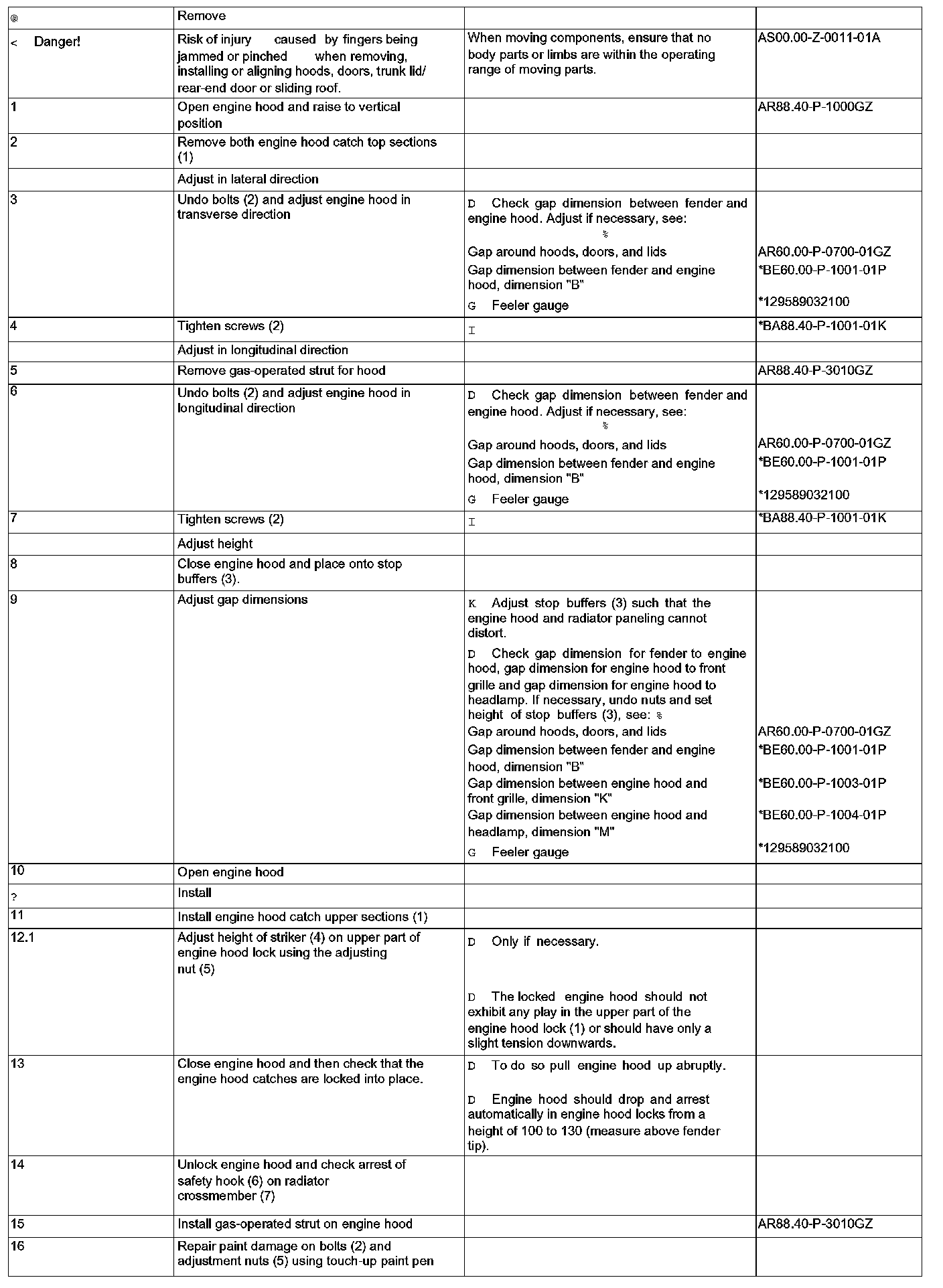

Steps 1 - 16:

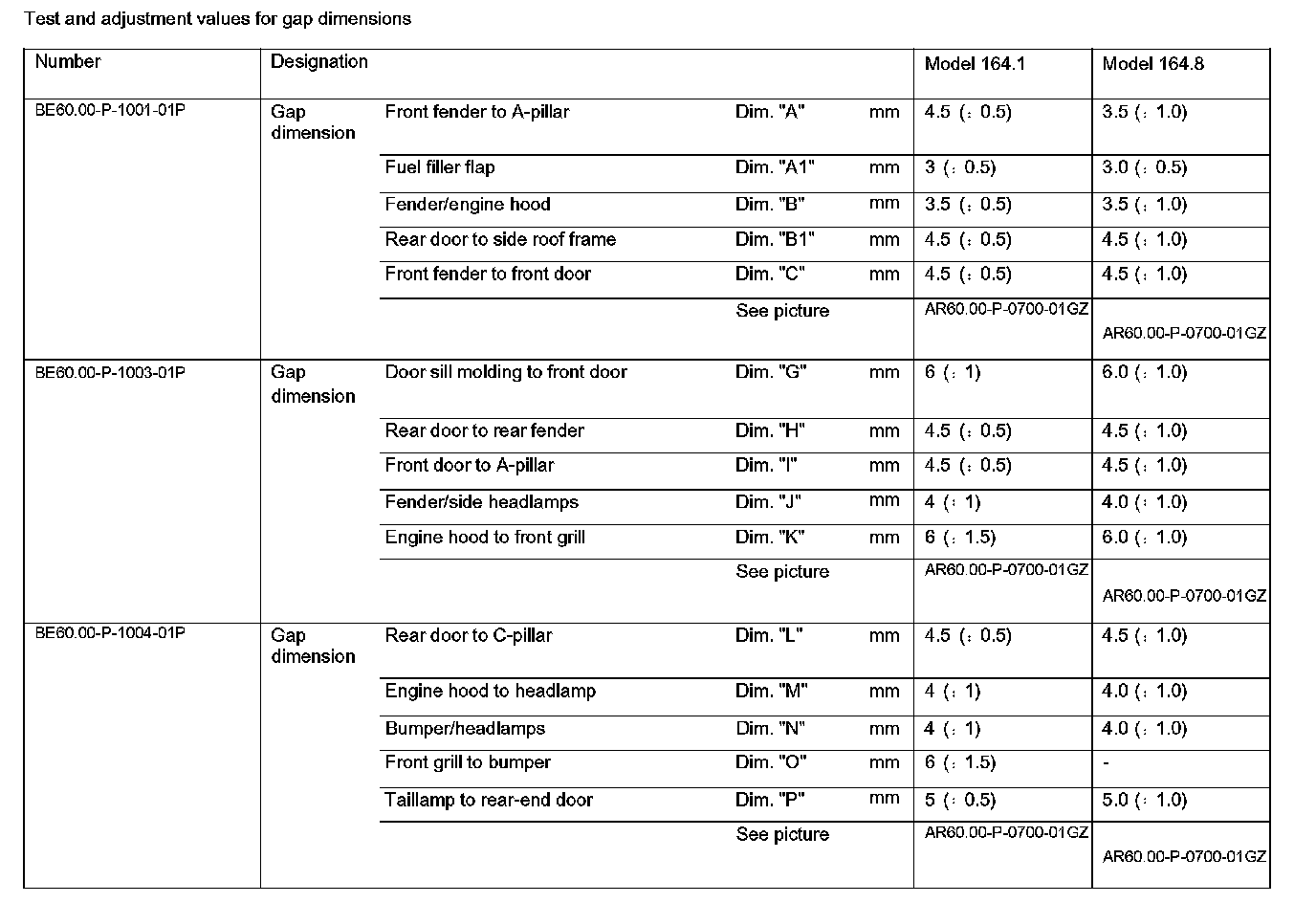

Test And Adjustment Values For Gap Dimensions:

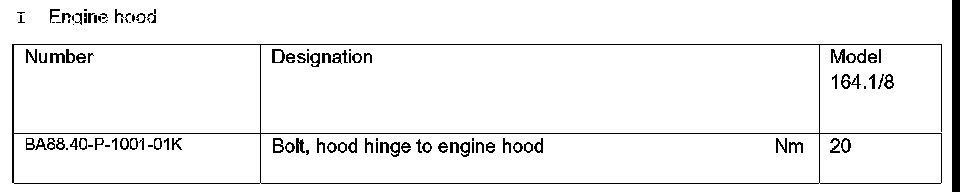

Engine Hood:

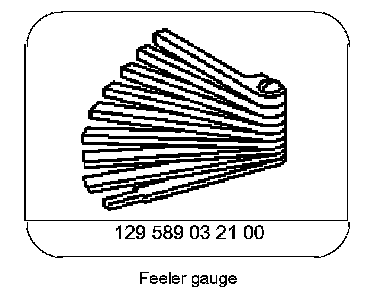

Special Tools:
