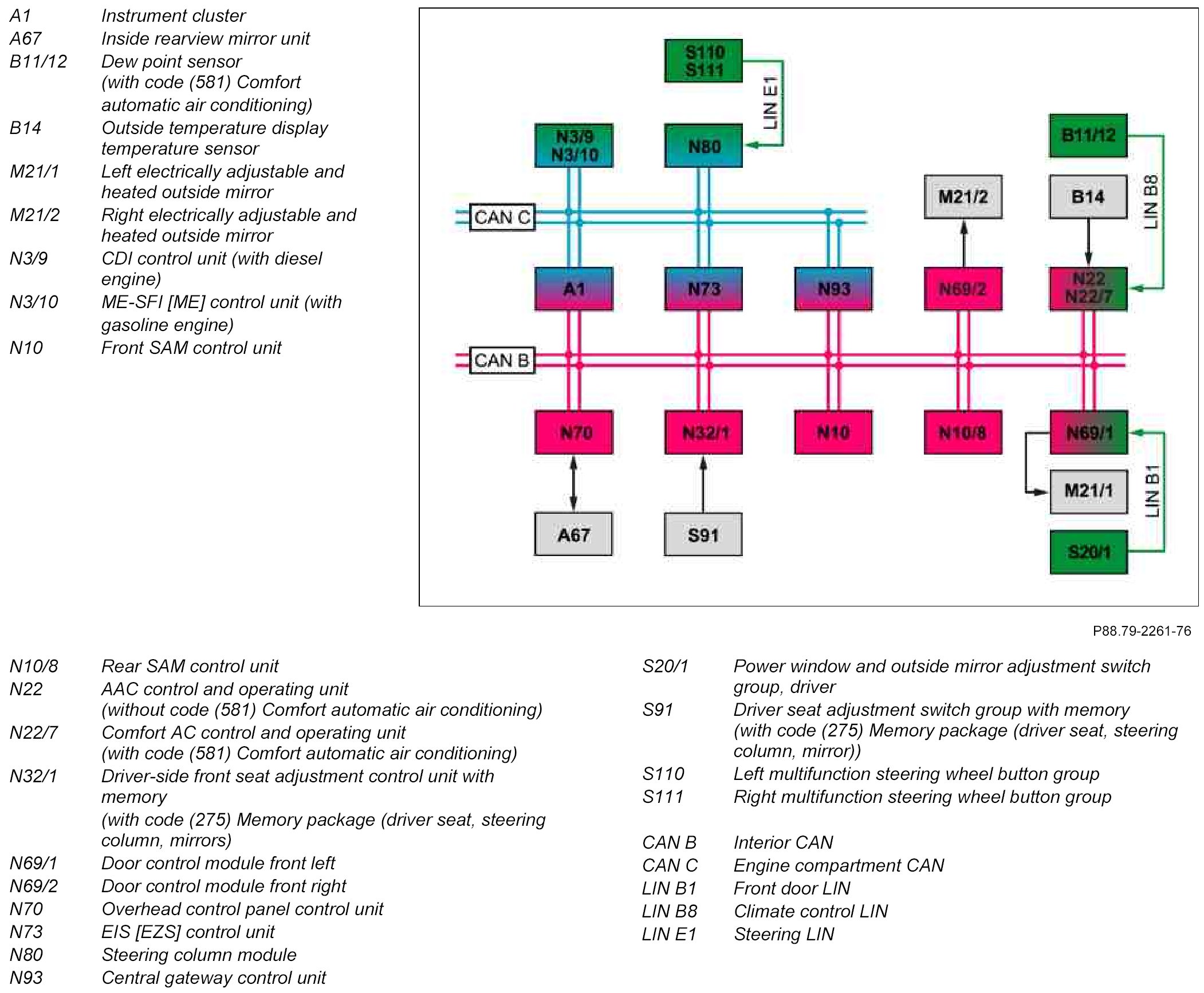

GF88.79-P-0003-02GM Electric Outside Mirrors, Block Diagram
GF88.79-P-0003-02GM Electric Outside Mirrors, Block Diagram
GF88.79-P-0003-02GM Electric Outside Mirrors, Block Diagram
- as of model year 09
Component Identification:
