Function Diagrams

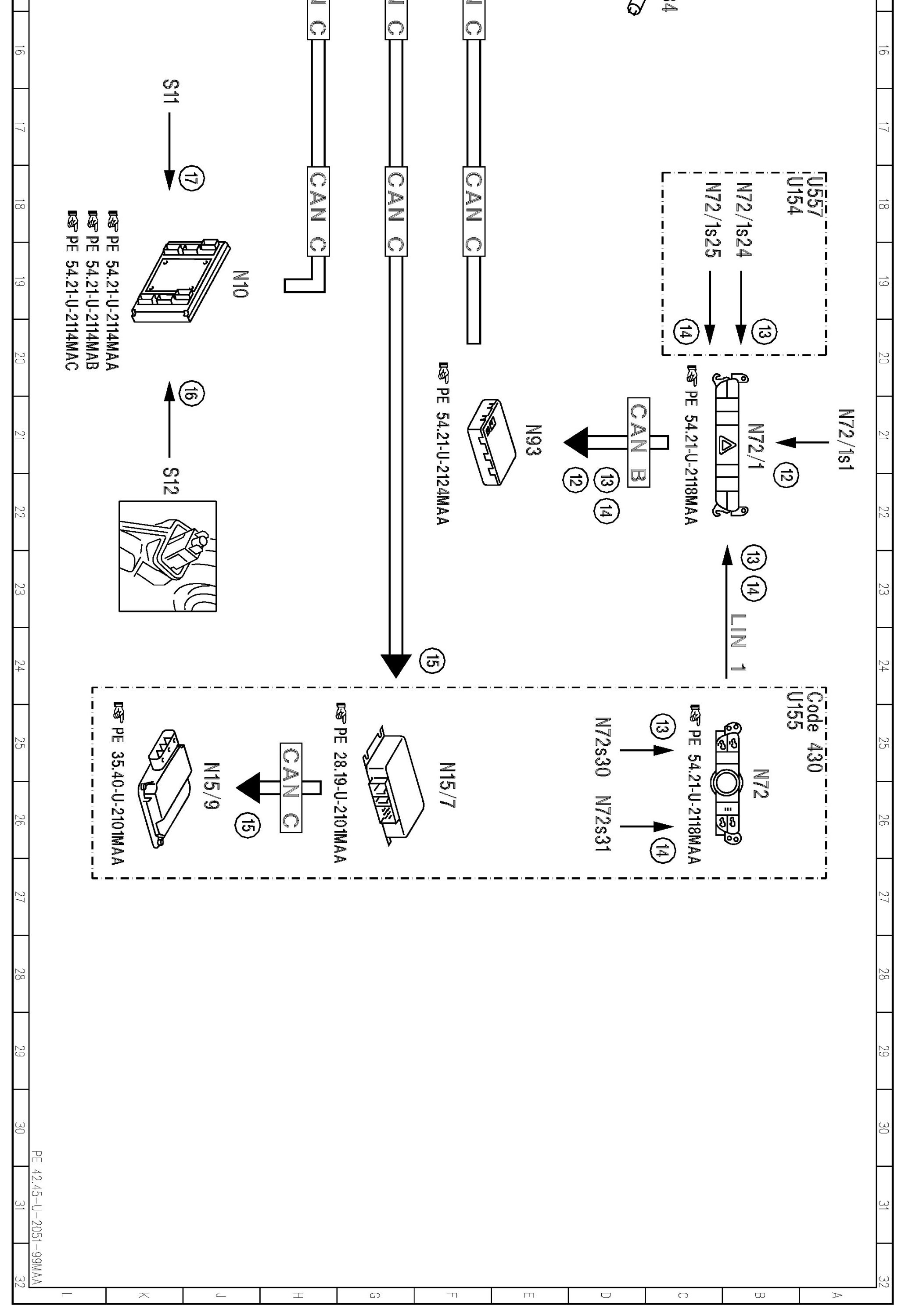

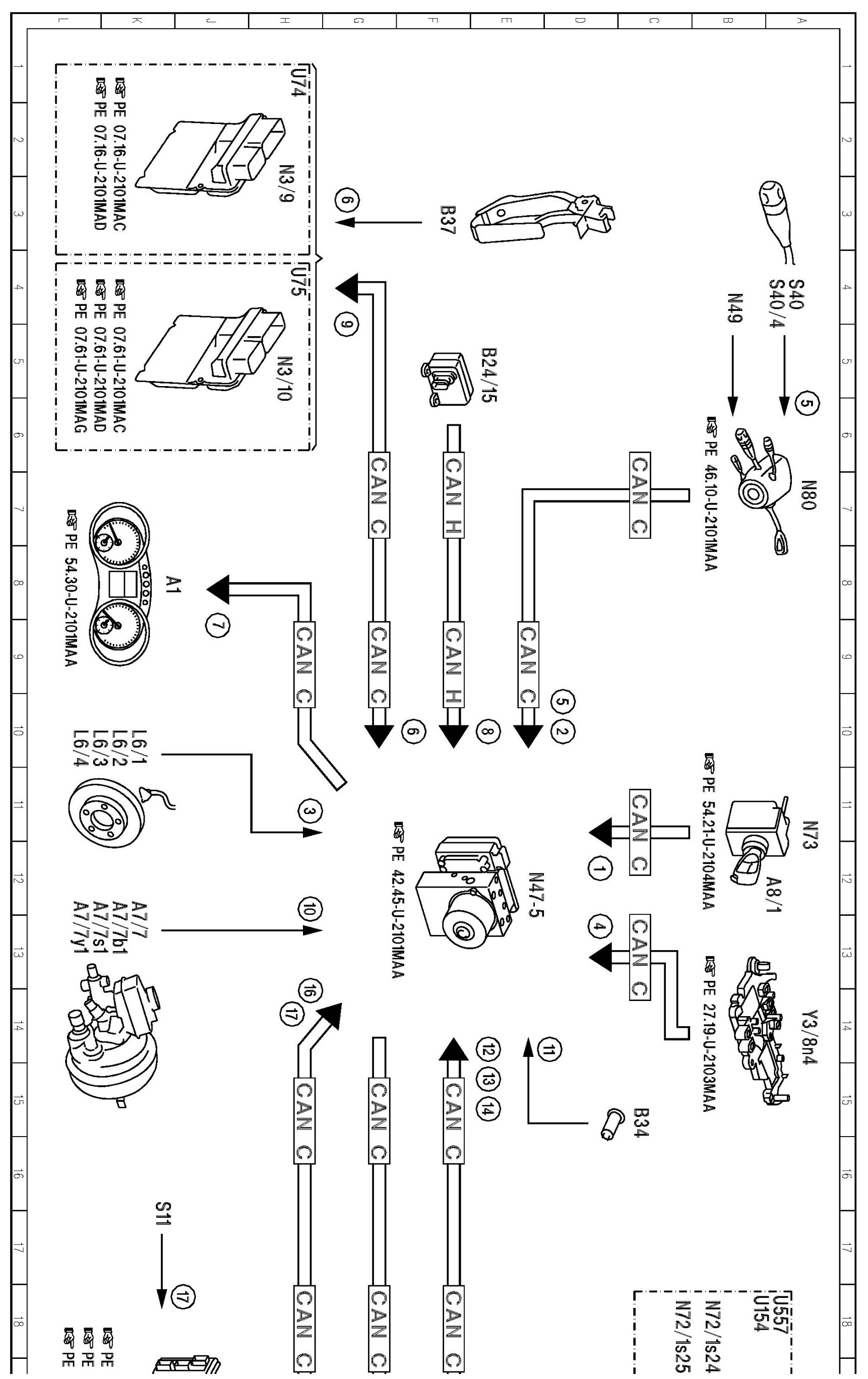

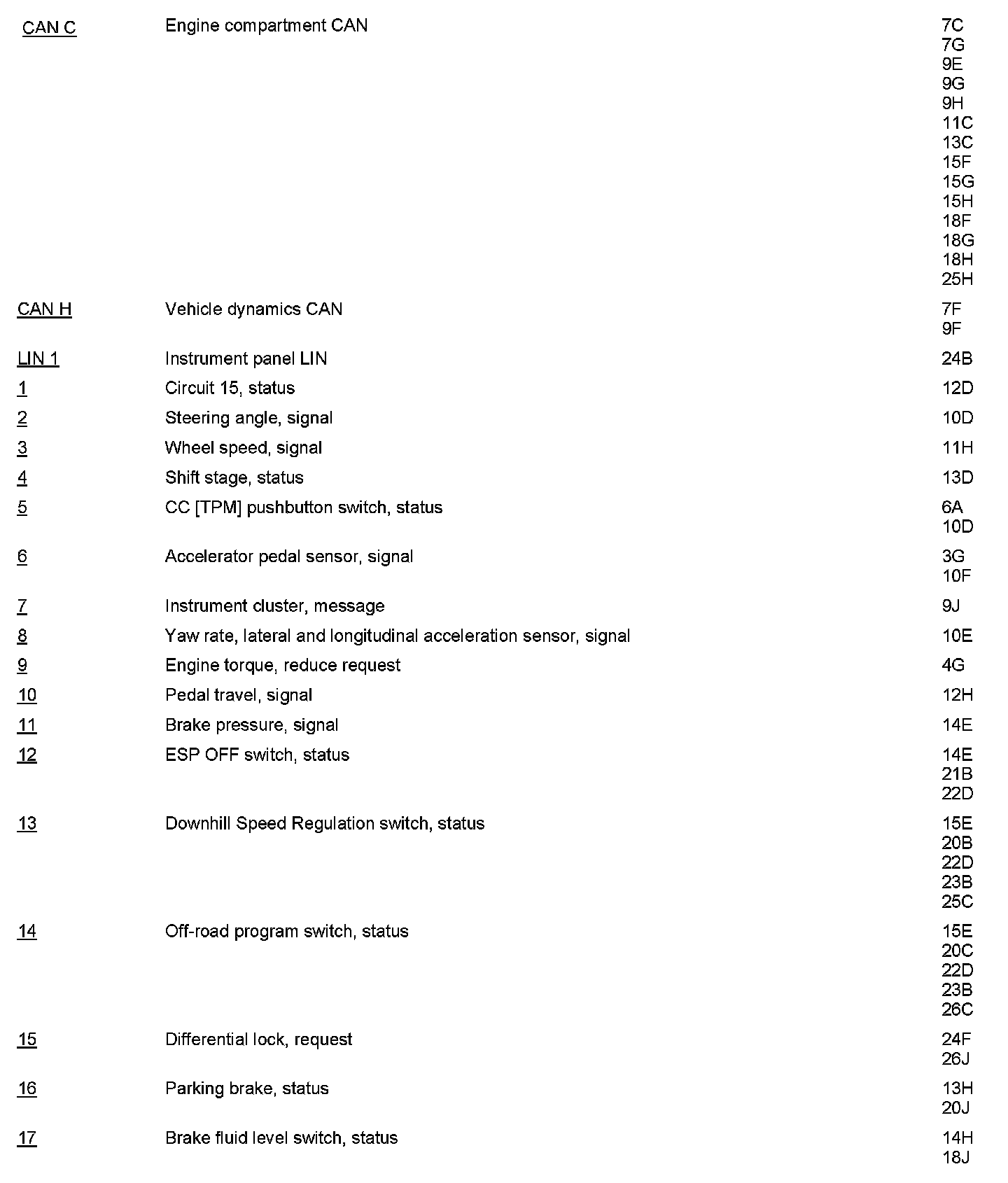

PE42.45-U-2051MAA Electrical Function Schematic For Electronic Stability Program (ESP)

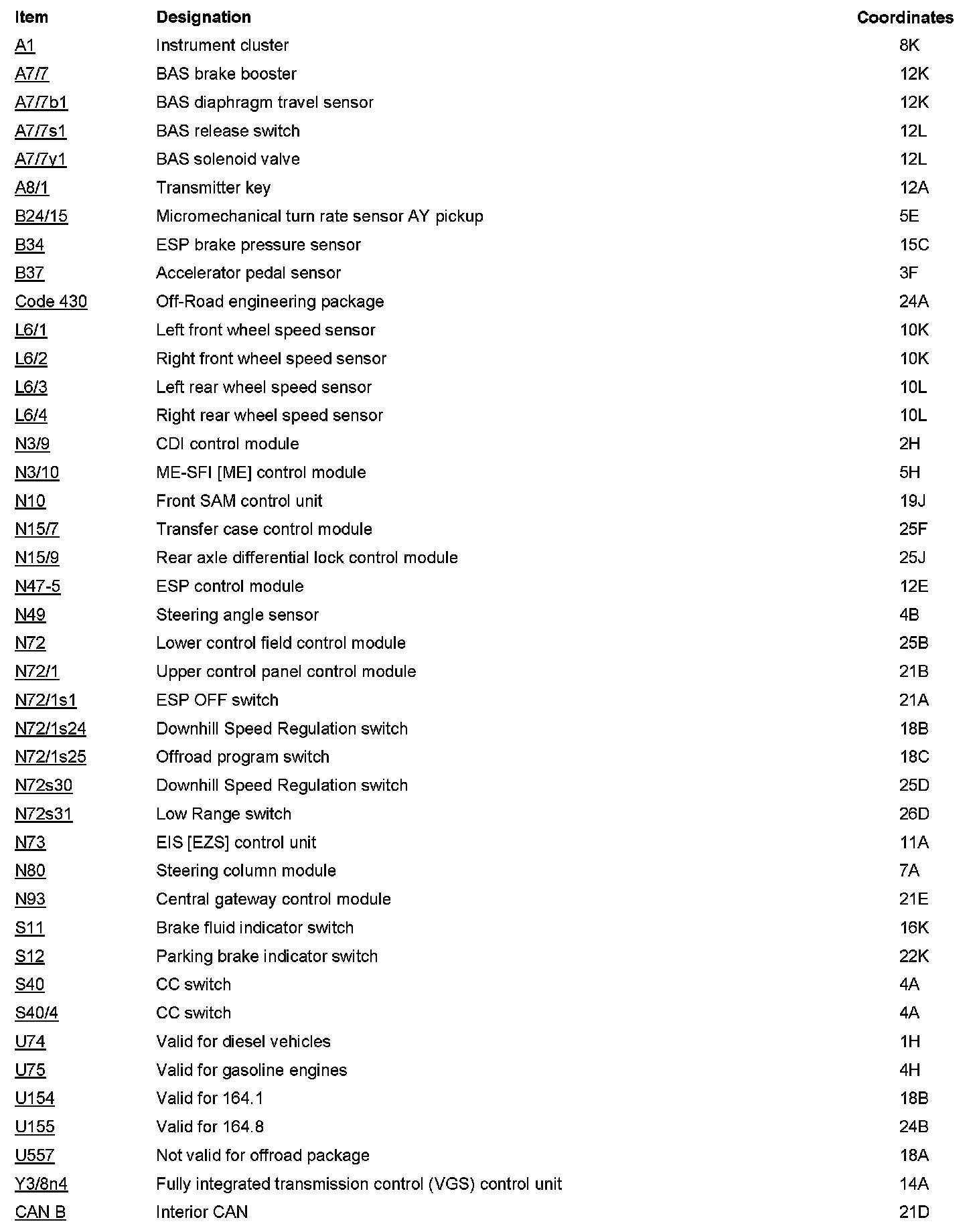

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
