Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2012
>>
GL 350 BLUETEC (164.825) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Ignition Switch
Ignition Switch

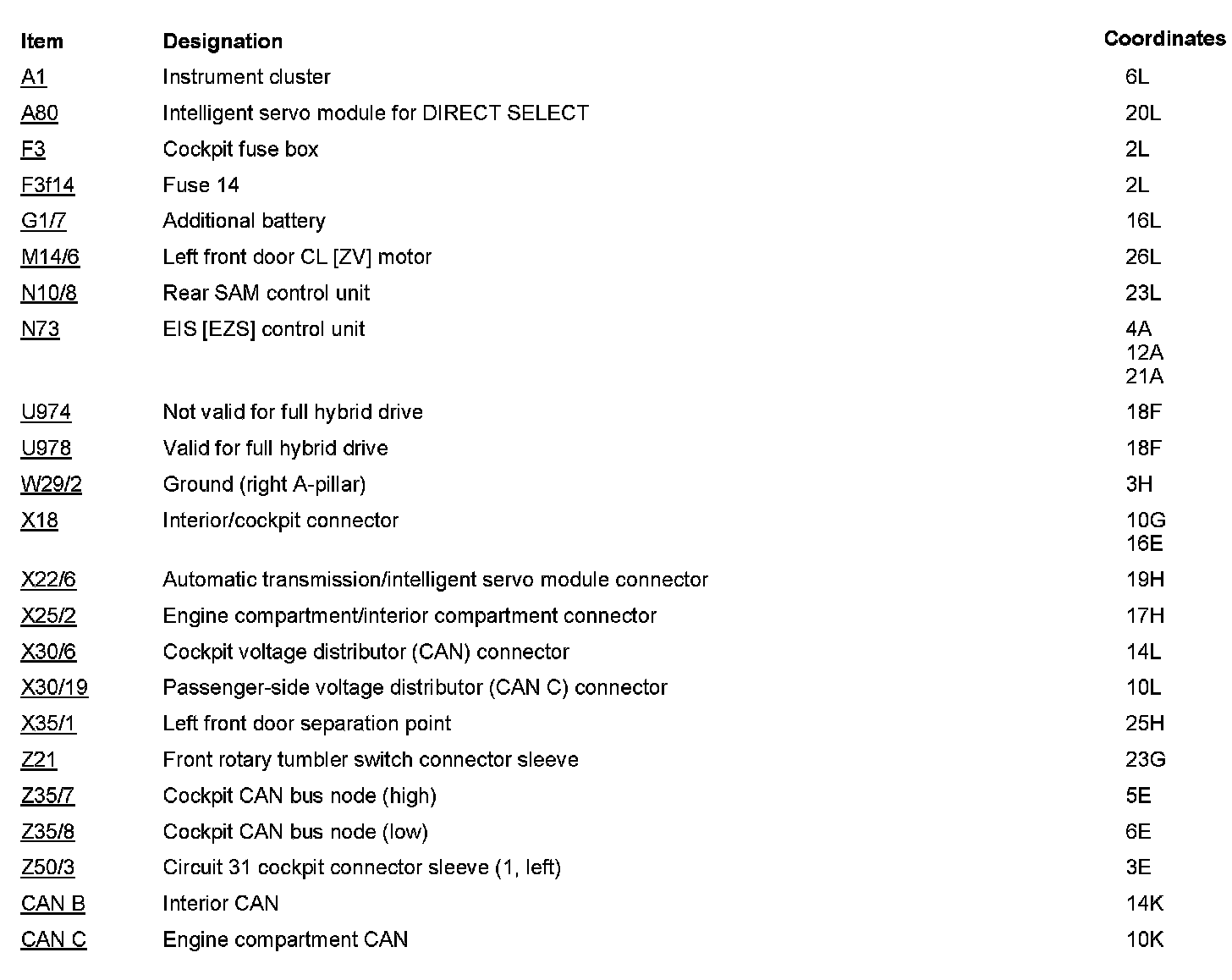

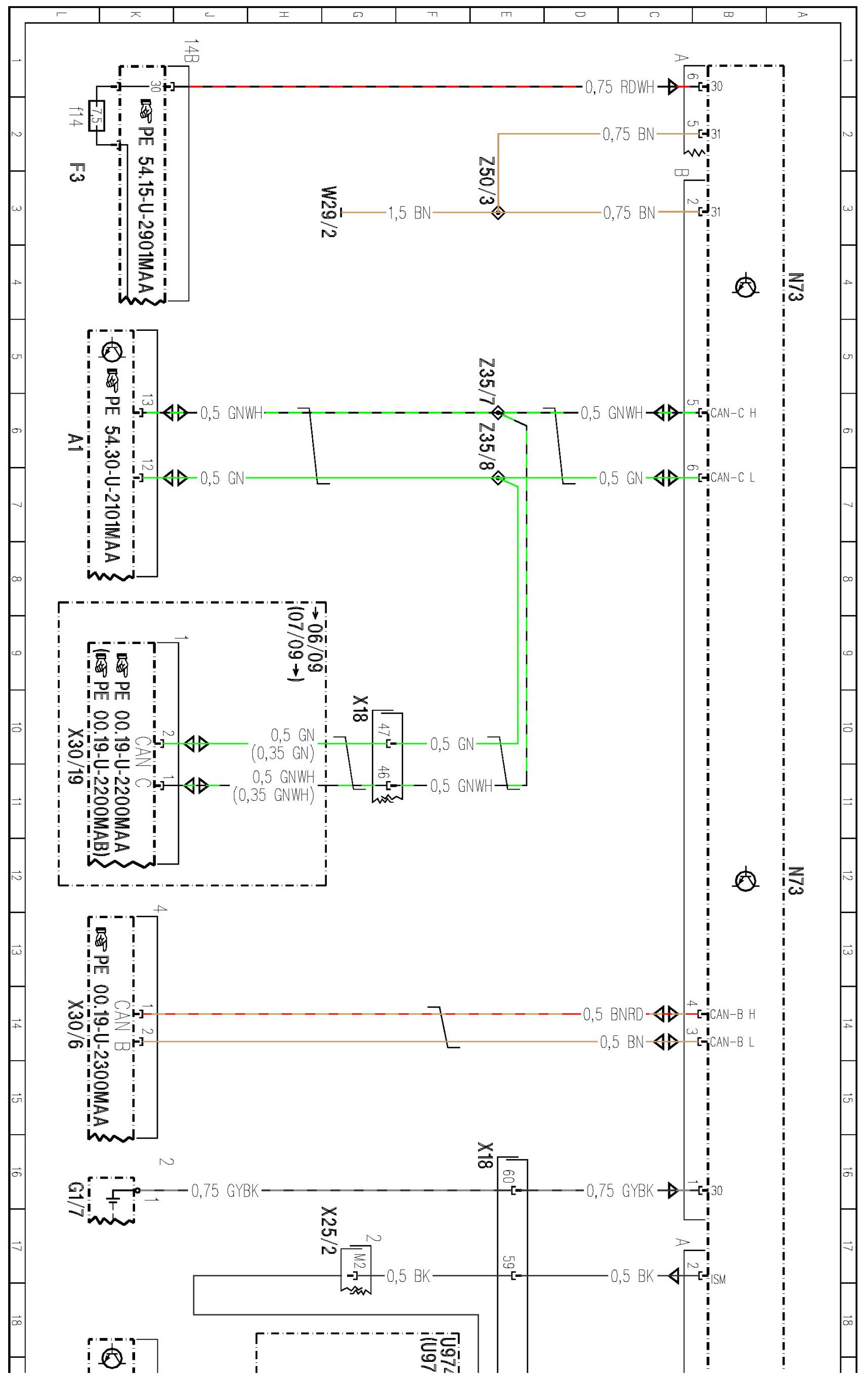

PE54.21-U-2104MAA Electronic Ignition Switch (EIS) Control Module
-
control unit N73
Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Component Locations
