AR01.00-P-1300GZB Inspect Cylinders For Leaks
AR01.00-P-1300GZB Inspect Cylinders For Leaks
AR01.00-P-1300GZB Inspect cylinders for leaks

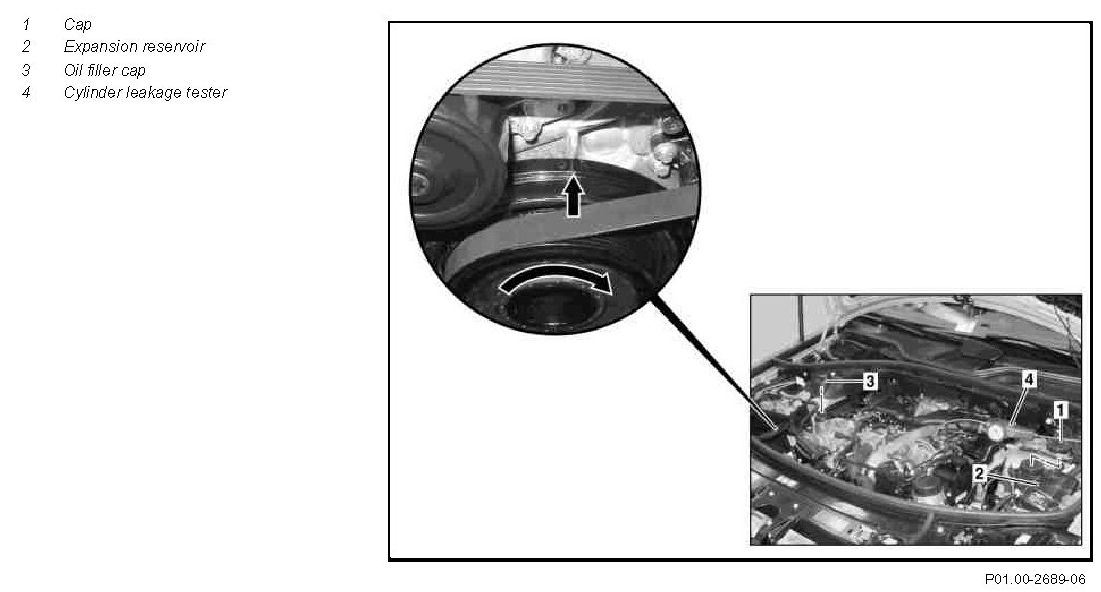

Component Identification:

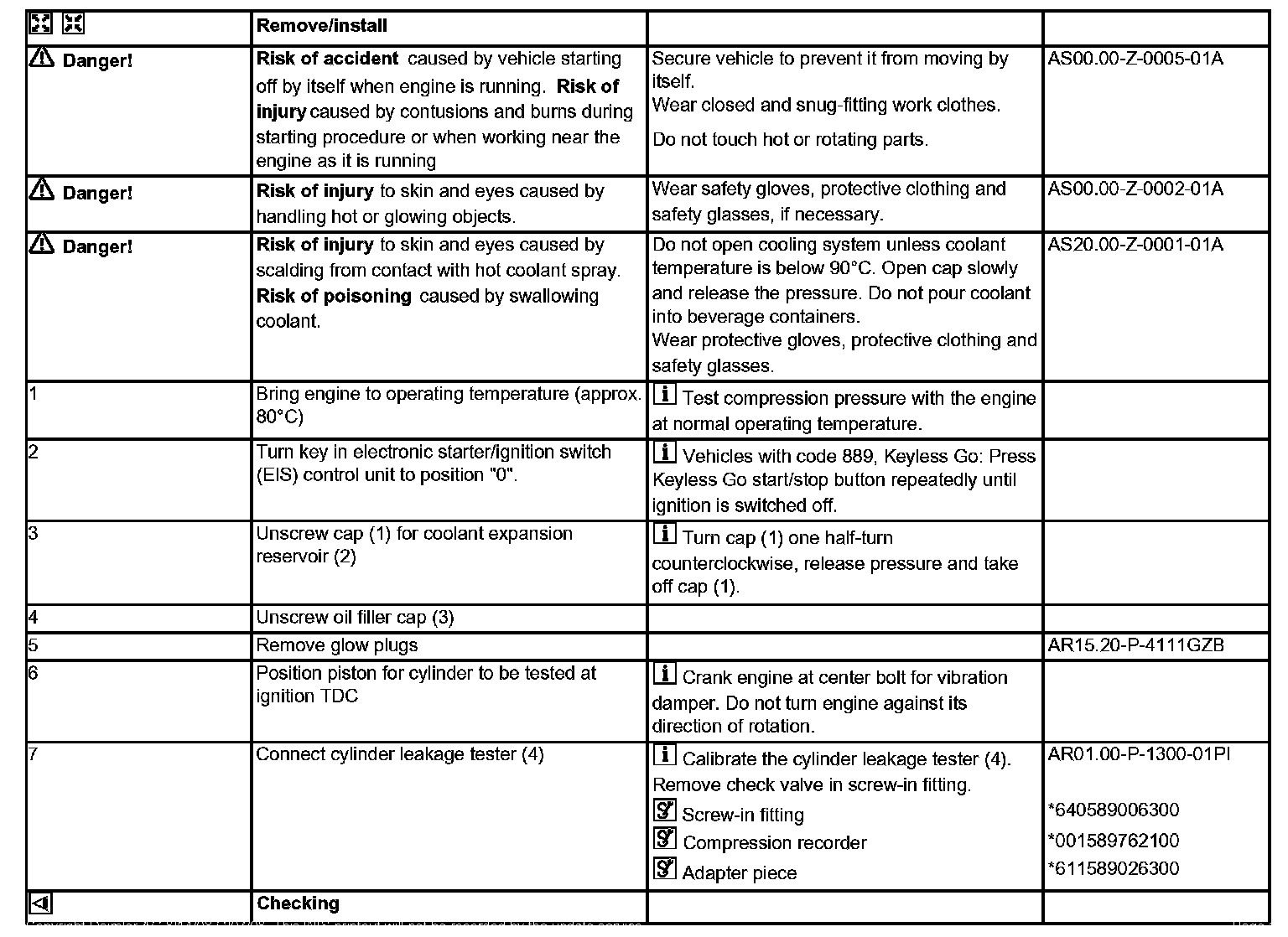

Remove/install Steps 1-7:
Remove/install Steps 8-10:

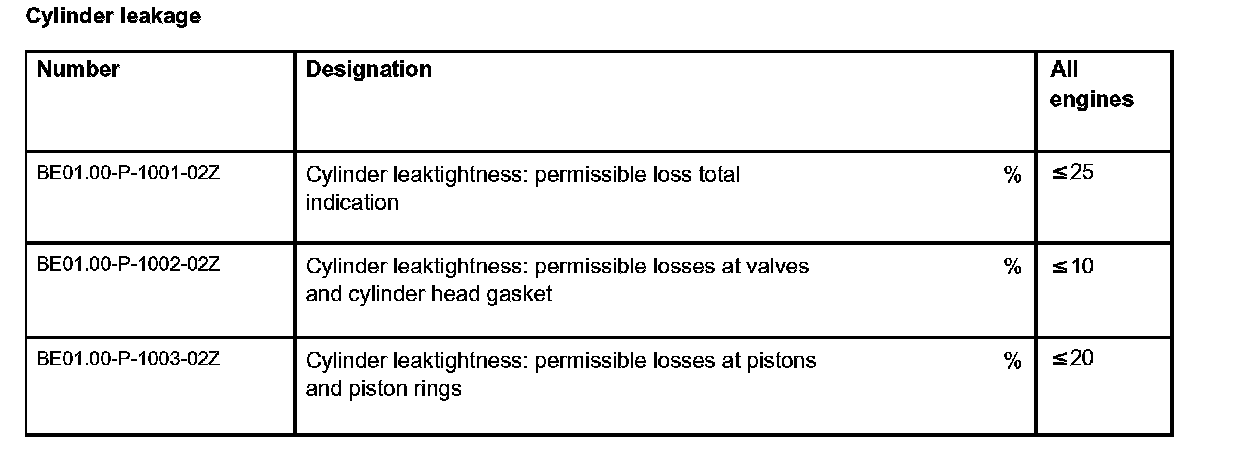

Cylinder leakage:

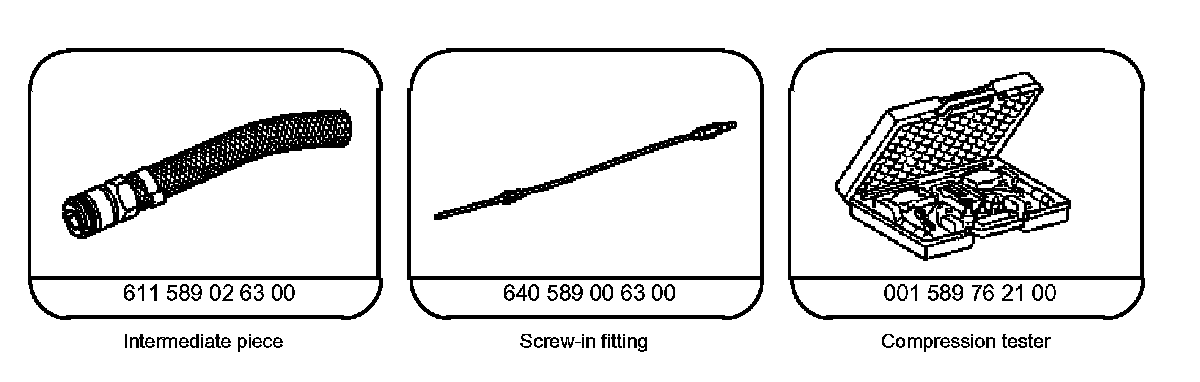

Special Tools:
