AR83.30-P-1760GZ Drain, Evacuate and Recharge Air Conditioning, Check For Proper Operation and Check For Leaks

AR83.30-P-1760GZ Drain, Evacuate and Recharge Air Conditioning, Check For Proper Operation and Check For Leaks
MODEL 164
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

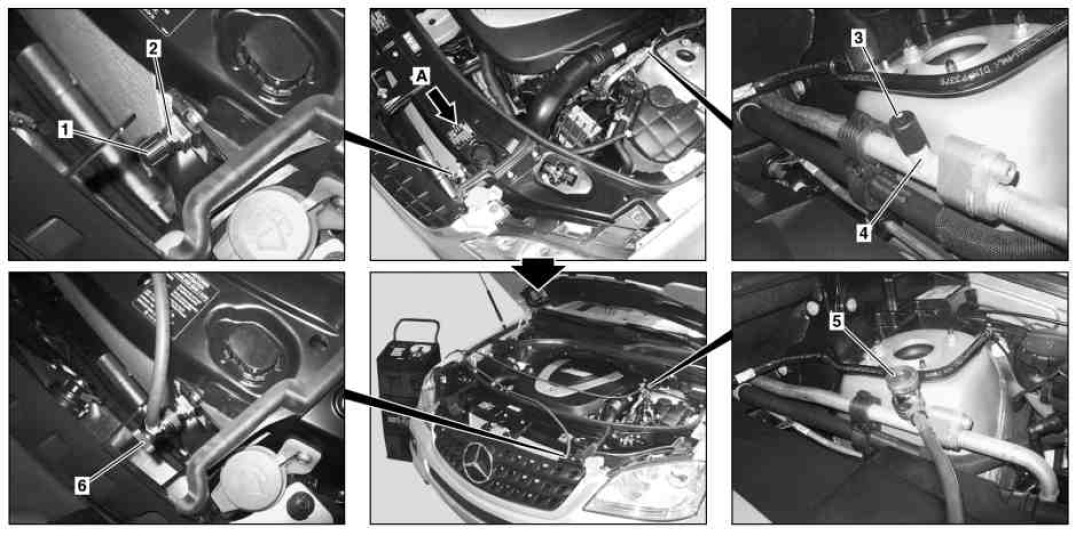

Illustrated on model 164.186
1 Plug
2 Filling connection of high pressure line
3 Plug
4 Filling connection of low-pressure line
5 Filling equipment connection
6 Filling equipment connection
