GF40.15-P-0001-07GM Tire Pressure Monitor (TPM (RDK)) Block Diagram

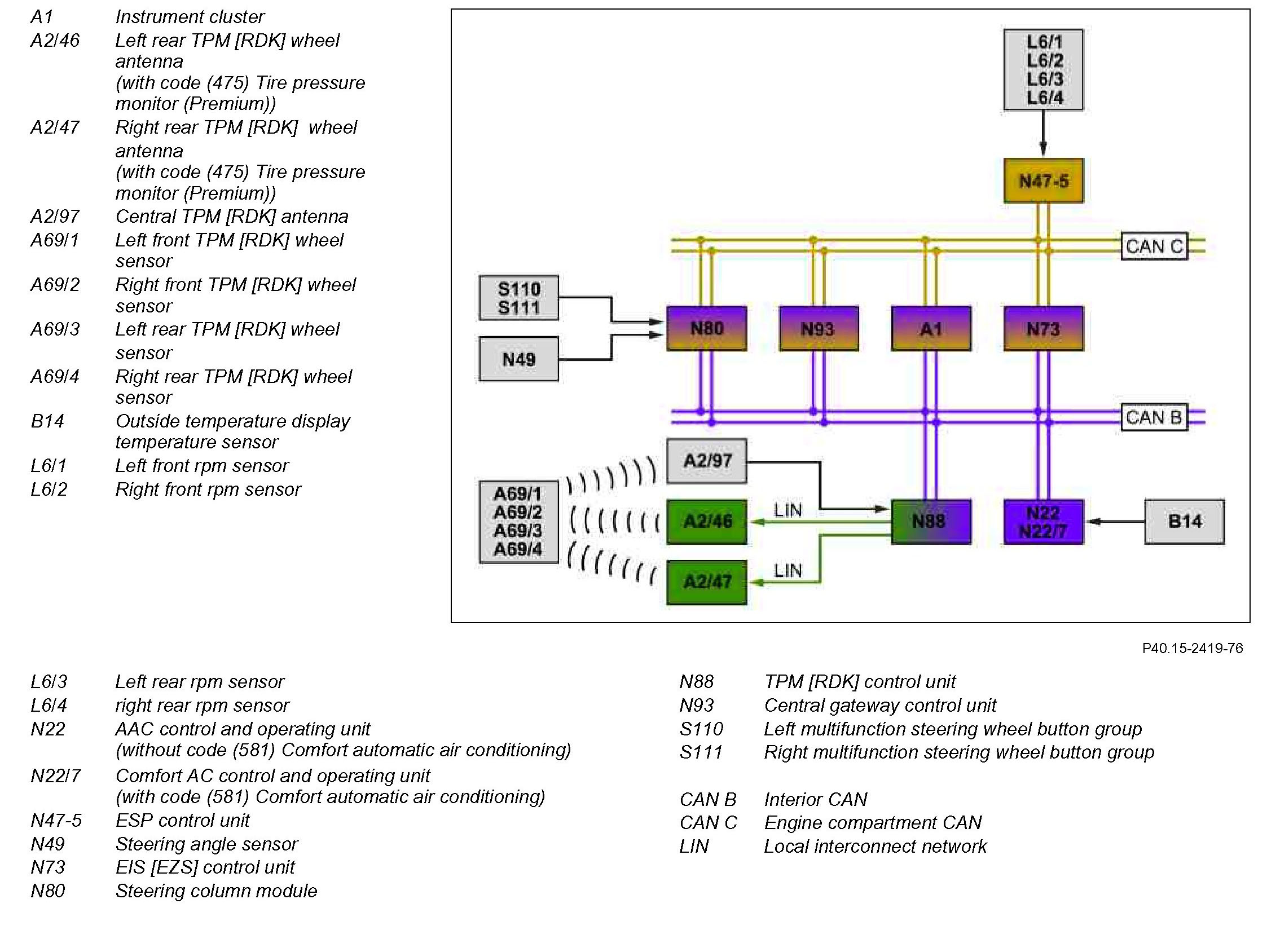

GF40.15-P-0001-07GM Tire pressure monitor (TPM [RDK]) block diagram
- with CODE (470) Tire pressure monitor (base)
- with CODE (475) Tire pressure monitor (premium)



Component Identification:
