Diagnostic Aids

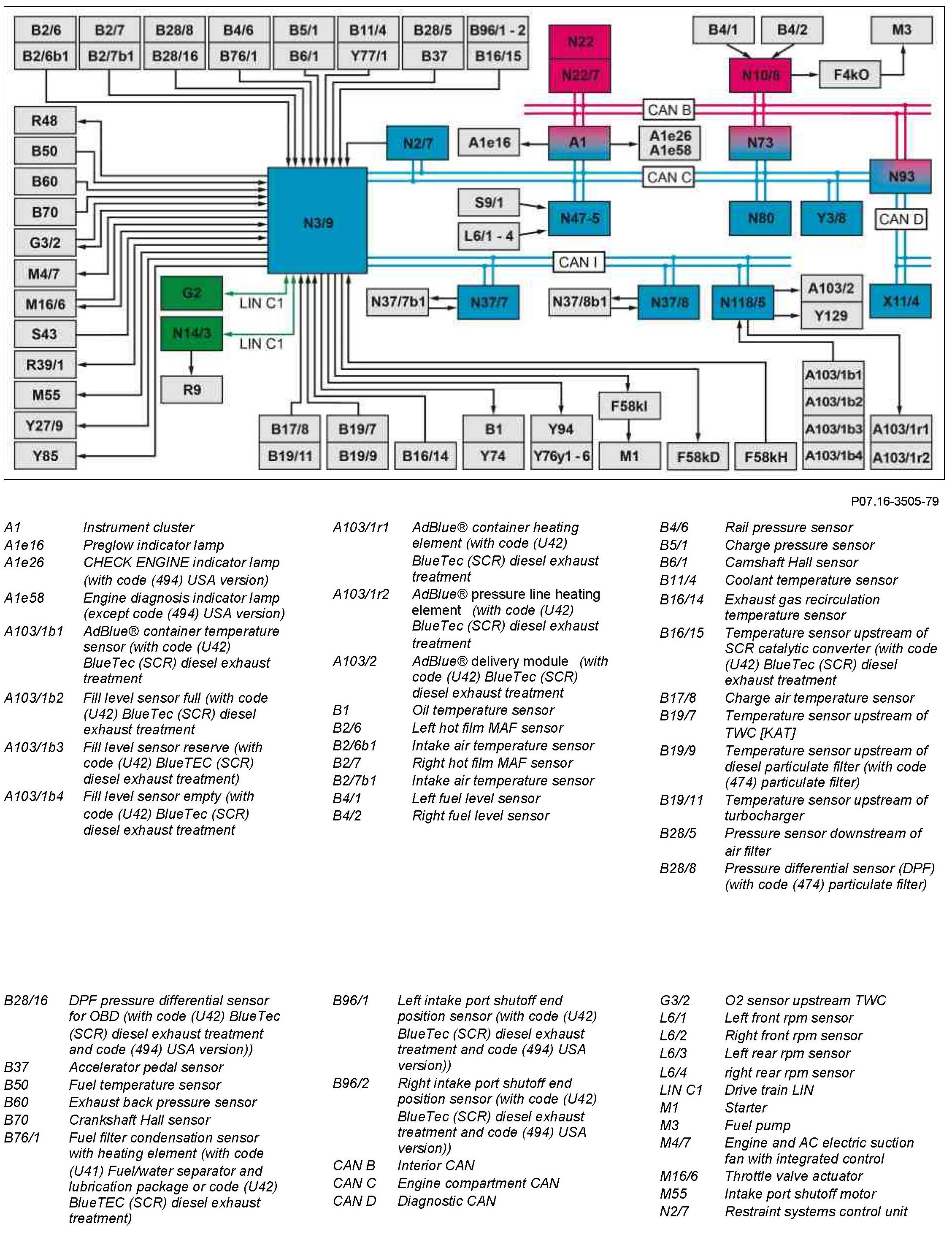

GF07.16-P-0001-08OGG Common Rail Diesel Injection (CDI) Block Diagram
- as of model year 09

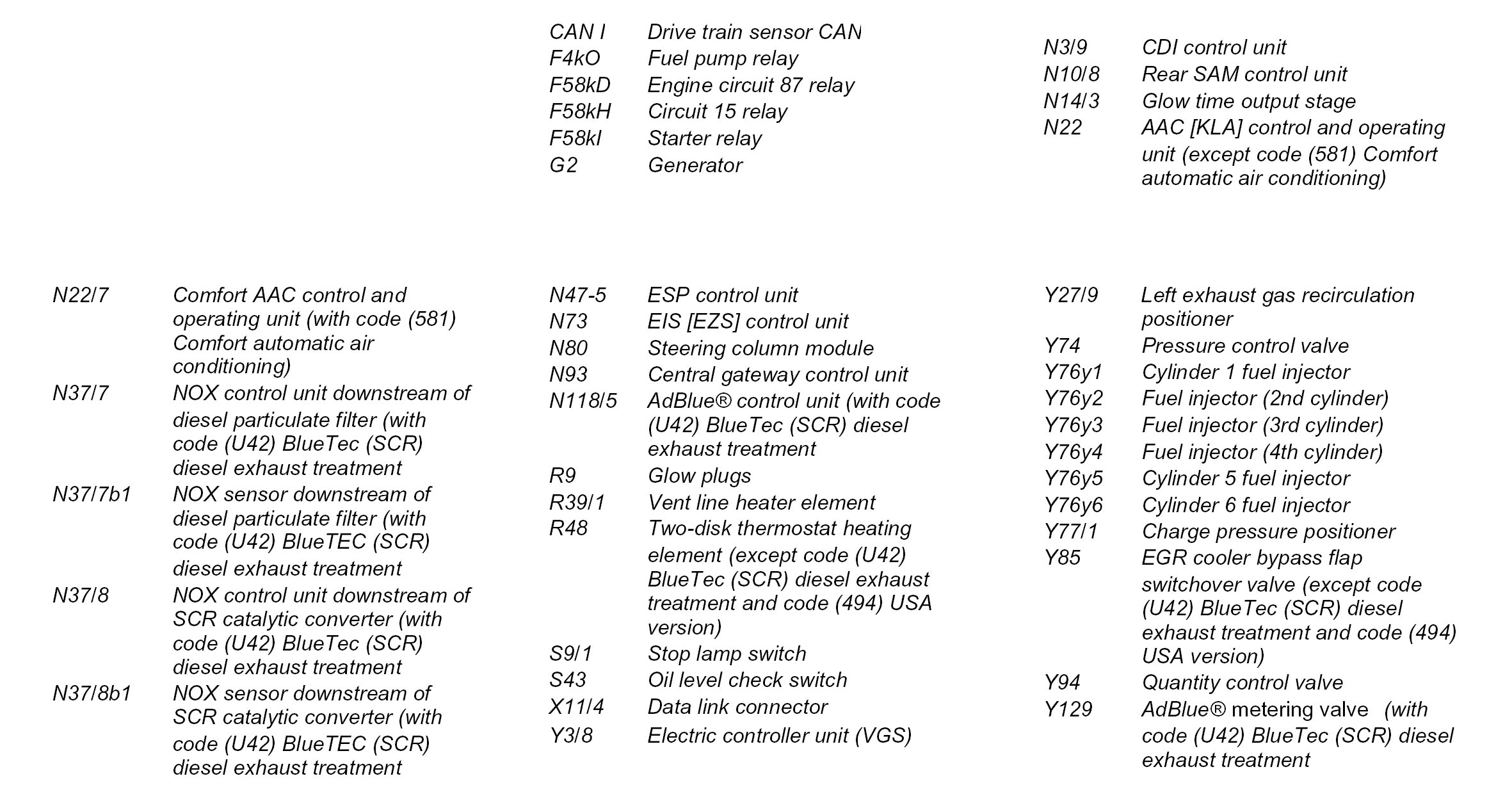

Component Identification (Part 1):
Component Identification (Part 2):
GF07.16-P-0001-08OGG Common Rail Diesel Injection (CDI) Block Diagram
- as of model year 09
