Electrical Diagrams

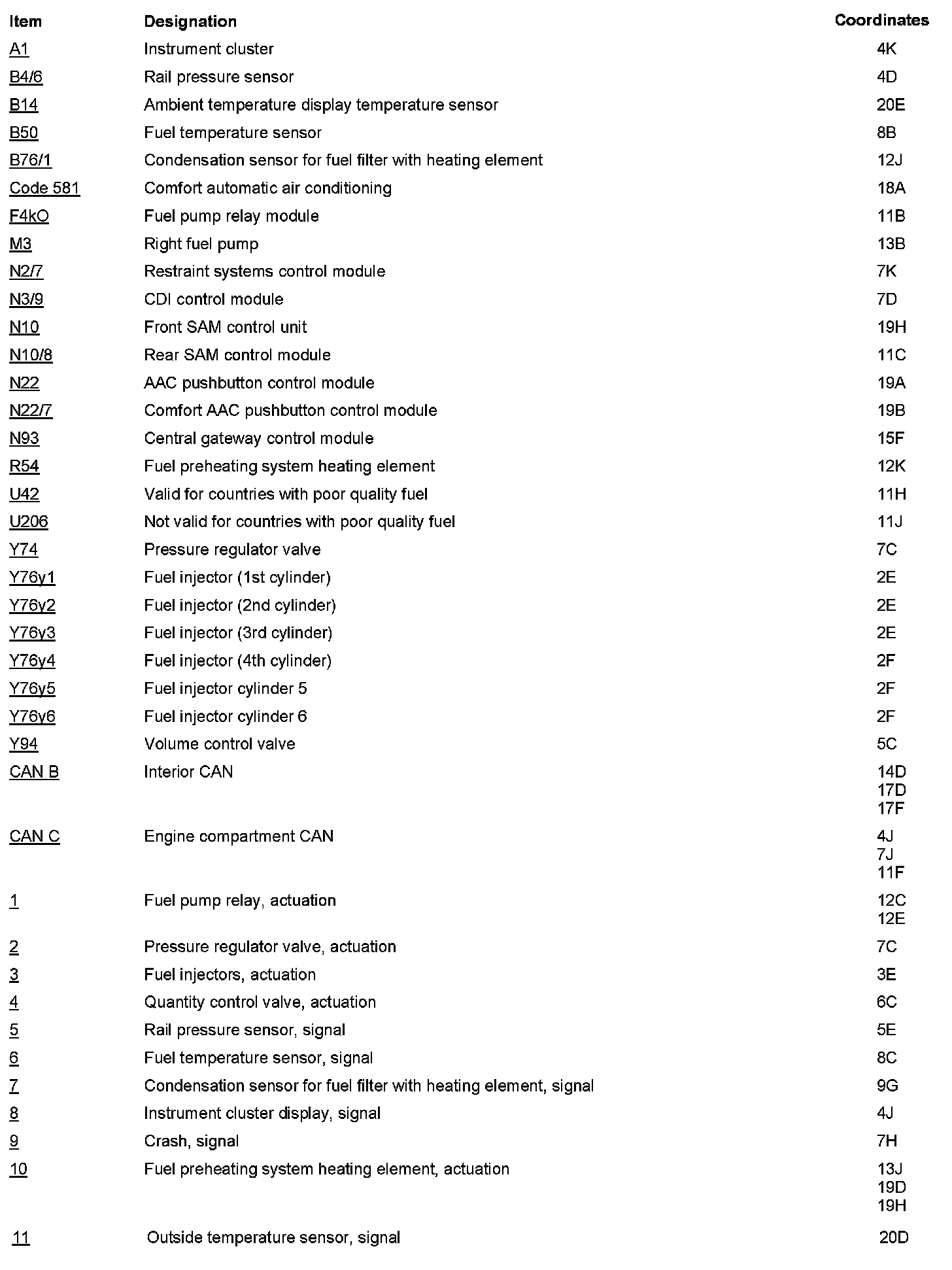

PE47.00-U-2050MAA Electrical Function Diagram For Fuel Supply
- with CODE (U42) BLUETEC diesel exhaust gas cleaning














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
