GF32.22-P-5103GZ Compressor Unit, Component Description

GF32.22-P-5103GZ compressor unit, component description
- with CODE (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS) [model 164.1/8]
- with CODE (489) AIRmatic (air suspension with level adjustment without ADS adaptive damping system) [model 164.8]
- with CODE (494) USA version [model 164.8]

Component Identification:

Location

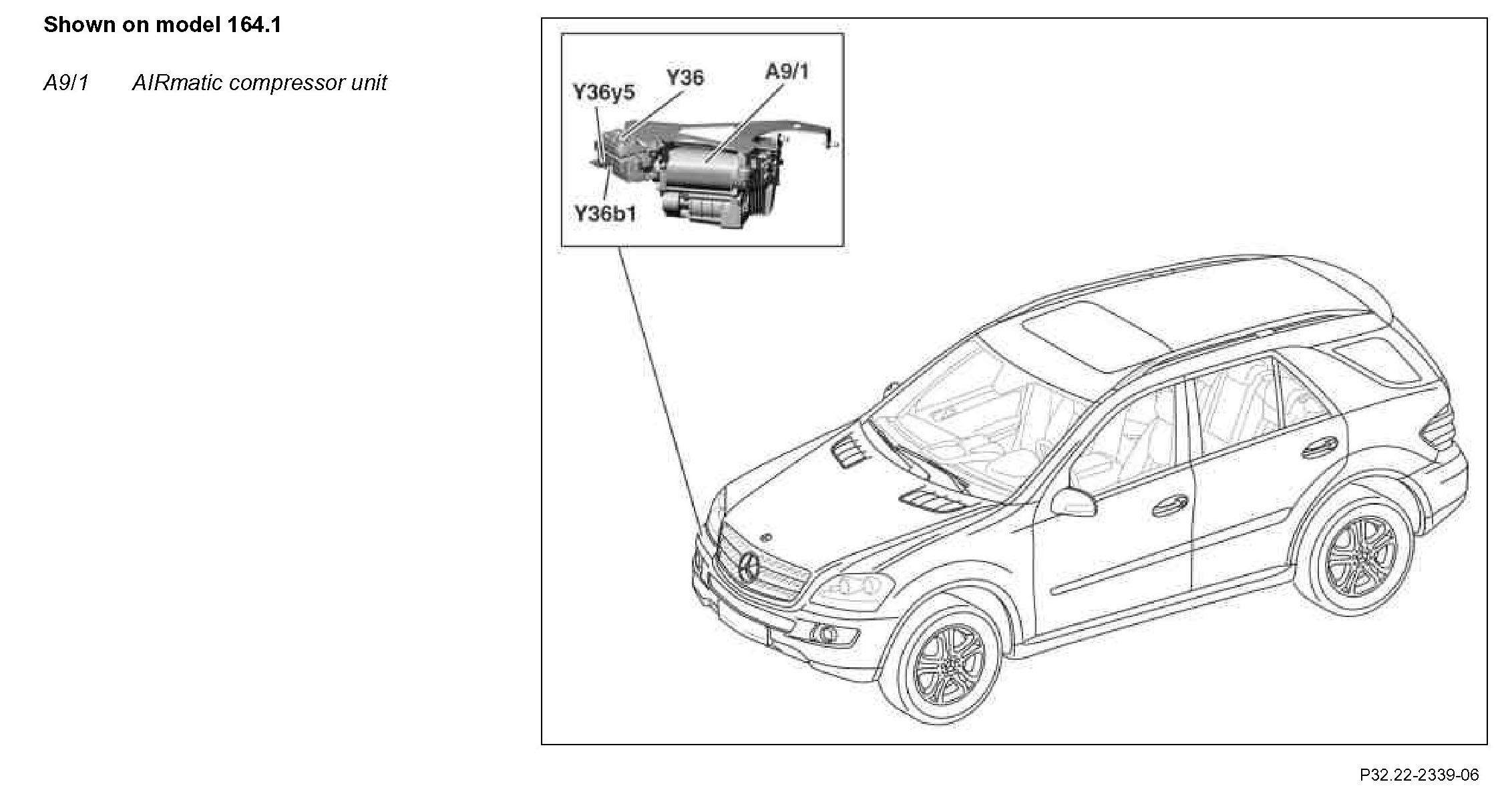

The AIRmatic compressor unit is located on a bracket on the right behind the bumper.

Task
The AIRmatic compressor unit is used to generate the air pressure required to raise the vehicle.

Function
The compressor motor is not actuated directly by the AIRmatic control unit (N51), but rather the load current is switched via the AIRmatic relay (K67). Furthermore, deflating valve is integrated into the AIRmatic compressor unit, and it is used to lower the vehicle level.

If in the event of a fault the pressure in the AIRmatic compressor unit should be too high, then this is automatically reduced by means of an integrated, mechanical pressure relief valve.
