GF32.22-P-5104GZ Pressure Sensor, Component Description

GF32.22-P-5104GZ Pressure sensor, component description
- with CODE (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS) [model 164.1/8]
- with CODE (489) AIRmatic (air suspension with level adjustment without ADS adaptive damping system) [model 164.8]
- with CODE (494) USA version [model 164.8]

Component Identification:

Location

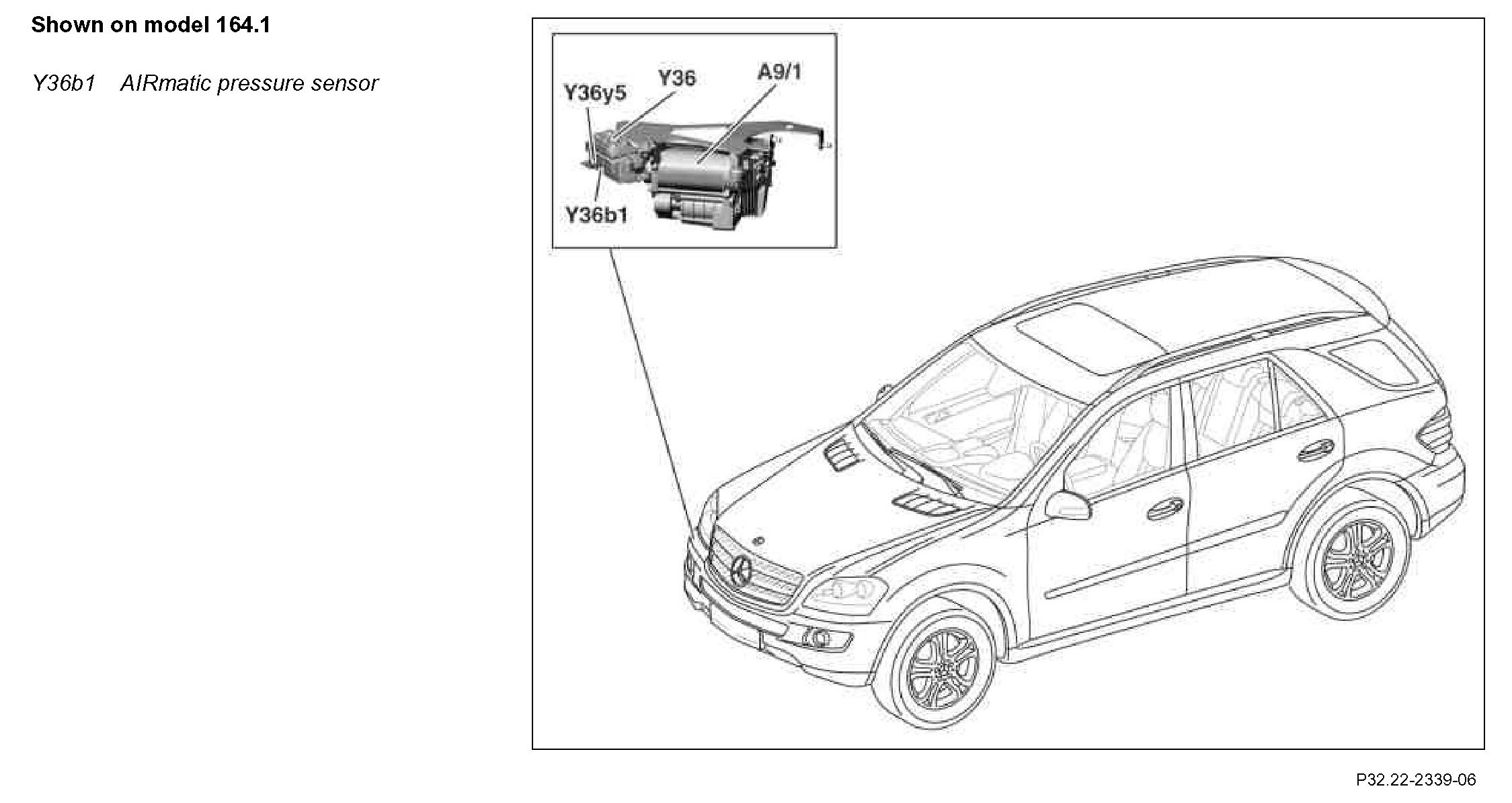

The AIRmatic pressure sensor is located in the AIRmatic valve unit (Y36), which is located on a bracket behind the right bumper.

Task
The AIRmatic pressure sensor records the system pressure and the central reservoir pressure as a priority.

It is used for plausibility checks.

With selected actuation of the individual valves in the suspension struts the pressure of each individual suspension strut can be measured by the AIRmatic pressure sensor.

Example: To record the pressure in the left front suspension strut, the AIRmatic compressor unit (A9/1) must be switched off, the AIRmatic pressure reduction valve (A9/1y1) closed, the AIRmatic central reservoir charge valve (Y36y5) closed and the valve of the left front suspension strut opened.
