Home >> Mercedes Benz Truck >> 2012 >> GL 350 BLUETEC (164.825) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> GF27.10-P-0001-08AHZ Automatic Transmission (AT), Location of Electronic/Electronic Components

GF27.10-P-0001-08AHZ Automatic Transmission (AT), Location of Electronic/Electronic Components



GF27.10-P-0001-08AHZ Automatic transmission (AT), location of electronic/electronic components
- Model 164.1
- TRANSMISSION 722.902/903/904/906/907
- as of model year 09

- Model 164.8
- TRANSMISSION 722.902/903/904
- as of model year 09

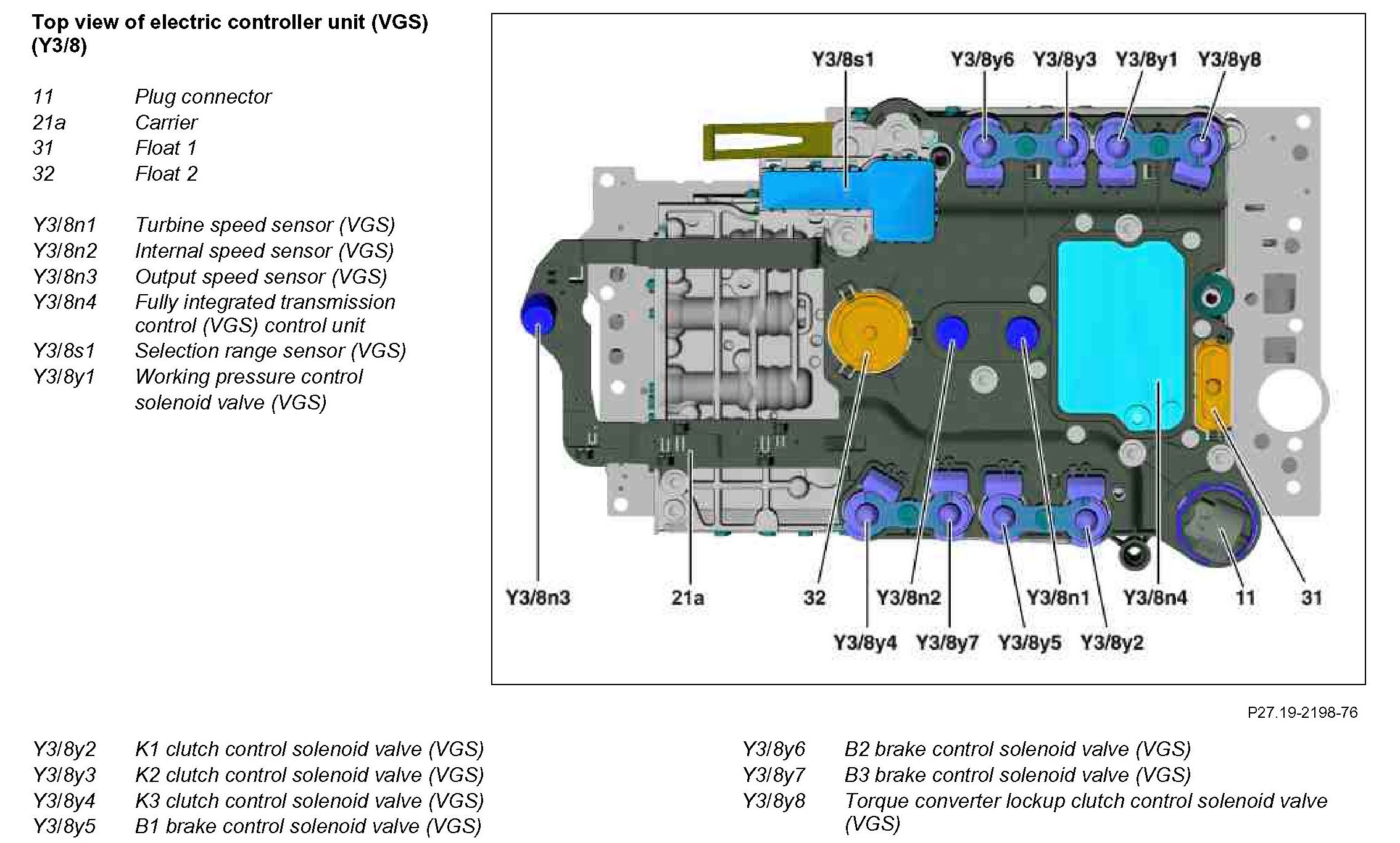

Component Identification:

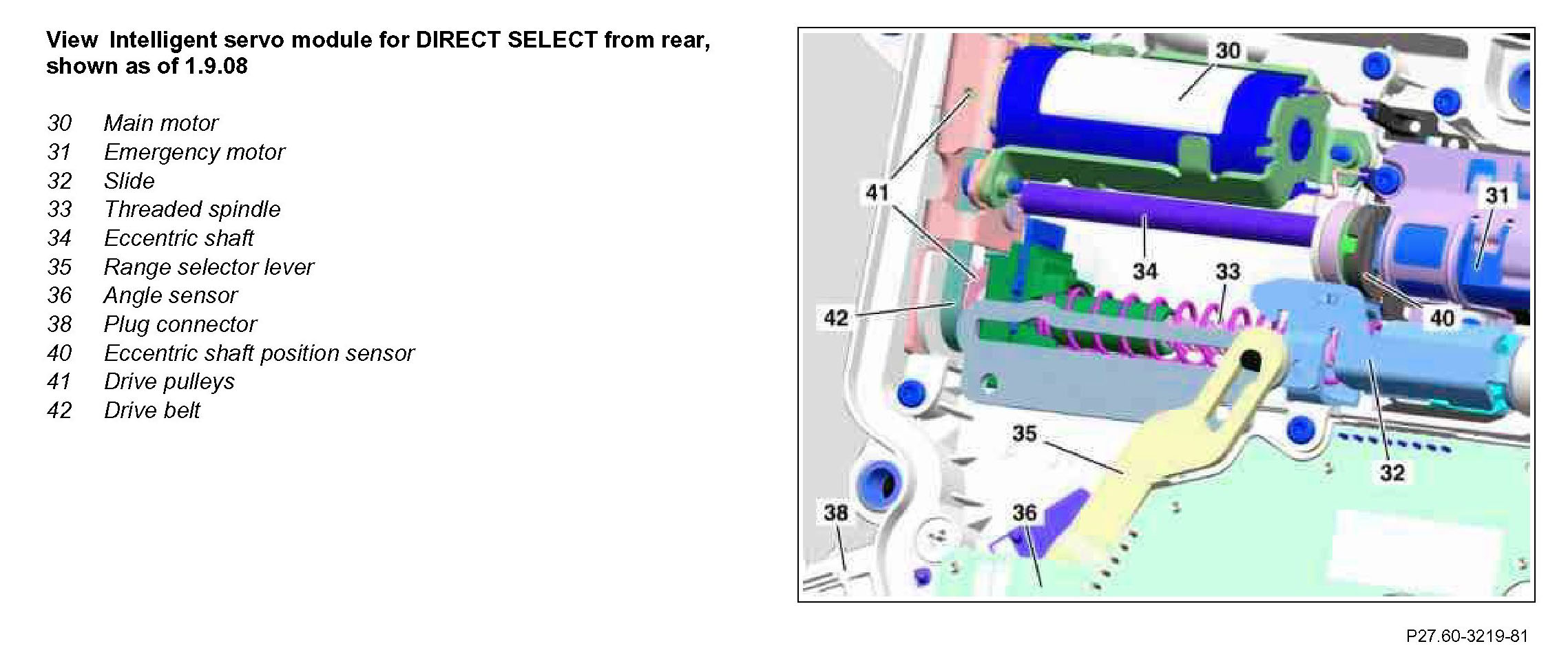

Component Identification:

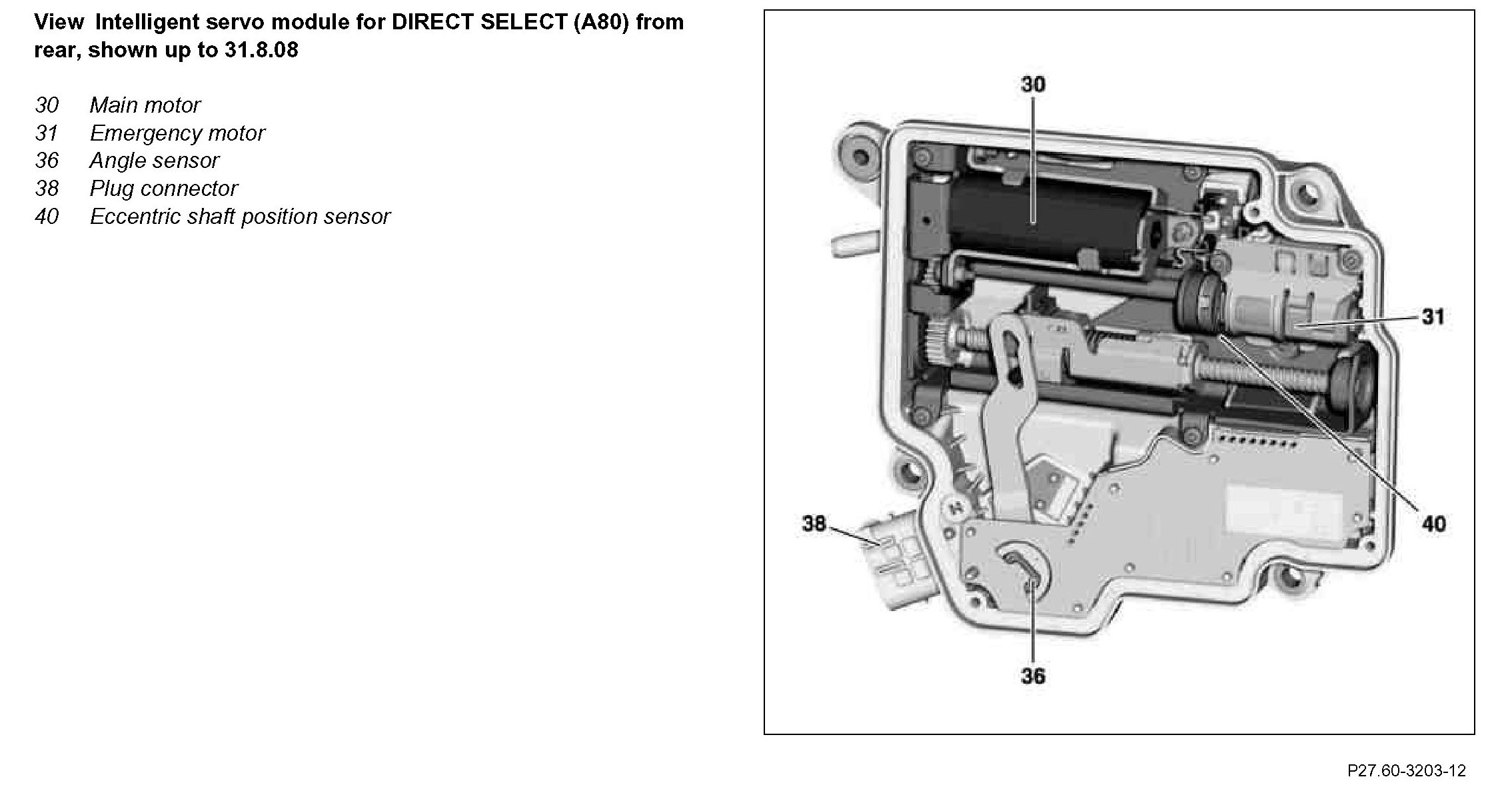

Component Identification:




Component Identification:
