GF27.10-P-0001-09AHZ Automatic Transmission (AT), Location of Hydraulic Components



GF27.10-P-0001-09AHZ Automatic transmission (AT), location of hydraulic components
- Transmission 722.902/903/904/906/907 [models 164.1]
- Transmission 722.902/903/904 [models 164.8]

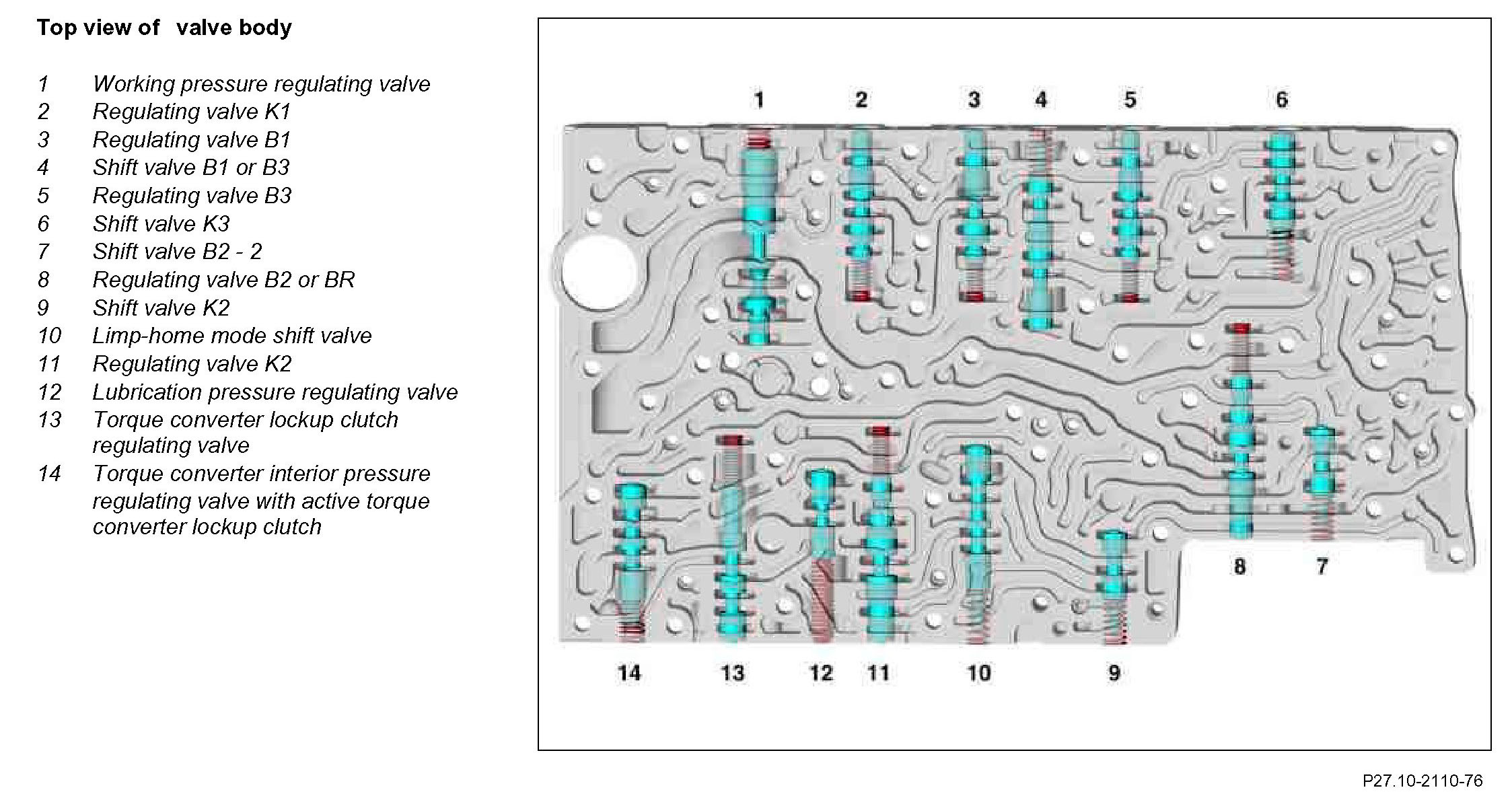

Component Identification:




Component Identification:
