AR82.62-P-8382CY Remove/Install Left / Right Rear Window Antenna Amplifier

AR82.62-P-8382CY Remove/Install Left / Right Rear Window Antenna Amplifier

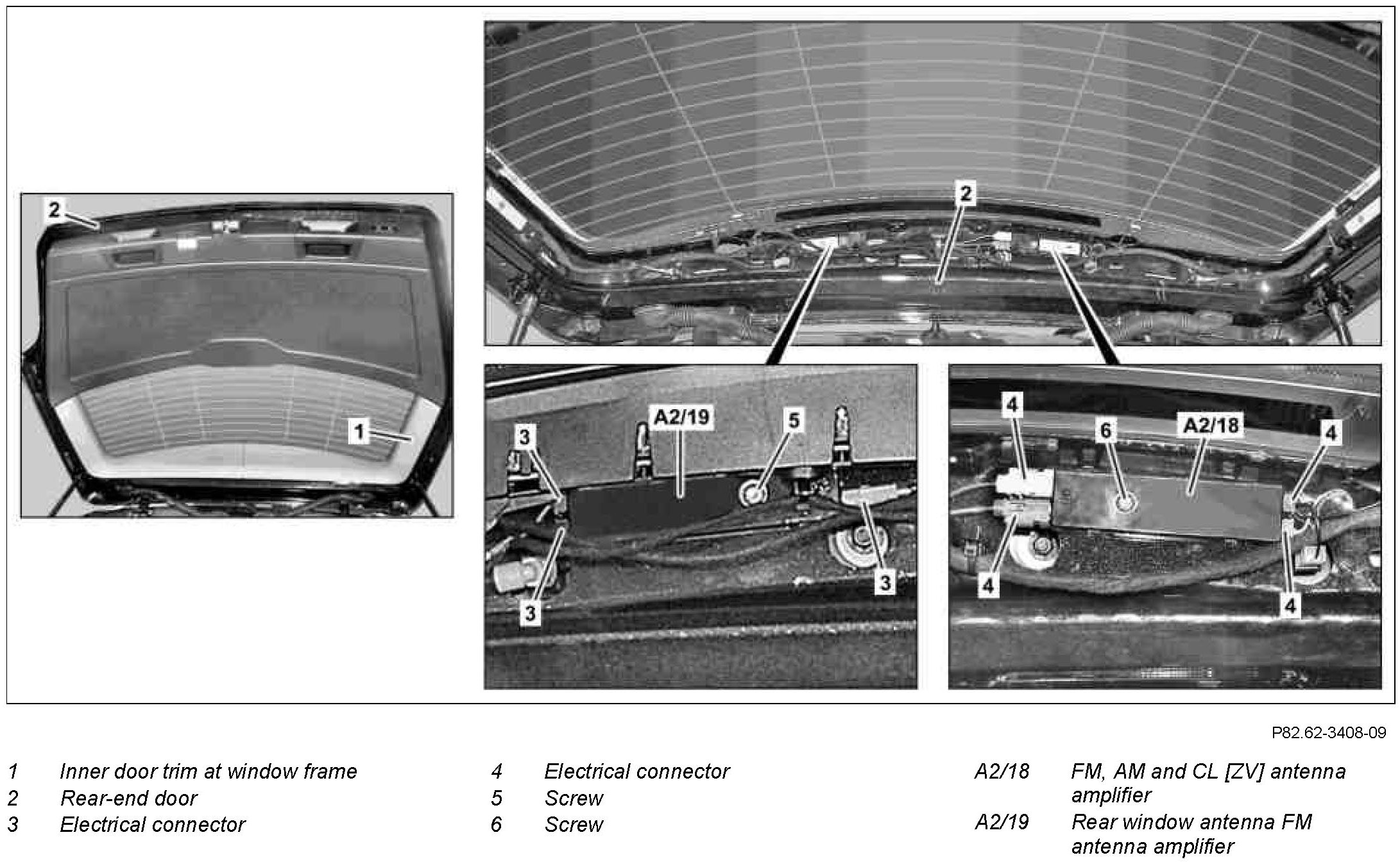

Component Identification:

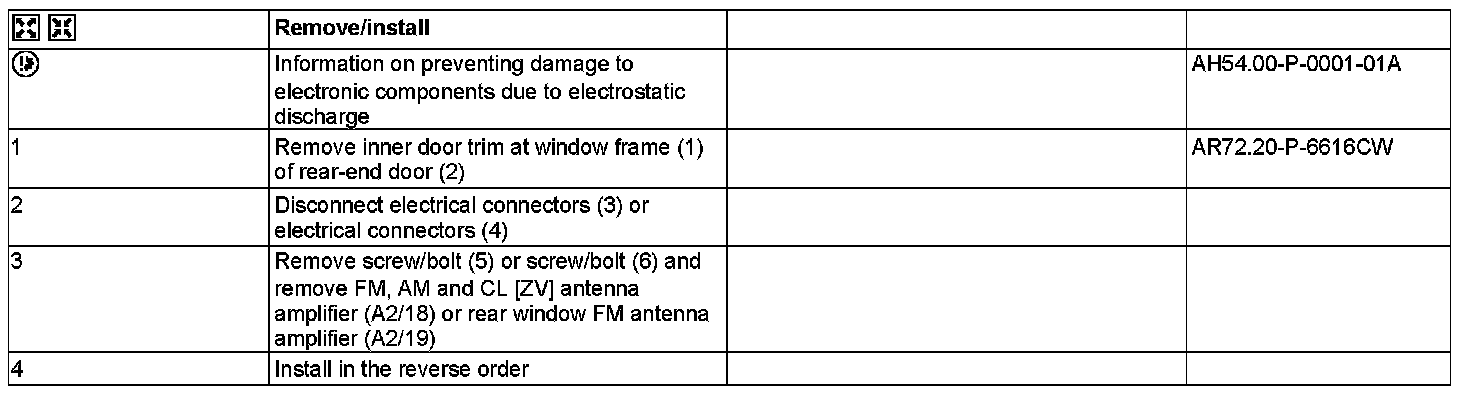

Steps 1 - 4:
