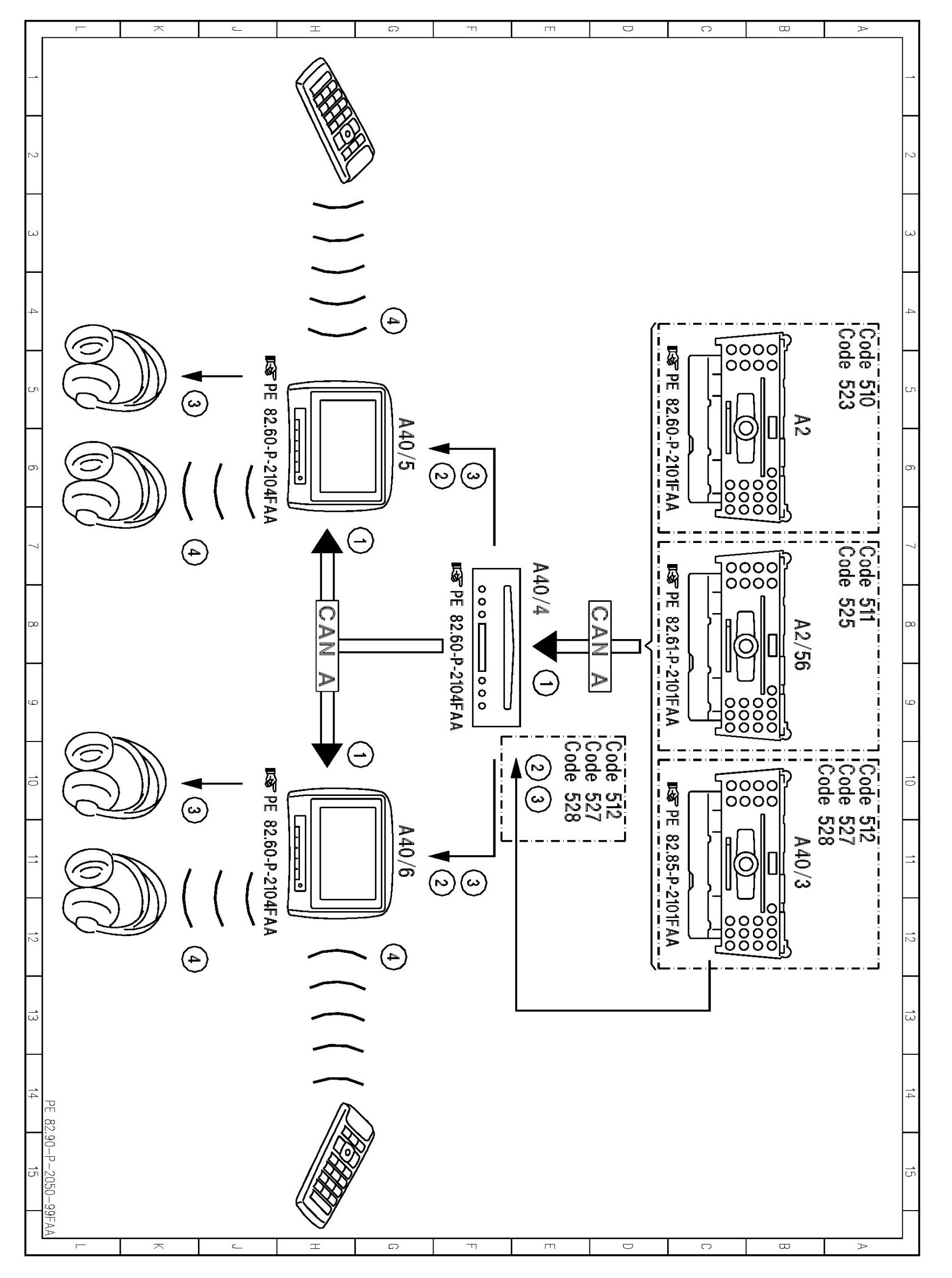

PE82.90-P-2050FAA Electrical Function Schematic For Rear Entertainment AUX Applications

PE82.90-P-2050FAA Electrical Function Schematic For Rear Entertainment AUX Applications

MODEL 204.9 /9
- with CODE (864) Rear entertainment system
- with CODE (866) Preinstallation for rear entertainment system























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
