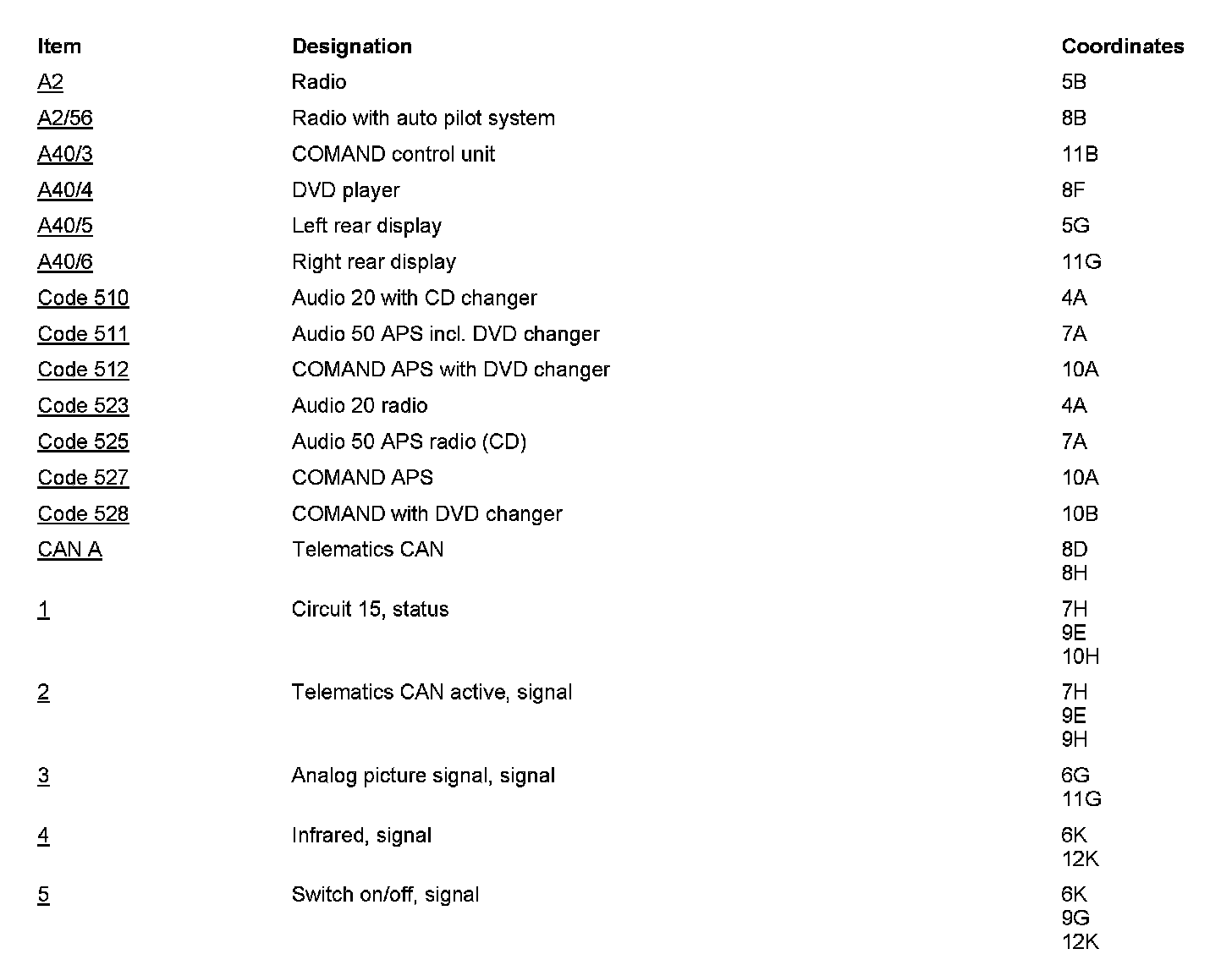

PE82.90-P-2052FAA Electrical Function Schematic For Rear Entertainment Switch On/Off Behavior and System Settings

PE82.90-P-2052FAA Electrical Function Schematic For Rear Entertainment Switch On/Off Behavior And System Settings

MODEL 204.9 /9
- with CODE (864) Rear entertainment system
- with CODE (866) Preinstallation for rear entertainment system























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
