AZ82.80-P-0003-02CWB Retrofit Wiring Harness For Tablet PC Mount

AZ82.80-P-0003-02CWB Retrofit Wiring Harness For Tablet PC Mount
- with CODE (866) Preinstallation for rear entertainment system





000 589 13 99 00
Wiring harness repair kit, basic





220 589 04 99 00
New passenger vehicle wiring harness repair kit





Connection scheme
4 Tablet PC mount
8 Wiring harness (right screen)
8.1 White 8-pin plug
8.2 White 8-pin connector
10 White 8-pin connector (right vehicle wiring harness)
N10/2 Rear SAM control unit with fuse and relay module
rt/gn Red/green line

Ensure that the wiring harnesses are not damaged by chafing or pinching. Otherwise the corresponding wiring harness must be replaced.
The following operation steps can be performed in the same manner on the left or right side of the vehicle. Clarification must be reached with the customer in advance regarding the side of the vehicle on which the Tablet PC mount (4) is to be installed.

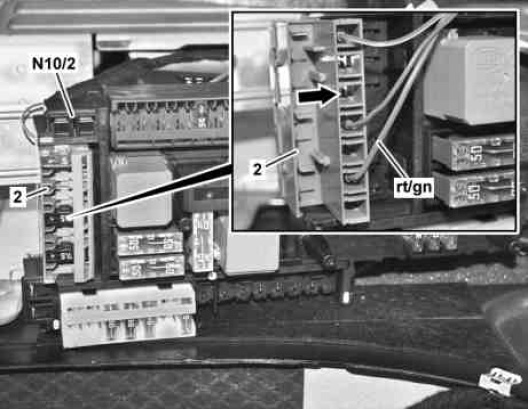

1 Remove green fuse carrier (2) from rear SAM control unit with fuse and relay module (N10/2) and turn over.
2 Remove red/green line (RD/GN) from contact cavity 6 of green fuse carrier (2).
The contact cavities are labeled.
3.1 Install red/green line (RD/GN) in contact cavity 3 (arrow) of green fuse carrier (2).
On vehicles without code (359) TELEAID emergency call system.
The contact cavities are labeled.

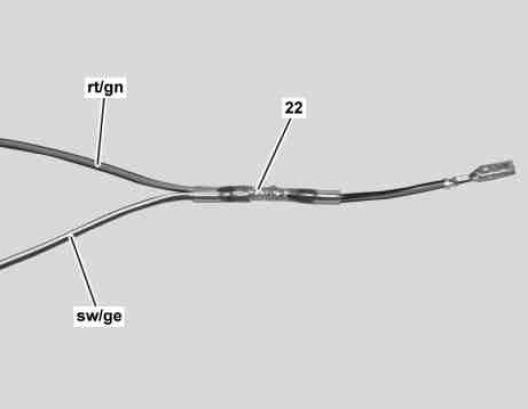

3.2 Connect red/green line (RD/GN) using solder connector (22) to black/yellow line (BK/YE).
Hot air blower gotis://E_15.54_12.0
On vehicles with code (359) TELEAID emergency call system.
The black/yellow line (BK/YE) is installed in contact cavity 3 of the green fuse carrier. The contact cavities are labeled.





4 Fit green fuse carrier (2) onto rear SAM control unit with fuse and relay module (N10/2).
5 Install a fuse with a 7.5 A rating in contact cavity 3 (arrow) of the green fuse carrier (2).
The contact cavities are labeled.





6 Connect white 8-pin connector (10) of vehicle wiring harness to white 8-pin plug (8.1) of wiring harness (8).
