AZ82.85-P-0005-04CYA Retrofit Mercedes-Benz InCar Internet Control Unit

AZ82.85-P-0005-04CYA Retrofit Mercedes-Benz InCar Internet Control Unit

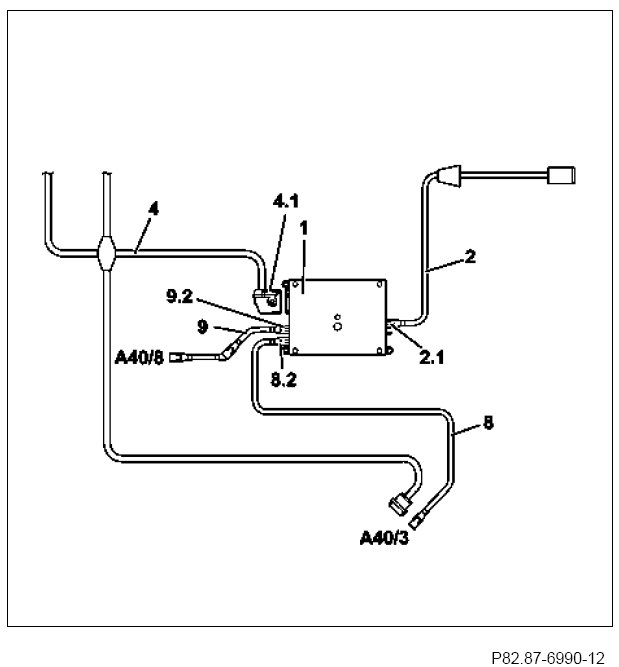

Connection scheme without code (518) Media interface






1 InCar Internet control unit
2 Connecting cable
2.1 Blue, 1-pin coupling for connecting cable
4 InCar Internet adapter wiring harness
4.1 Black 18-pin coupling
8 Low voltage differential signal (LVDS) head unit wiring harness
8.2 LVDS head unit wiring harness coupling
9 LVDS display wiring harness
9.2 LVDS display wiring harness coupling
A40/3 COMAND control unit
A40/8 Audio/COMAND display

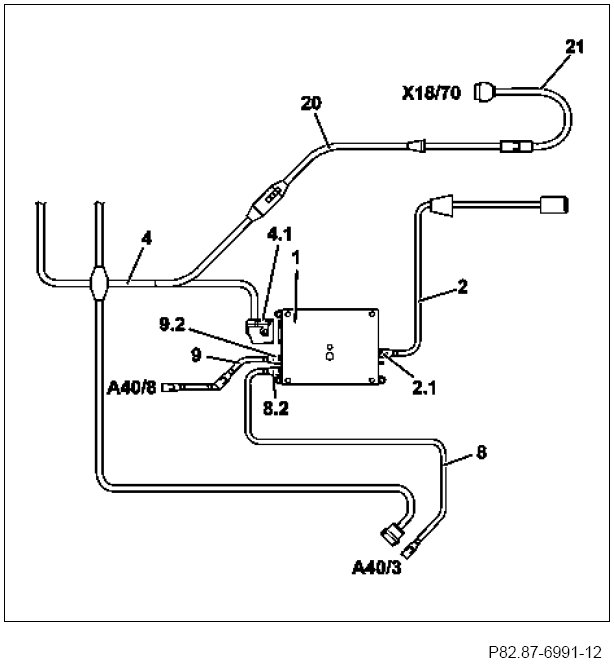

Connection scheme with code (518) Media interface






1 InCar Internet control unit
2 Connecting cable
2.1 Blue, 1-pin coupling for connecting cable
4 InCar Internet adapter wiring harness
4.1 Black 18-pin coupling
8 Low voltage differential signal (LVDS) head unit wiring harness
8.2 LVDS head unit wiring harness coupling
9 LVDS display wiring harness
9.2 LVDS display wiring harness coupling
20 Media interface adapter line
21 Media interface electrical connector adapter line
A40/3 COMAND control unit
A40/8 Audio/COMAND display
X18/70 Media interface electrical connector

Routing diagram without code (518) Media interface






1 InCar Internet control unit
2 Connecting cable
A40/3 COMAND control unit
A40/8 Audio/COMAND display

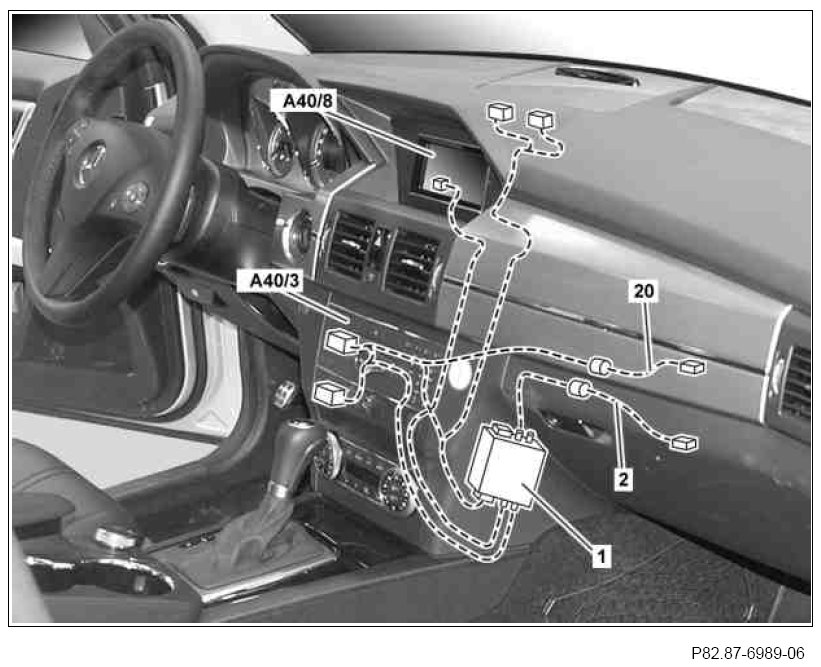

Routing diagram with code (518) Media interface






1 InCar Internet control unit
2 Connecting cable
20 Media interface adapter line
A40/3 COMAND control unit
A40/8 Audio/COMAND display

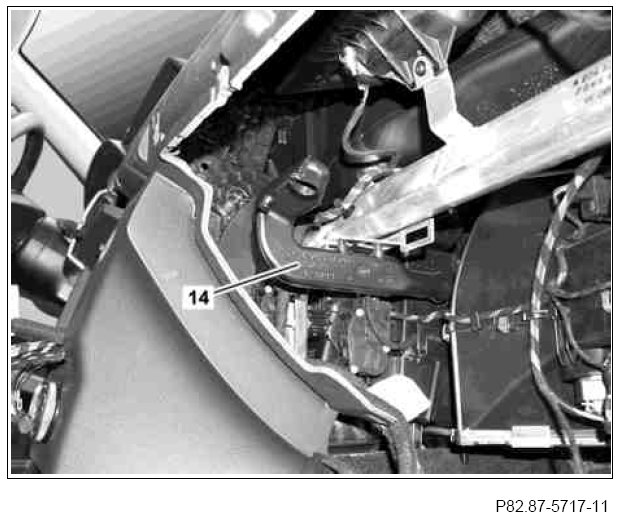

1 Remove air duct (14)

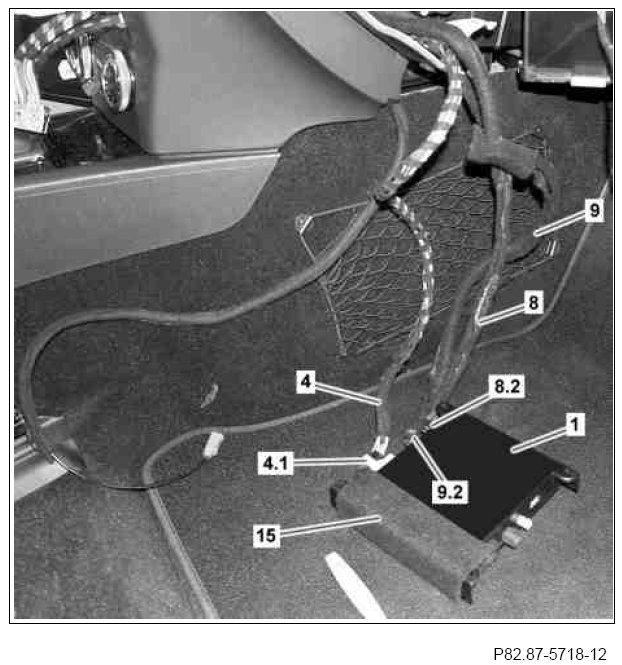

2 Connect black 18-pin coupling (4.1) of InCar Internet adapter wiring harness (4), LVDS display wiring harness coupling (9.2) of LVDS display wiring harness (9) and LVDS head unit wiring harness coupling (8.2) of LVDS head unit wiring harness (8), as shown, to InCar Internet control unit (1).
3 Attach felt tape (15), as shown, onto InCar Internet control unit (1).

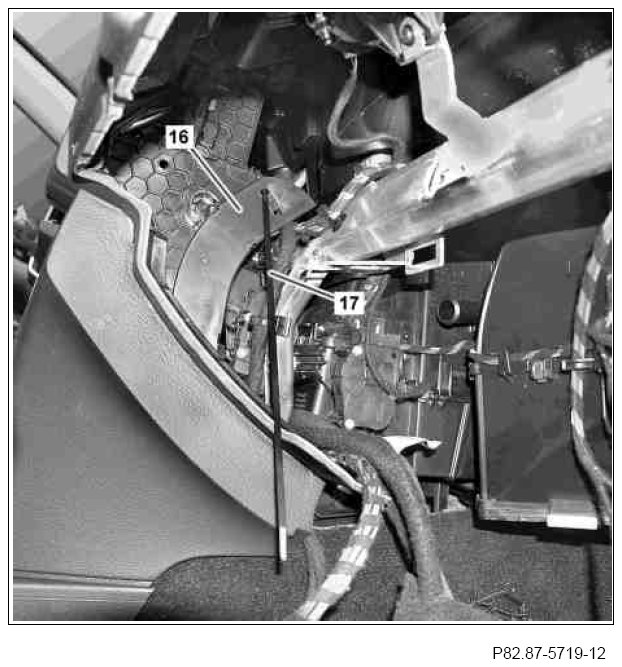

4 Route cable tie (17) through opening on cable duct (16).
The cable tie (17) is then used to fasten the InCar Internet control unit.

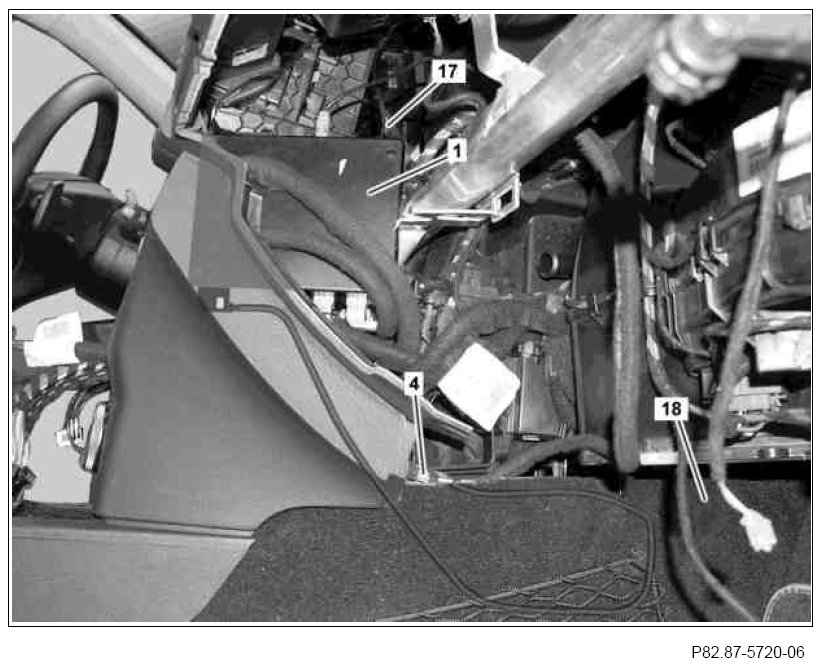

5 Install InCar Internet control unit (1), as shown, and fix in place using previously positioned cable tie (17).
Guide cable tie (17) through attachment point at InCar Internet control unit (1) and tighten.
The InCar Internet control unit (1) must be fixed in place such that any noise development is prevented.

6 Form loops with excess length of InCar Internet adapter wiring harness (4) behind passenger-side floor covering (18).

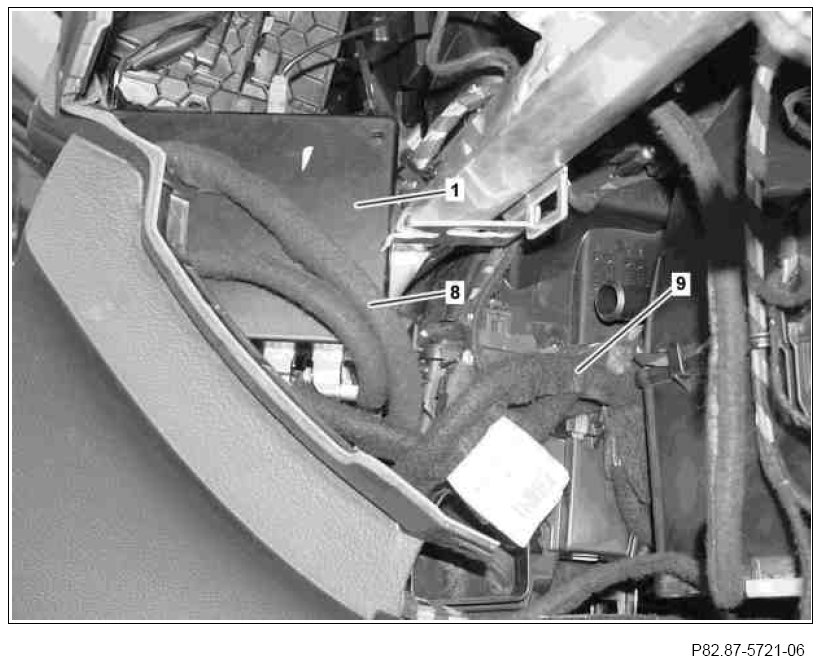

7 Form loops with LVDS display wiring harness (9) and LVDS head unit wiring harness (8), as shown, next to InCar Internet control unit (1).
8 Place glove box into footwell on passenger-side.

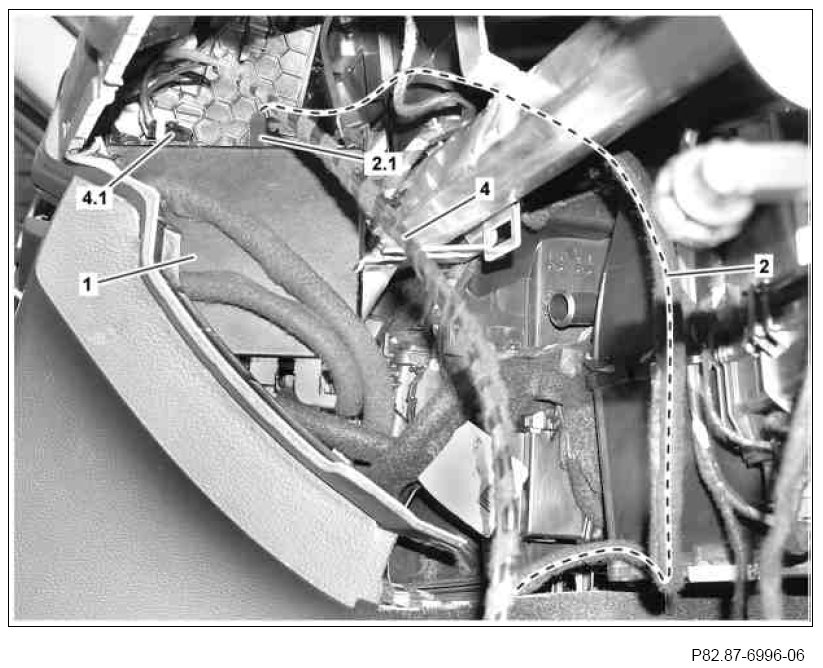

9 Connect connecting cable black 18-pin coupling (4.1) of connecting cable (4) to InCar Internet control unit (1).
10 Connect connecting cable blue 1-pin coupling (2.1) of connecting cable (2) to InCar Internet control unit (1).

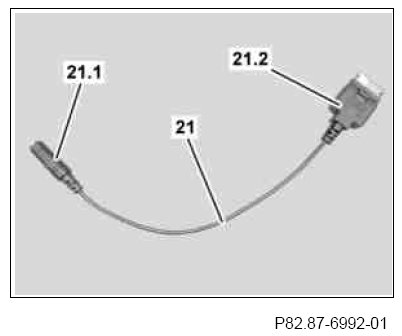

11 Connect black 1-pin coupling (21.1) of media interface electrical connector adapter line (21) to intelligent head unit adapter wiring harness.
On vehicles with code (518) Media Interface.

12 Connect black 24-pin plug (21.2) to media interface electrical connector.
On vehicles with code (518) Media Interface.

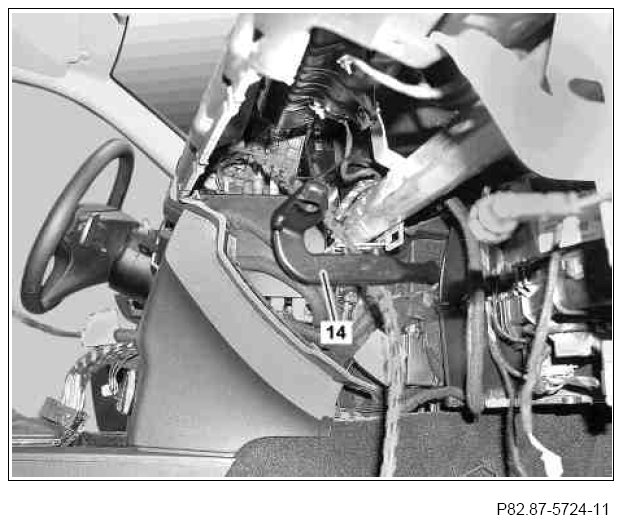

13 Install air duct (14).

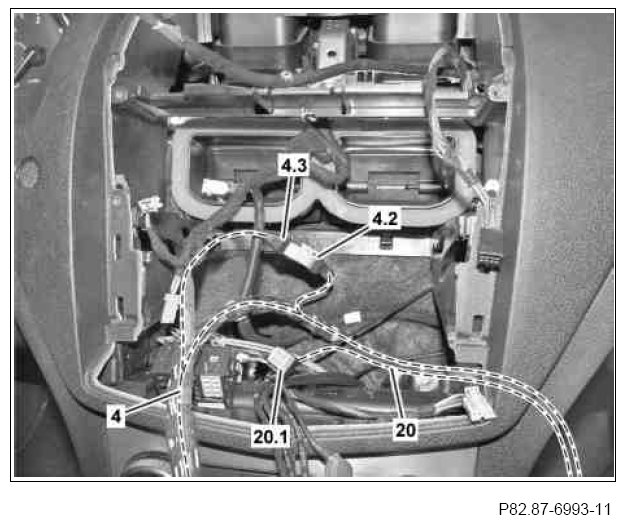

14 Disconnect white 4-pin coupling (4.3) and white 4-pin plug (4.2) of InCar Internet adapter wiring harness (4).
On vehicles with code (518) Media Interface.

15 Connect white 4-pin coupling (4.3) to white 4-pin plug (20.1) of media interface adapter line (20).
On vehicles with code (518) Media Interface.
