Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2012
>>
GLK 350 4MATIC (204.987) V6-3.5L (272.971)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Description and Operation
>>

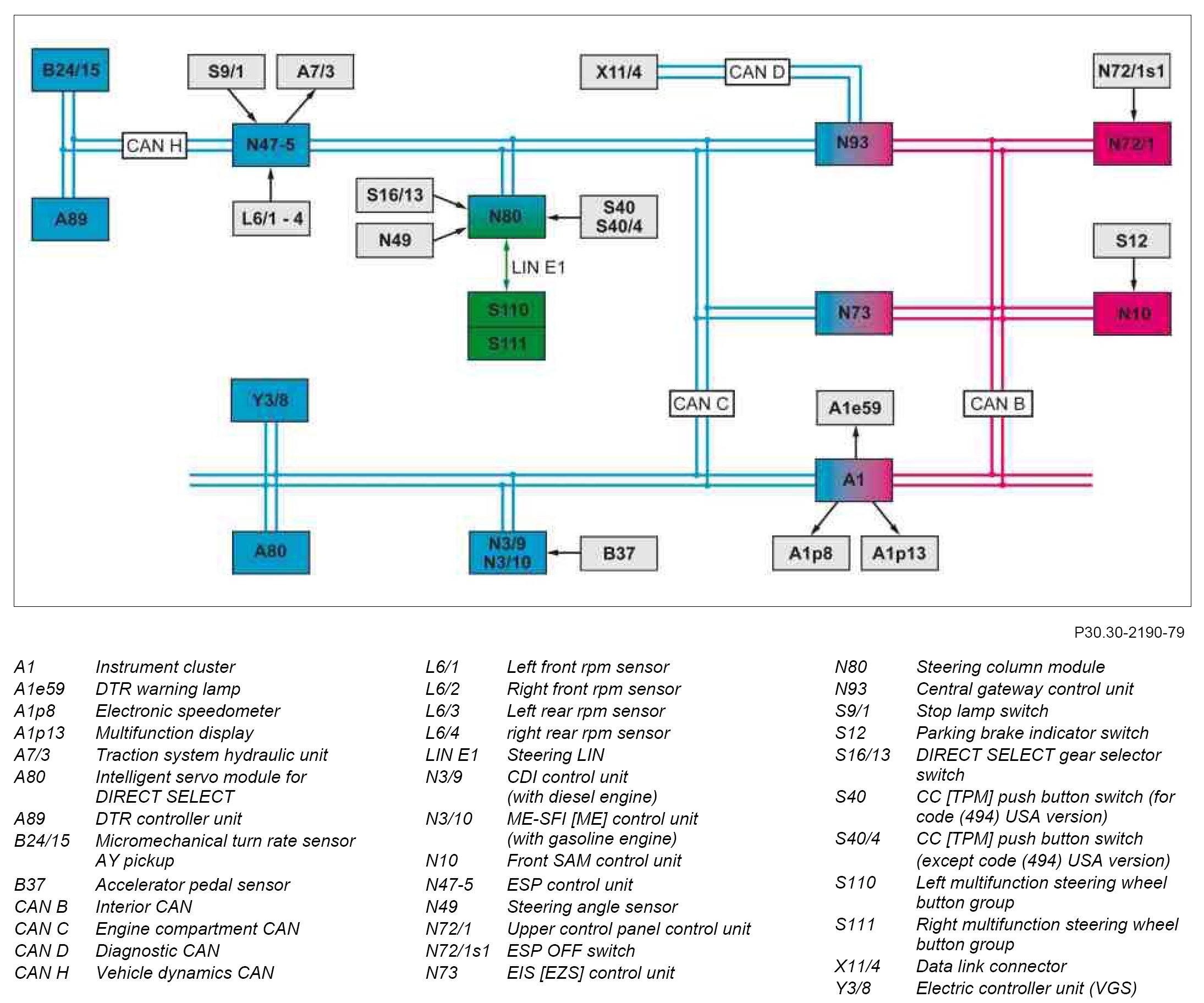

GF30.30-P-0005-05GQ Distronic Block Diagram
GF30.30-P-0005-05GQ Distronic Block Diagram
GF30.30-P-0005-05GQ DISTRONIC Block Diagram
-
with CODE (219) Distronic (DTR)
