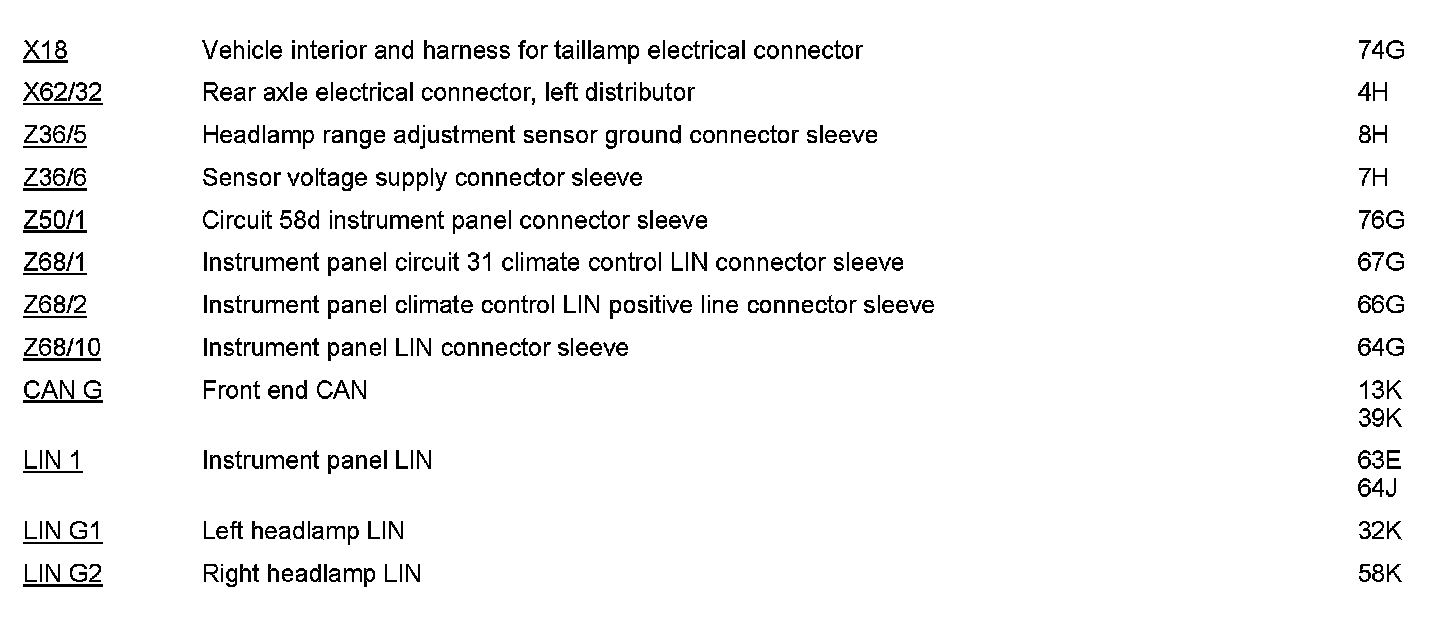

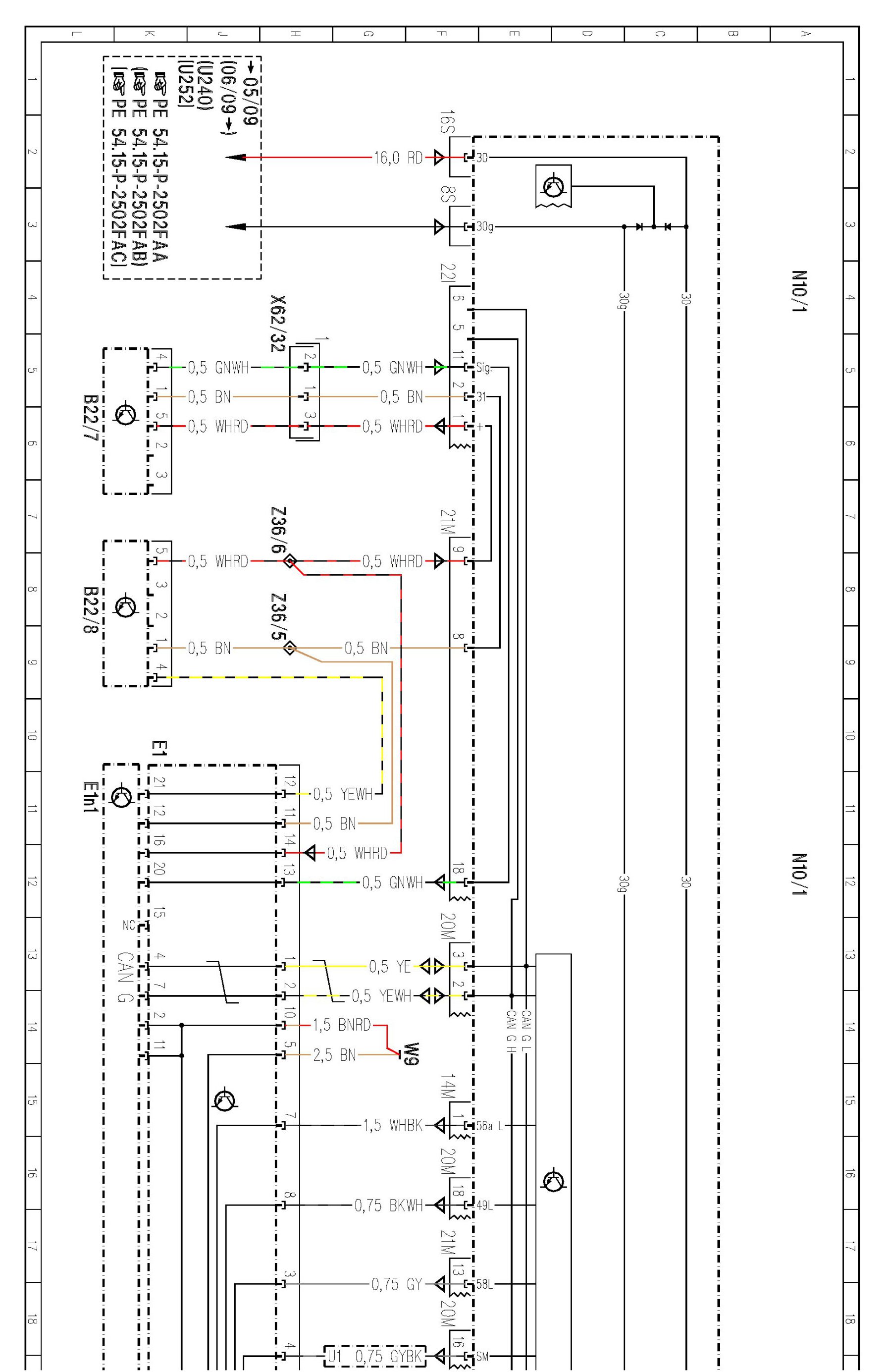

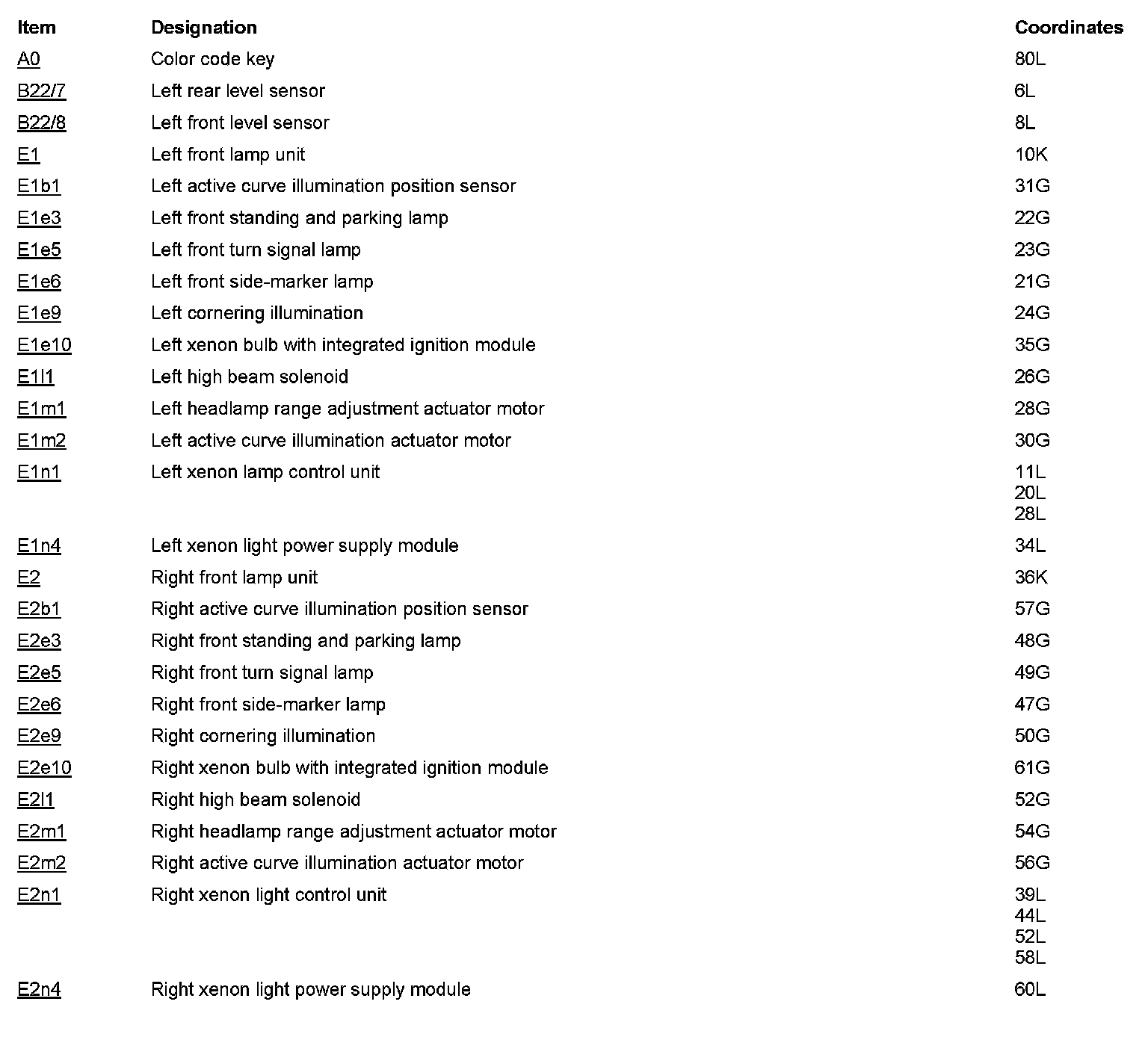

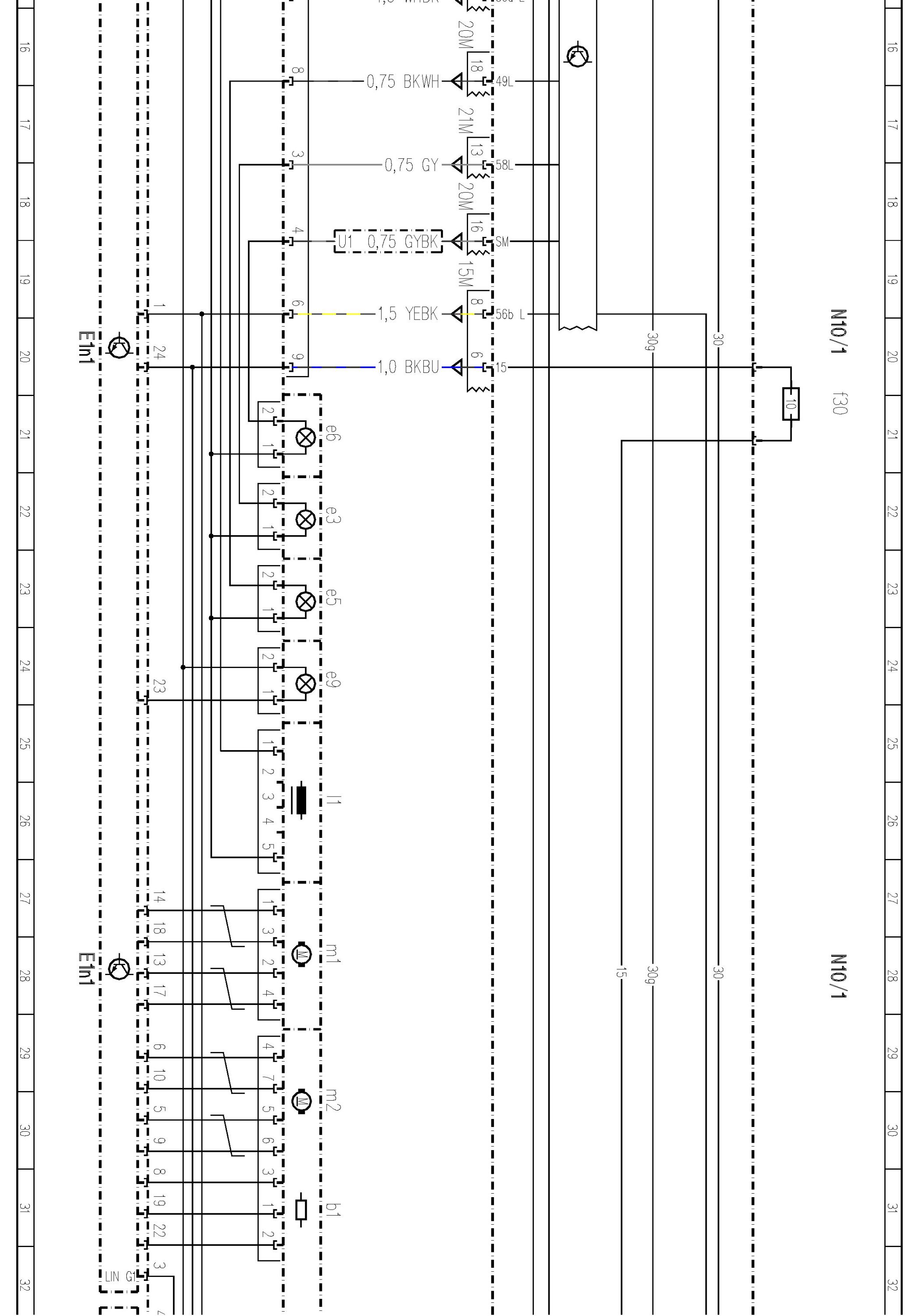

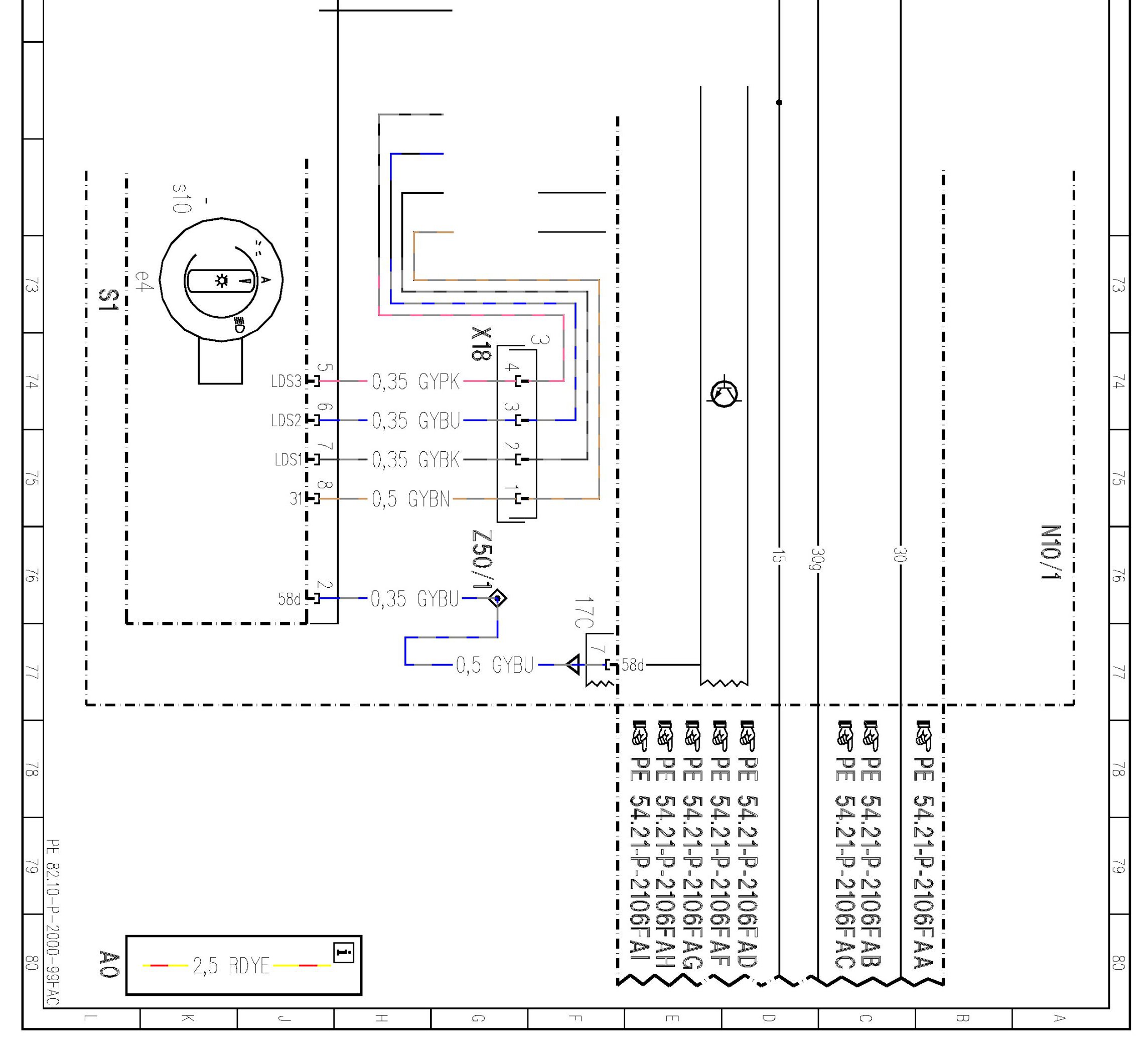

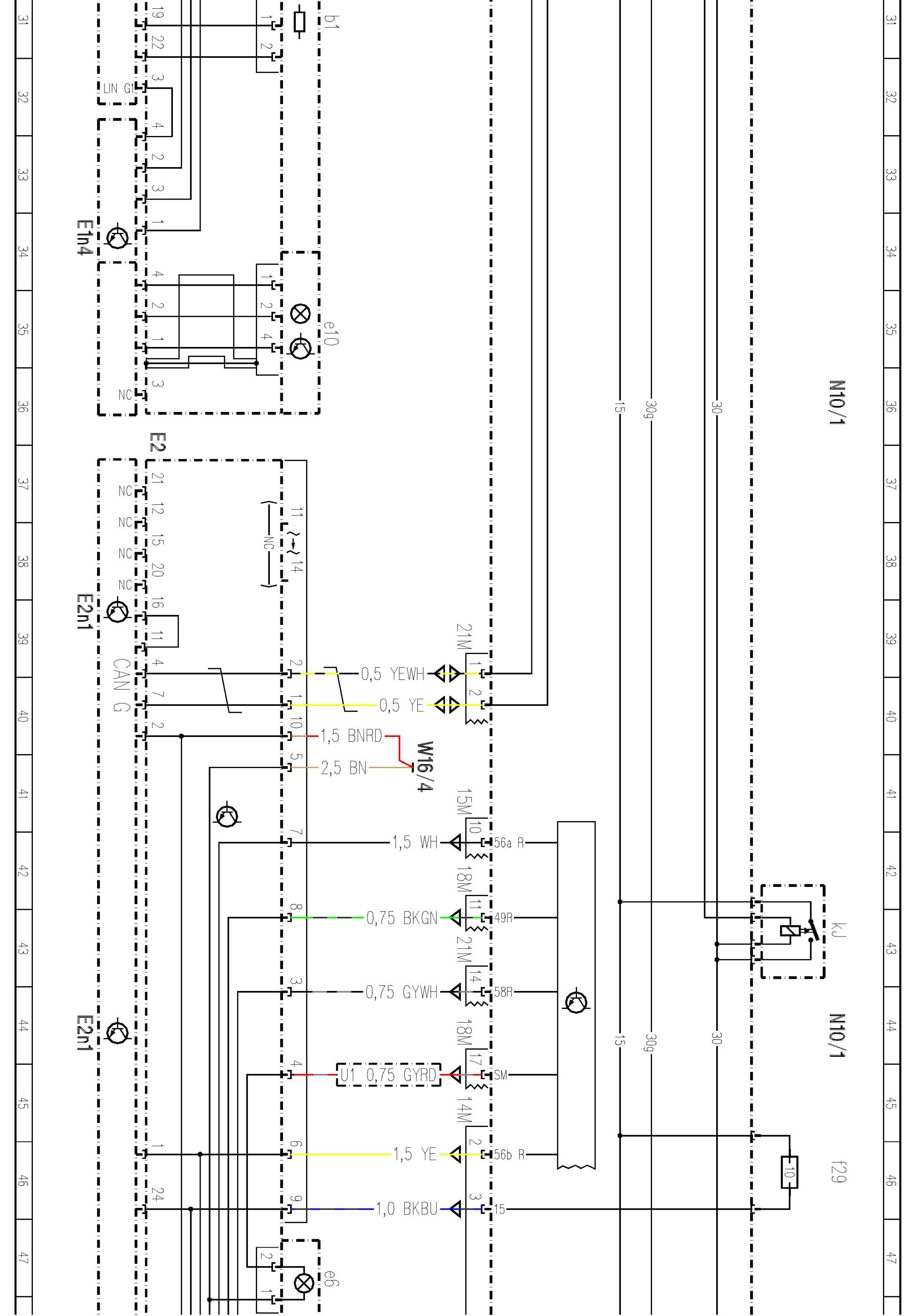

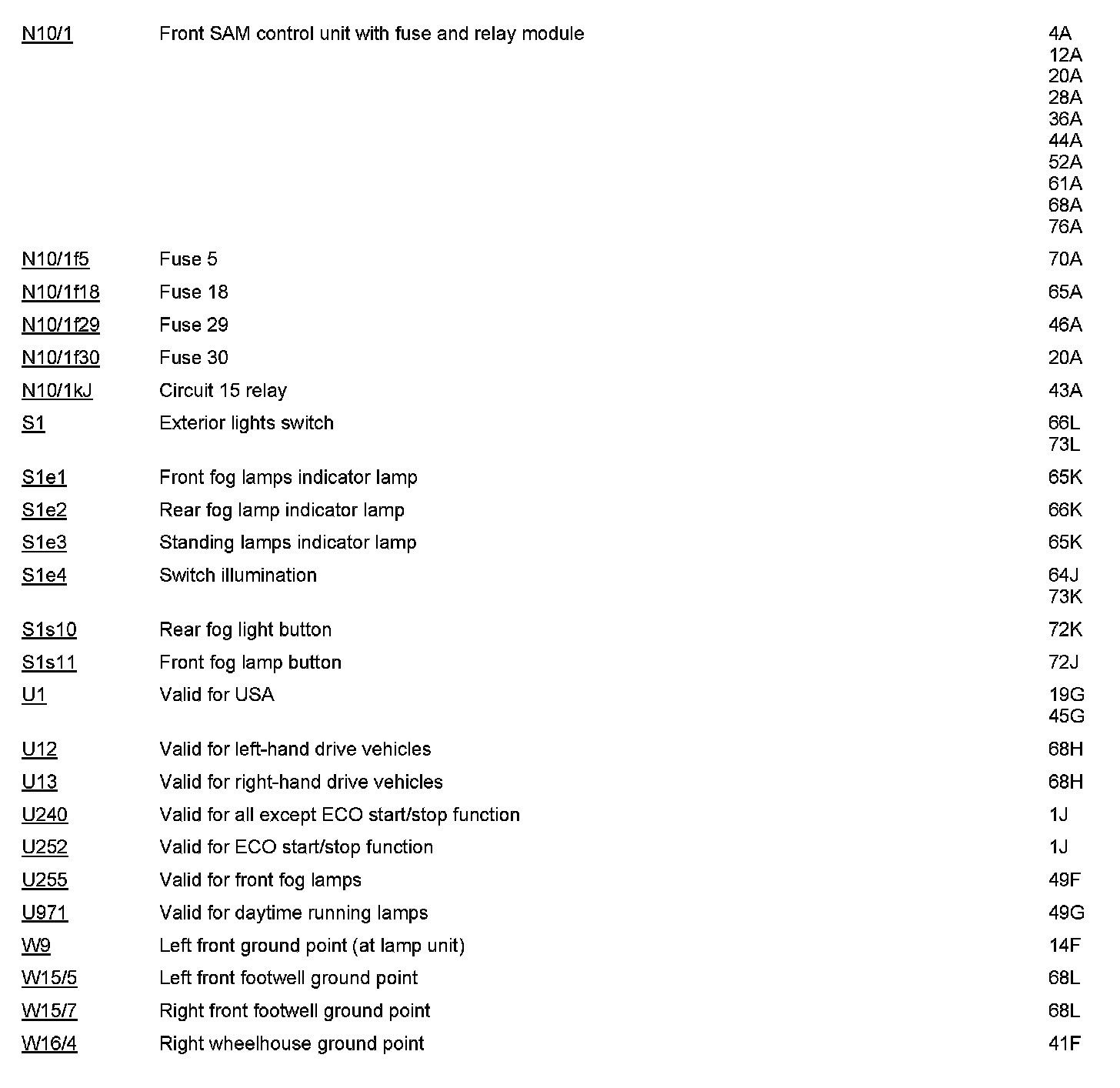

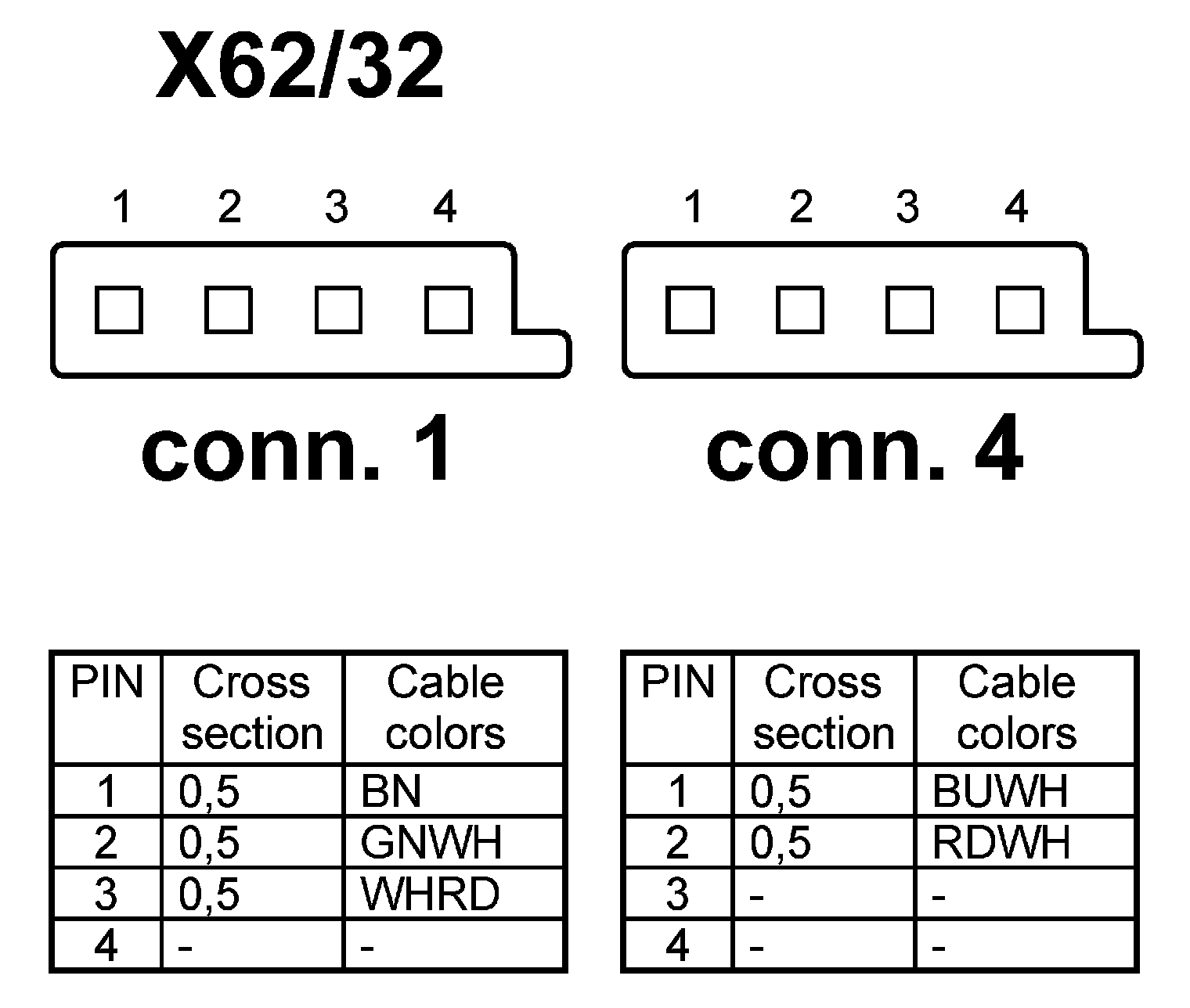

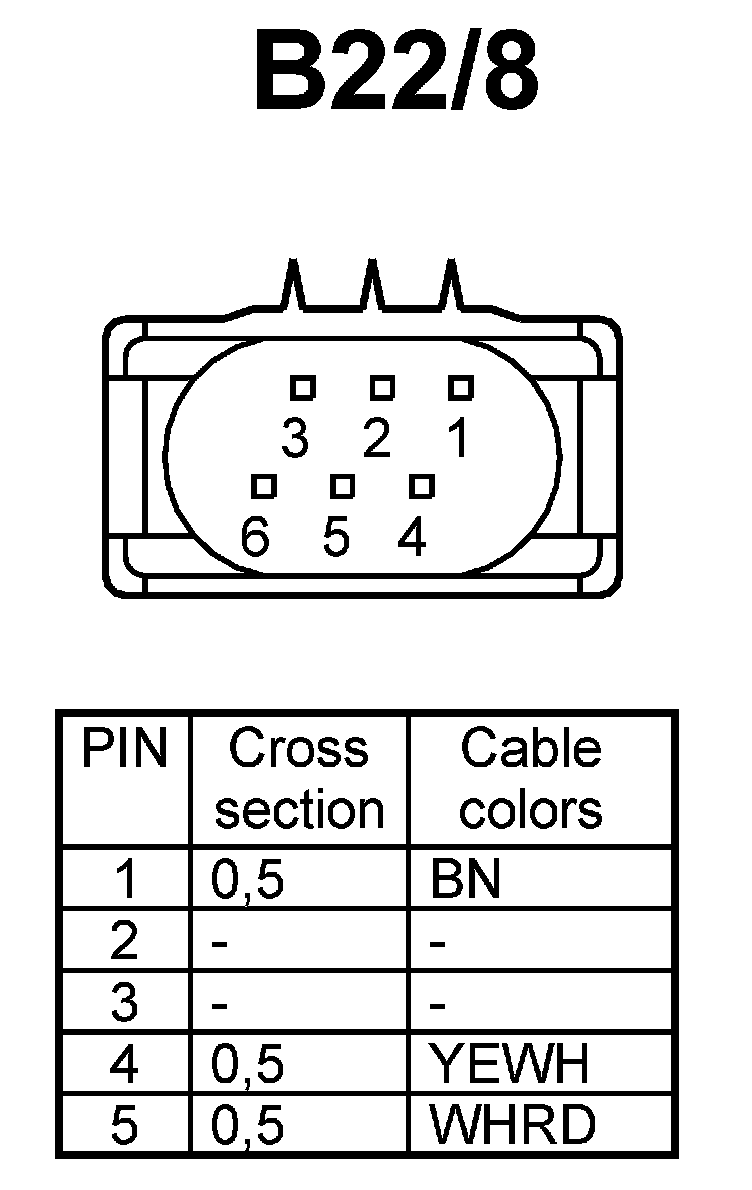

PE82.10-P-2000FAC Exterior Lights Wiring Diagram

PE82.10-P-2000FAC Exterior Lights Wiring Diagram

MODEL 204.9
- with CODE (614) Bi-xenon headlamp unit
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination
- with CODE (618) Bi-xenon headlamp
- with CODE (621) Intelligent Light System (left-hand traffic)

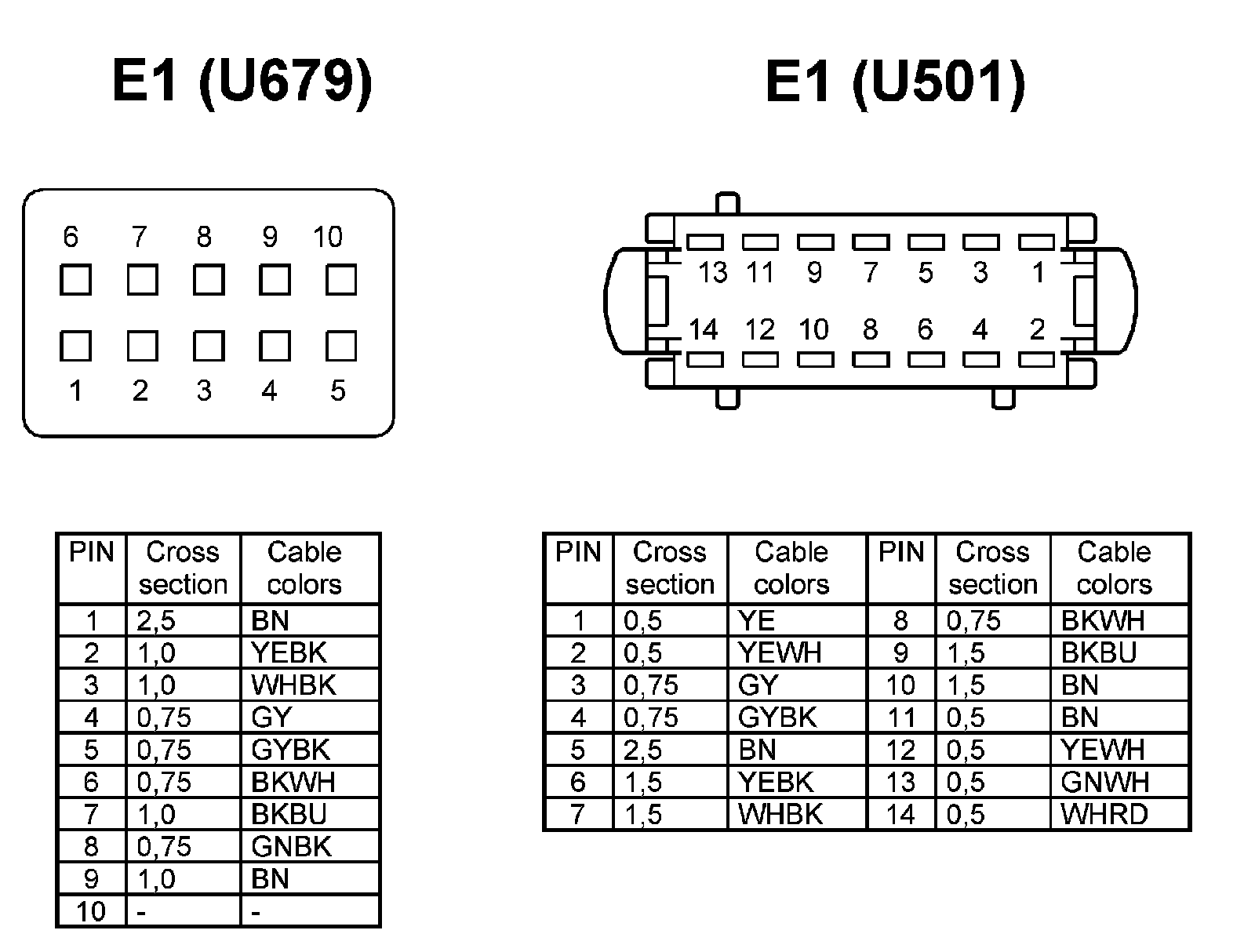

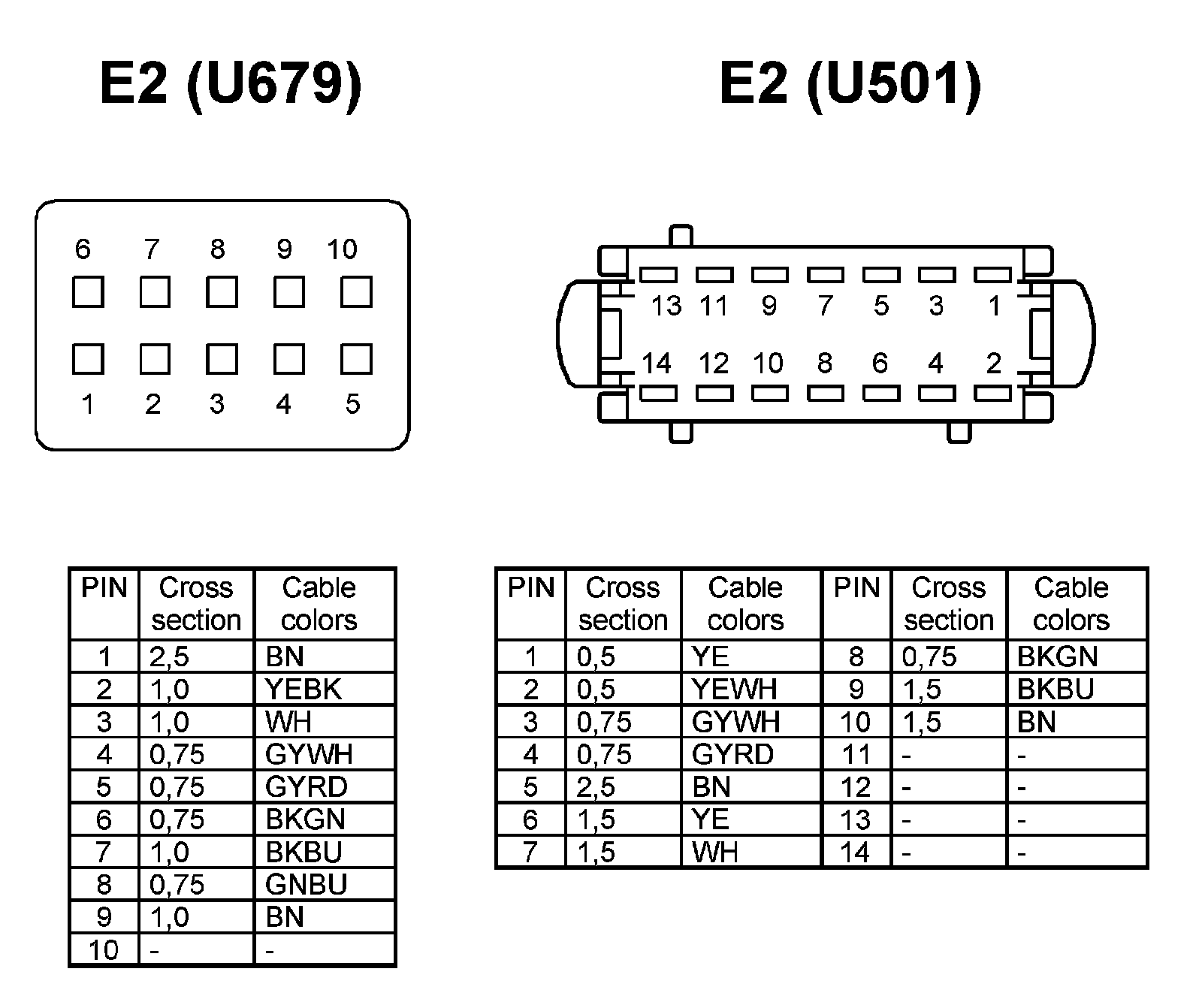

- with CODE (622) Intelligent Light System (right-hand traffic) front lamp units, E1 and E2



































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
