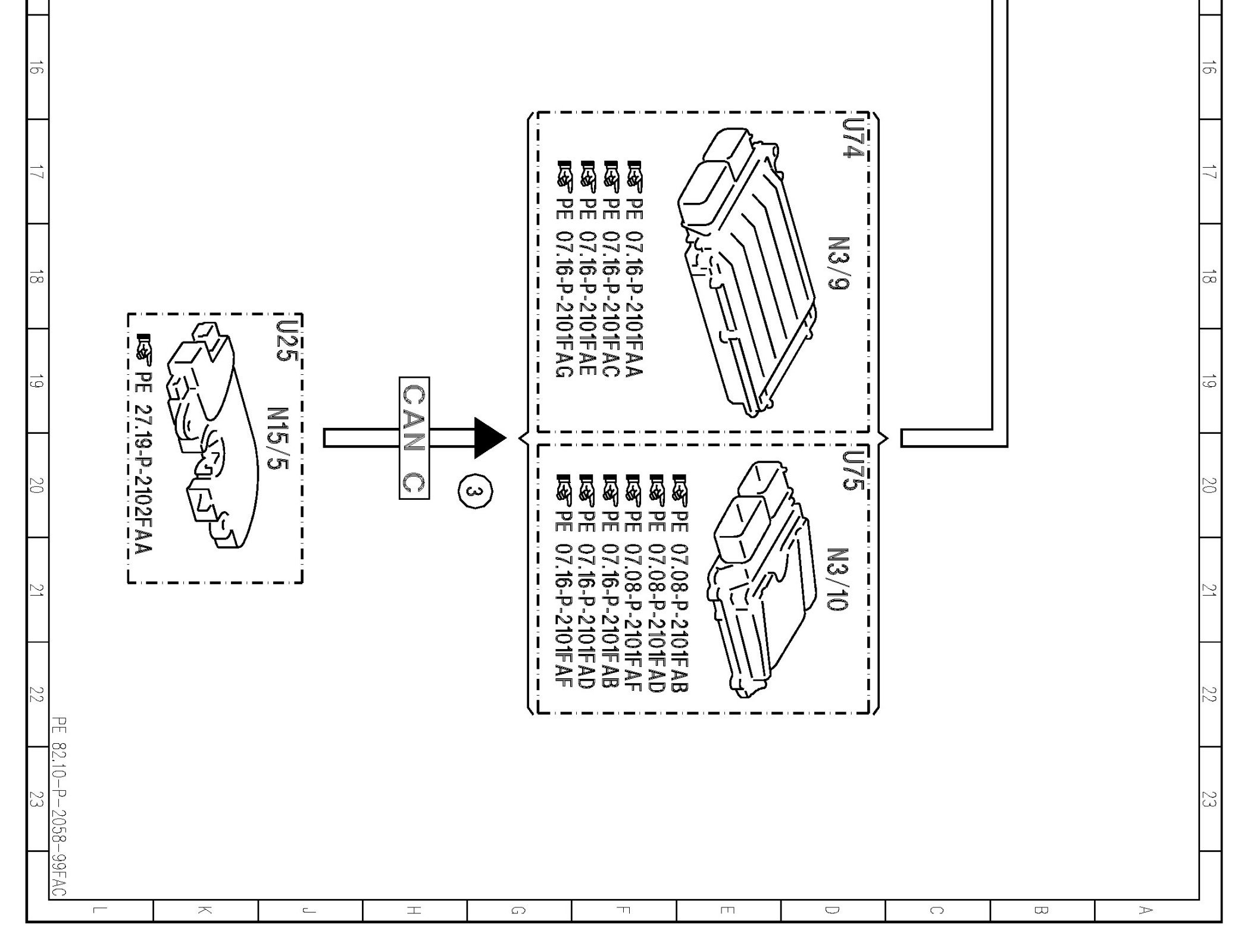

PE82.10-P-2058FAC Electrical Function Schematic For Backup Light Actuation

PE82.10-P-2058FAC Electrical Function Schematic For Backup Light Actuation

MODEL 204.9











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
