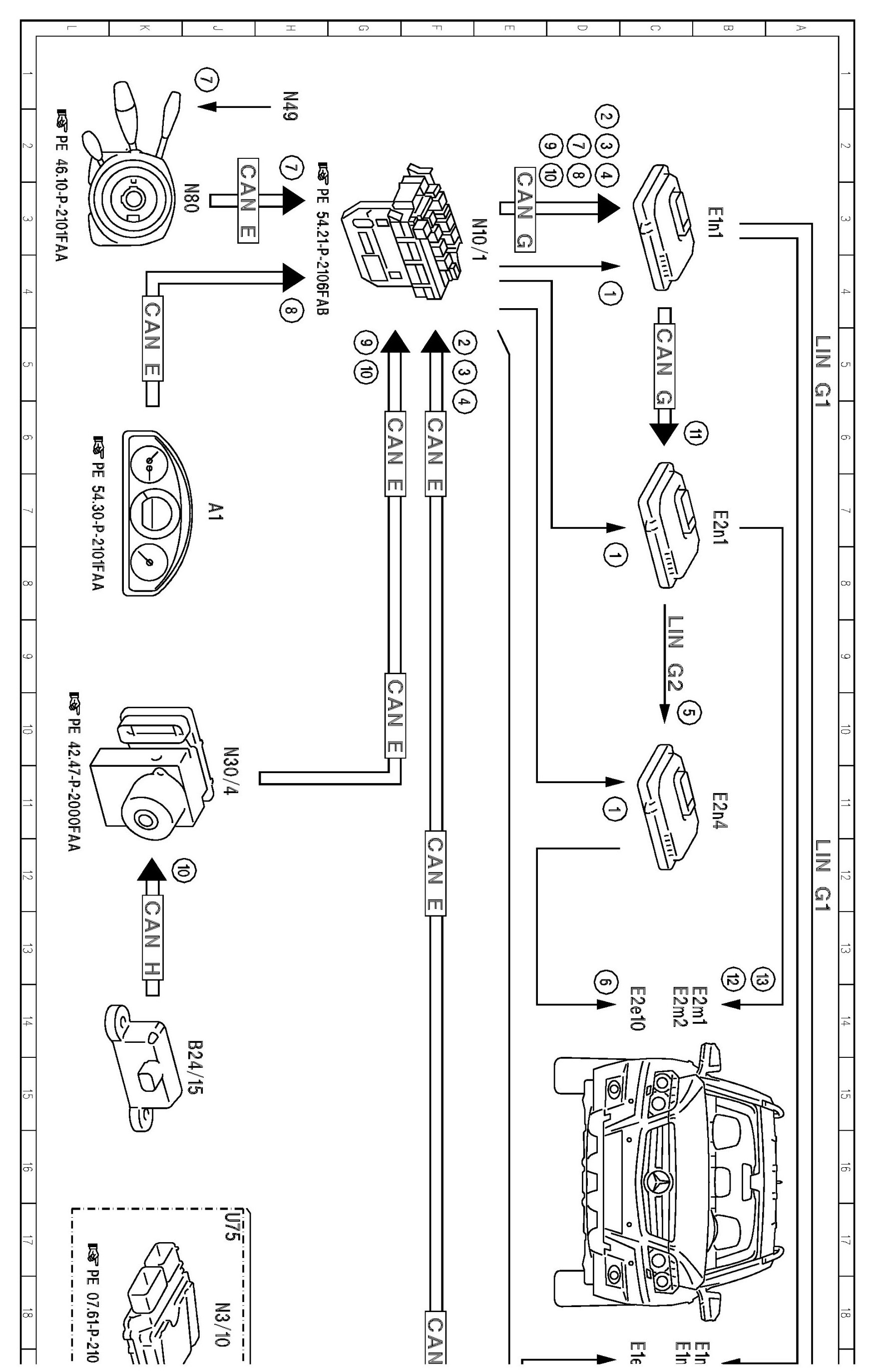

PE82.10-P-2063FAB Electrical Function Schematic, Additional Functions, Driving Lights Actuation

PE82.10-P-2063FAB Electrical Function Schematic, Additional Functions, Driving Lights Actuation

MODEL 204.9
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)

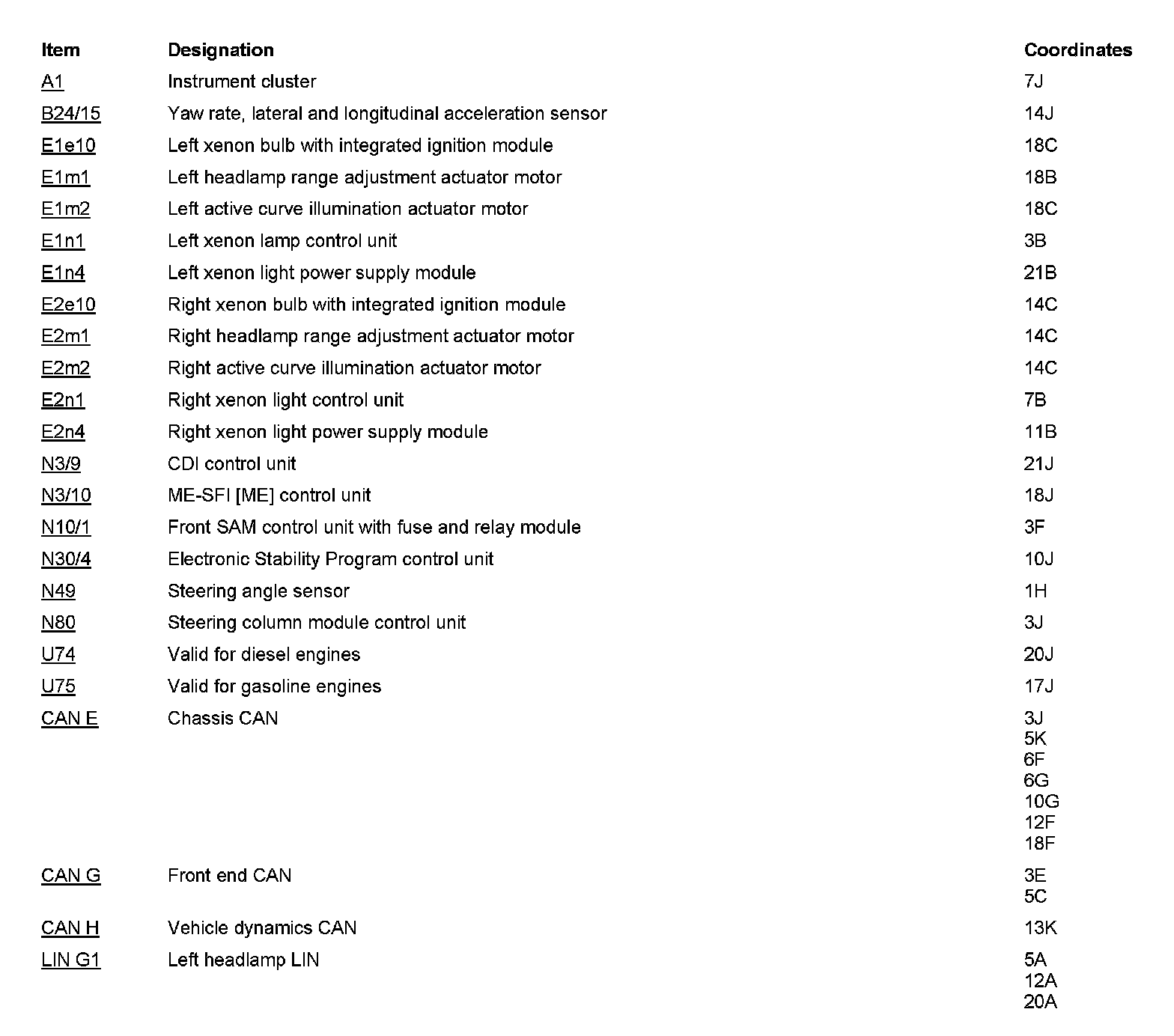

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
